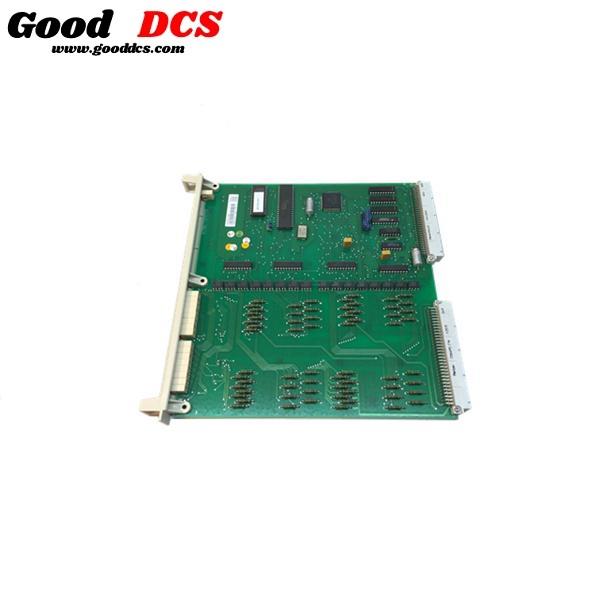

ABB IMASO11Harmony rack I/OAnalog Output Module

Harmony rack I/O incorporates a variety of input and output devices to interface process signals to the Symphony Enterprise Management and Control System. Analog input modules interface field inputs such as pressure and flow transmitter signals, thermocouple (TC) inputs, and resistive temperature device (RTD) inputs. Analog output modules provide output signals to adjust final control elements such as control valves, pumps, positioners, actuators, etc. An analog I/O module consists of a single printed circuit board that occupies one slot in a module mounting unit (MMU). In general, jumpers and switches on the printed circuit board and jumpers and dipshunts on the termination unit configure the module and its I/O channels. A cable connects the I/O module to its termination unit. The physical connection points for field wiring are on the termination unit.

The IMASO11 Analog Output module processes up to 14 analog control outputs for a Harmony controller. The controller utilizes function codes 149 (analog output group) to configure and access the module output channels. Each channel can be individually programmed for the following output types:

4 to 20 milliampere.

1 to 5 VDC.

Each output reads back the signal to the field to insure accurate operation and eliminate the need to calibrate outputs.

Specifications
