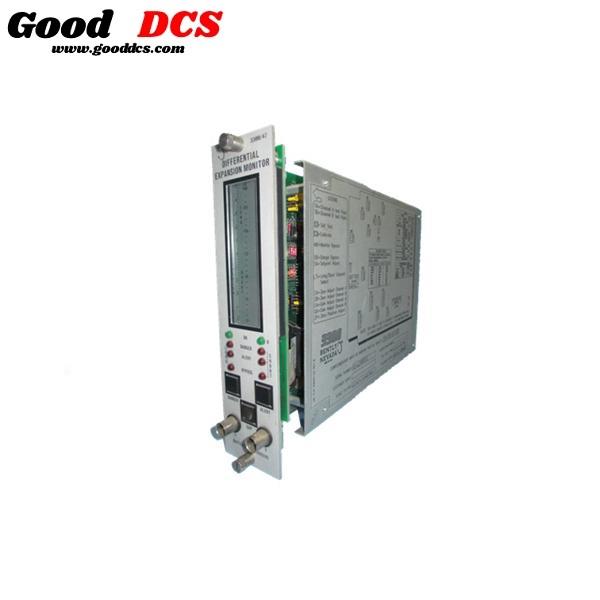

Bently Nevada 3500/45 Position Monitor Module 140072-04
Description
The 3500/45 Position Monitor is a 4-channel monitor that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers.
It conditions these inputs and compares the conditioned signals with userprogrammable alarms. The 3500 Configuration Software can program each channel of the 3500/45 to perform any of the following functions:
-Axial (thrust) Position
-Differential Expansion
-Standard Single Ramp Differential Expansion
-Non-standard Single Ramp Differential Expansion
-Dual Ramp Differential Expansion
-Complementary Differential Expansion
-Case Expansion
-Valve Position
The primary purpose of the 3500/45 monitor is to provide: 1. Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms. 2. Essential machine information for both operations and maintenance personnel. Each channel, depending on configuration, typically conditions its input signal into various parameters called “proportional values”. Alert setpoints can be configured for each active proportional value and Danger setpoints can be configured for any two of the active proportional values.
Ordering Information
The 3500/33 requires 3500 Rack Configuration software, version 3.3 or later
The 3500/33 requires 3500 Data Acquisition software, version 2.40 or later
The 3500/33 requires 3500 Data Display software, version 1.40 or later
When used with a 3500/93 LCD Display module, the 3500/93 will require firmware revision P or later.
When used with a 3500/94 VGA Display module, the 3500/94 will require firmware revision C or later
