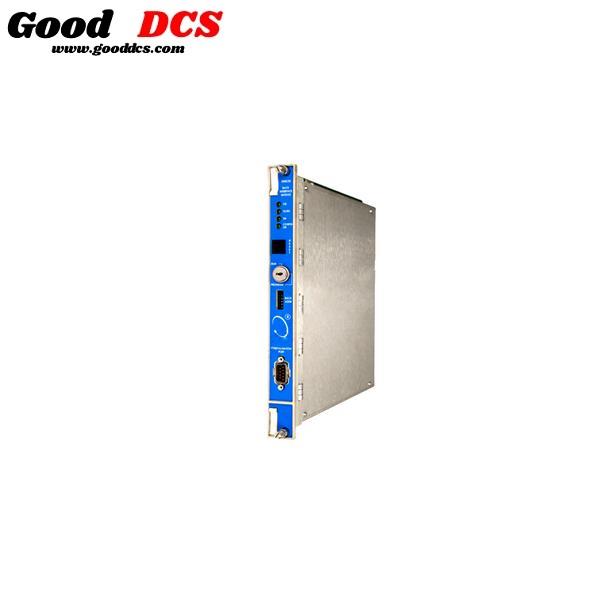

Bently Nevada 3500/20 125768-01I/O Module For 3500 Monitor System
Overview
Bently Nevada 125768-01 is I/O module ofRack Interface Module3500/20. The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison." The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentof the information of the other two monitors, it will flag that the monitor is in error and place an event in the System Event List.
Details
| Spares | Description |
| 125744-02 | Standard Rack Interfac Module |
| 125744-01 | TMR Rack Interface Module |
| 135031-01 | RIM I/O Module with Modem Interface |
| 125768-01 | RIM I/O Module with RS232/RS422 Interface |
| 125760-01 | Data Manager I/O Module |
|
128755-01 |
Firmware IC (for PWA 125744-01 Rev P or later |
| 129768-01 | RIM Operation and Maintenance Manual |
