GE Fanuc IC693ALG221 Analog Current Input Module

Description

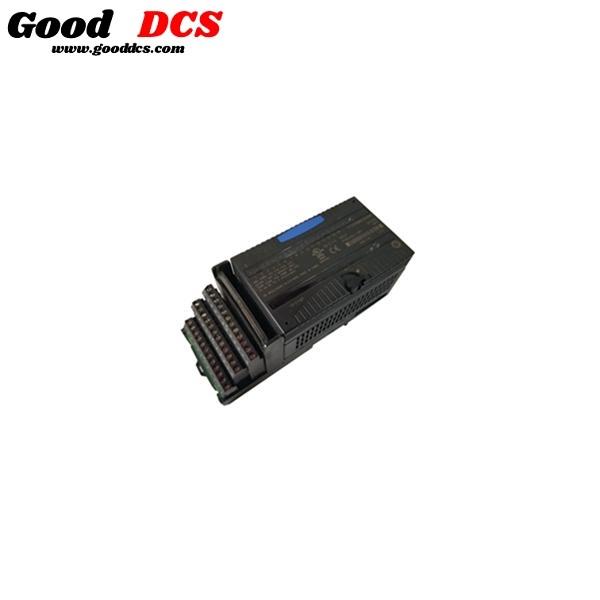

IC200MDL241 is a VersaMax AC Input Module with 16 points.This specific discrete input module has positive logic or sourcing type inputs. This means they will receive current from AC input devices and then return the current on the common. To accomplish this, input devices are connected between the input and common terminals. The IC200MDL241 provides 16 bits of discrete input data. Power for this module is derived from the backplane with the intelligent processing performed from the CPU or NIU. Each module comes standard with LED indicators for on/off state for each point on input and the OK indicator for backplane power being present.

When installing theIC200MDL241module, make sure to carefully inspect all aspects of the module. If damage is found make note and request a replacement part. Placing a damaged unit into a CPU can cause problems and could create further problems for the user. Wiring photos and instructions are readily available online. Users should note that if hot insertion is done improperly that the working of other modules on the same backplane could be disrupted. Installers should also know that no derating is needed for the 16 point modules if voltages up to 240 VAC are used, but above 240 VAC, the number of points on at the same time is dependent on the ambient temperature and external voltage.

For isolation, the user input to logic and frame ground is at 250 VAC continuous or 1500 VAC for one minute. Input voltage for this module is 0 to 264 VAC and 240 VAC nominal. This includes on response time on 1 cycle maximum and off response time of two cycles maximum. Installers should note that this module carries an explosion hazard, and no components should be substituted
