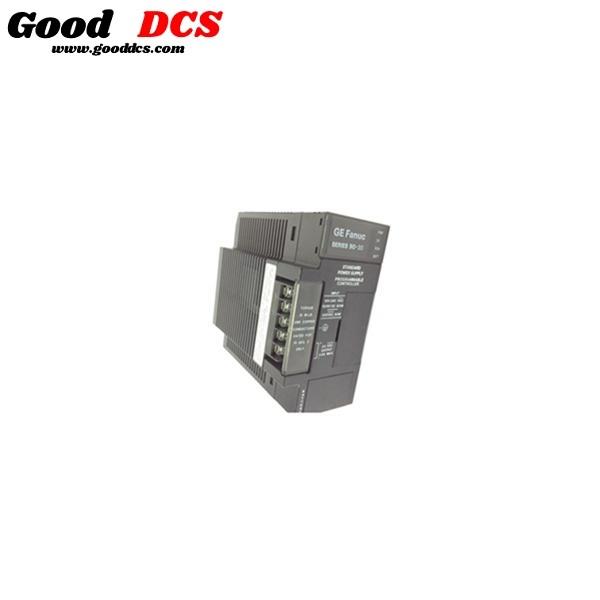

GE Fanuc IC693PWR330 IC 693 PWR 330D Power Supply

Description

IC693PWR330isa High Capacity Power Supplywith30 wattsoutput and120/240 VAC/125 VDC Input. There are applications that might need high+5Vcurrent capacity which may not be present with the standard supply(IC693PWR321).Therefore, this high capacity power supply permits each one of the 30 watts to be utilized from the +5V supply. IC693PWR330 can function from an input voltage source within the range of 85 to 264 VAC or 100 to 300 VDC. This power supply offers a +5 VDC output, +24 VDCRelay power outputs which distribute power to circuits on Series 90-30 Output Relay modules. An Isolated +24 VDC utilized internally by some modules may be used to offer external power for 24 VDC Input modules.IC693PWR330 hasfield Wiring Connectionsfor theAC/DC Input Power Supplies. These two power supplies consist of 6 terminals used for user link up. These links include; AC Power Source, 20 VAC power source, and ground wires from the 240 VAC power source. They are attached to the system via the top 3 terminals on the front of the power supply. Their sensitivity to an AC/DC input power supply is normally low.

IC693PWR330 containsinput overvoltage protection deviceswhich have an internal connection on pin 4 found on the user terminal strip. This pin is linked to pin 3 with the offered strapped jumper that is well set up at the company. The strapped jumper can be removed to make the character nonfunctional in case overvoltage protection is not needed from bothpins 3 and 4.It also requiresovercurrent protectionwhich is offered by the5V logic outputwhich is electronically limited to3.5 amps (7 amps for high capacity supplies). Whenever there is excess load it is sensed on the inside which may lead to shutting down of the power. An internal fuse in the input acts as a power back up in case of such occurrences. It also safeguards the power supply from internal supply faults.

FAQ:

1.Is the part new?
Yes, 100% Original brand new

2.How is the package?
Original factory seal packed

3.What is the lead time?
In stock: 1-3 working days

4.What is the MOQ:
1pcs

5.What is the payment term:
TT and Western Union, other negotiable

6.Where the item ship from?
Xiamen

7.What is the warranty time?
One year

8. How to delivery the PLC Parts?
Kindly tell us your address,we check best cost for you
Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
