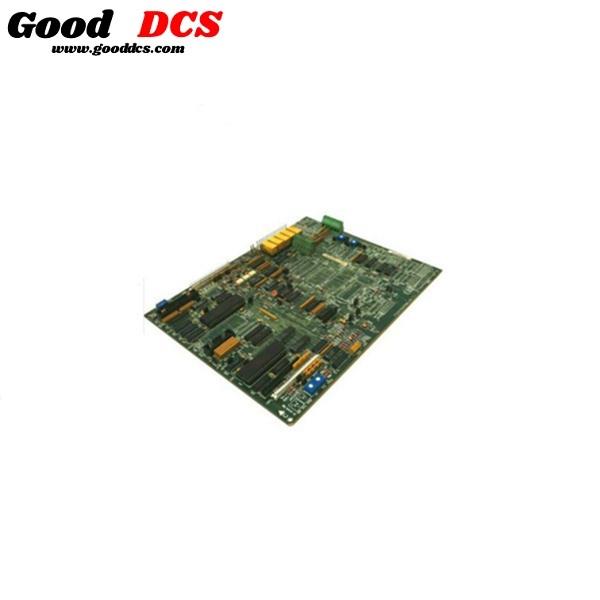

General Electric IS220PRTDHIA CardBrand New
Terminal Blocks
Signal flow begins with a sensor connected to a terminal block on an I/O module. The terminal board mounts to the cabinet and is available in two basic types: T-type and S-type modules.
T-type modules typically fan the inputs to three separate I/O packs. They contain two removable 24-point, barrier-type terminal blocks. Each point can accept two 3.0 mm2 (#12,AWG) wires with 300 V insulation per point and spade or ring-type lugs. Captive clamps are also provided for terminating bare wires. Screw spacing is 9.53 mm (0.375 in) minimum, center-to-center. T-type modules are normally surface mounted, but may also be DIN-rail mounted.
A shield strip is provided next to each block, which is actually the left-hand side of the metal base where the module is mounted. Wide and narrow modules are arranged in vertical columns of high and low-level wiring that can be accessed from top and/or bottom cable entrances. An example of a wide module is a module containing magnetic relays with fused circuits for solenoid drivers.
GE Fanuc In Stock
| URSHA |
| URRHH |
| UR9NH |
| UR8FH |
| UR6TH |
| UR8HH |
| UR5FH |
| UR6DH |
| F35N03HAHG8GH6TM8HP6TU5FW6D |
| UR8BV |
| IC698PSA100E |
| IC694ALG223A |
| IC200CMM020 |
| IC200CHS006 |
