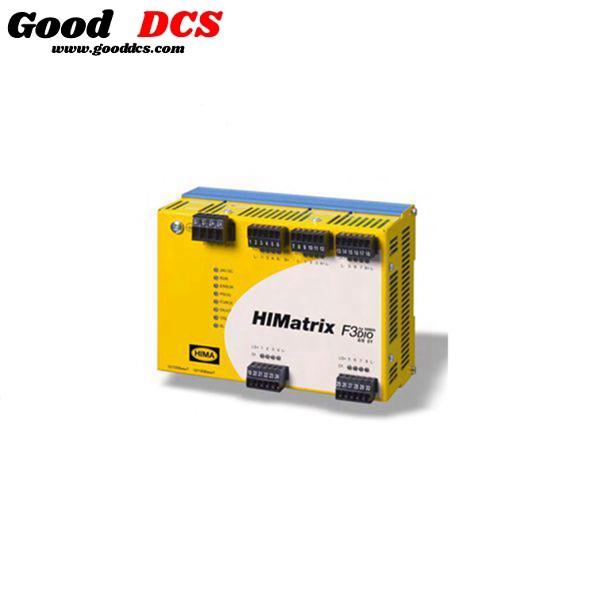

HIMA HIMATRIX F3331 Output Module
F3331 Appertaining function block: HB-BLD-3 or HB-BLD-4
The module is automatically tested during operation. The main test routines are: – Reading back of the output signals. The operating point of the 0-signal read back is ≤ 6.5 V. Up to this value the level of the 0-signal may arise in case of a fault and this will not be detected – Switching capability of the test signal and cross-talking (walking-bit test) Outputs 500 mA, short-circuit proof Internal voltage drop max. 2 V at 500 mA load Admissible line resistance (in + out) max. 11 Ω Undervoltage tripping at ≤ 16 V Output leakage current max. 350 µA Output voltage if output is reset max. 1.5 V Current input WD max. 30 mA Monitored switching time max. 200 µs Space requirement 4 SU Operating data 5 VDC / 130 mA 24 VDC / 180 mA plus load
Hima Main Serise:
1. CPU:F8650X, F8650E, F8641
2. Power Distribution Module:F7130A, F7130, F7131, F7133
3. Communication MODULE Coprocessor MODULE；F8621A, F8627X, F8628, F8628X
4. Input Module：F3221, F3222, F3223, F3224, F3236, F3237,F6208, F6214, F6215, F6216, F6216A,F6217, F6220, F6221
5. OUTPUT MODULE:F3330, F3331, F3332, F3333, F3334,F3322, F7126, F6705,F1DI1601, F3DIO8/801, F2DO1602, F3DIO20/802,F3AIO8/401, F60GEH01, F60PS01, F60DIO24/1601, F60DI3201,Z7116, Z7126, Z7127, Z7138, Z7128
6. I/O bus link module block:F7553
