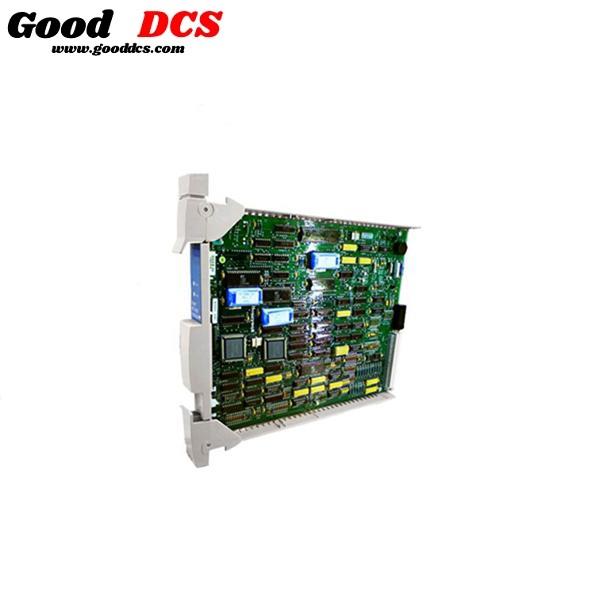

HoneywellMU-TDID12 51304441-125 Digital Input FTA Module
Description
All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable
HoneywellField Termination Assemblies FTA Modules
| Uncoated Model Number | Coated Model Number | Description |
| MU-TDID12 | MC-TDID12 | Digital Input 24 Vdc FTA (32 Inputs) |
| MU-TAOY22 | MC-TAOY22 | Analog Output 16 FTA (16 Outputs), w/StbyMan (use ONLY w/ MU-PAOY22) |
| MU-TLPA02 | MC-TLPA02 | LLMUX, SDI, SI Power Adapter |
| MU-TAMR04 | MC-TAMR03 | Low Level Analog Input Multiplexer RTD FTA (16 Inputs) |
| MU-TAIH22 | MC-TAIH22 | Enhanced Power High Level /STI Analog Input FTA (16 Inputs) |
| MU-TAIH02 | MC-TAIH02 | High Level Analog Input/STI FTA (16 Inputs) |
| MU-TAIH12 | MC-TAIH12 | High Level Analog Input/STI FTA for Redundancy (16 Inputs) |
| MU-TAIH03 | MC-TAIH03 | High Level Analog Input FTA (16 Inputs) (CE Mark) |
| MU-TAIH13 | MC-TAIH13 | High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) |
| MU-TSTX03 | MC-TSTX03 | Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
| MU-TSTX13 | MC-TSTX13 | Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) |
| MU-TAIH23 | MC-TAIH23 | Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark) |
| MU-TAIL02 | MC-TAIL02 | Low Level Analog Input FTA (8 Inputs) |
| MU-TAIL03 | MC-TAIL03 | Low Level Analog Input FTA (8 Inputs) (CE Mark) |
| MU-TAMT04 | MC-TAMT03 | Low Level Analog Input Multiplexer TC FTA (16 Inputs) |
| MU-TAMT14 | MC-TAMT13 | Low Level Analog Input Multiplexer TC FTA with Remote CJR (16 Inputs) |
| MU-GRPA01 | MC-GRPA01 | RHMUX GI/IS Power Adapter |
| MU-TRPA01 | MC-TRPA01 | RHMUX GI/NI Power Adapter |
| MU-TPIX12 | MC-TPIX12 | Pulse Input FTA (8 Inputs) |
| MU-TAOX02 | MC-TAOX02 | Analog Output FTA (8 Outputs) |
| MU-TAOX12 | MC-TAOX12 | Analog Output FTA for Redundancy (8 Outputs) |
| MU-THAO11 | MC-THAO11 | Analog Output 16 FTA (16 Outputs), w/StbyMan and HART®connector (use ONLY w/ MU-PAOY22)** |
| MU-GHAO11 | MC-GHAO11 |
GI/IS Analog Output 16 FTA (16 Outputs), w/o StbyMan, w/HART®connector (use ONLY w/ MU-PAOY22)** |
| MU-TDIA12 | MC-TDIA12 | Digital Input Isolated 120 Vac FTA (32 Inputs) |
| MU-TDIA22 | MC-TDIA22 | Digital Input Isolated 240 Vac FTA (32 Inputs) |
| MU-TDIY22 | MC-TDIY22 | Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22) |
| MU-TDOA13 | MC-TDOA13 | Digital Output 120/240 Vac Solid-State FTA (16 Outputs) |
| MU-TDOD13 | MC-TDOD13 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) |
| MU-TDOD14 | MC-TDOD14 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) (CE Mark) |
| MU-TDOD23 | MC-TDOD23 | Digital Output 31-200 Vdc Solid-State(16 Outputs) |
| MU-TDON12 | MC-TDON12 | Digital Output 24 Vdc, 100 ma Nonisolated FTA (16 Outputs) |
| MU-TDOR12 | MC-TDOR12 | Digital Output 120 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDOR22 | MC-TDOR22 | Digital Output 240 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDOY22 | MC-TDOY22 | Digital Output 24 Vdc FTA (32 Outputs) (use ONLY w/ MU-PDOY22) |
| MU-TDOY23 | MC-TDOY23 | Digital Output Relay FTA (16 Outputs) (use two w/ MU-PDOY22) |
