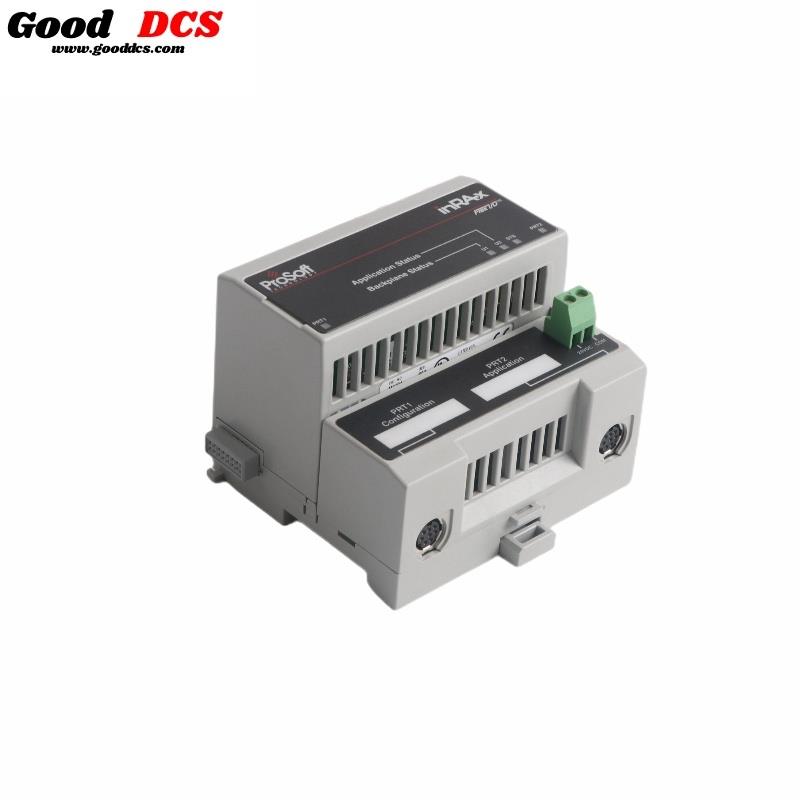

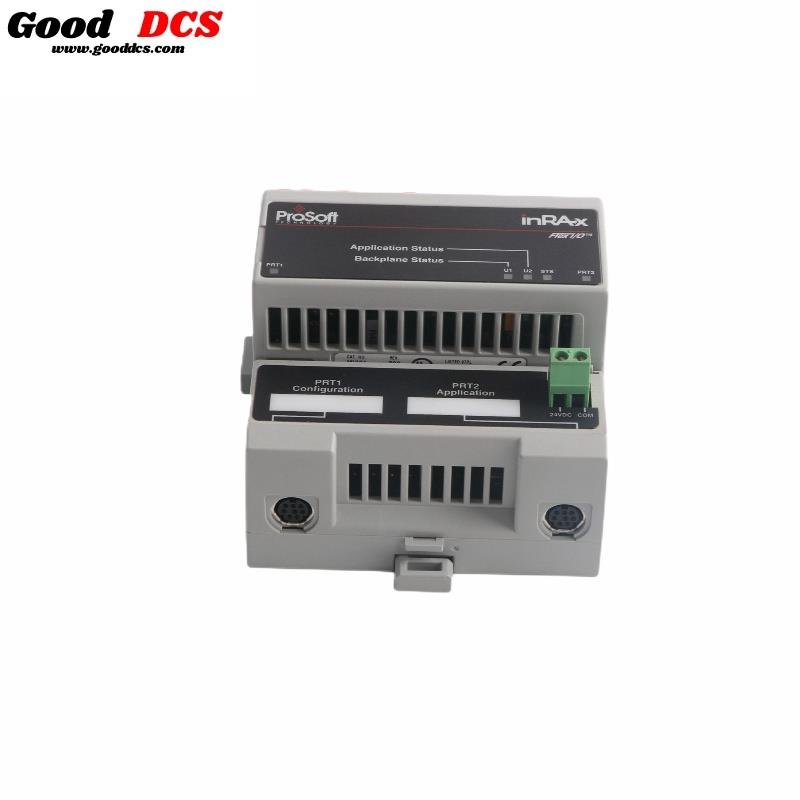

The MVI94-GSC-E is a generic serial ASCII network interface module that is manufactured by ProSoft technologies and classified under the Flex I/O 1794 series. This module comes as a single slot interface with 125 read and write command lengths.
|
|||
|
|
||||
|
|
MVI94-GSC-EData sheet |
The MVI94-GSC-E also takes a maximum of 10 characters per block and features the 12 to 24 Volts DC. The MVI94-GSC-E comes with a ladder logic simple operation and a complete setup and monitoring is through debug port and the user configuration port. |
||
|
|
The MVI94-GSC-E backplane interfaces via an I/O access. The backplane current load for the MVI94-GSC-E is 20 mA at 5 Volts with an external power supply rated as 12 to 24 Volts DC. The operating temperature for the MVI94-GSC-E is 0 to 55 degrees Celsius with a storage temperature of -40 to 85 degrees Celsius. |
|||
|
|
MVI94-GSC-E, stores the configuration in a text file that is called configuration and it is located in the flash memory of the module. Whenever the MVI94-GSC-E starts up, it will read the configuration file and use the information that is stored in there to control how the MVI94-GSC-E protocol shall interact with the applications on the module. |
|||
|
|
