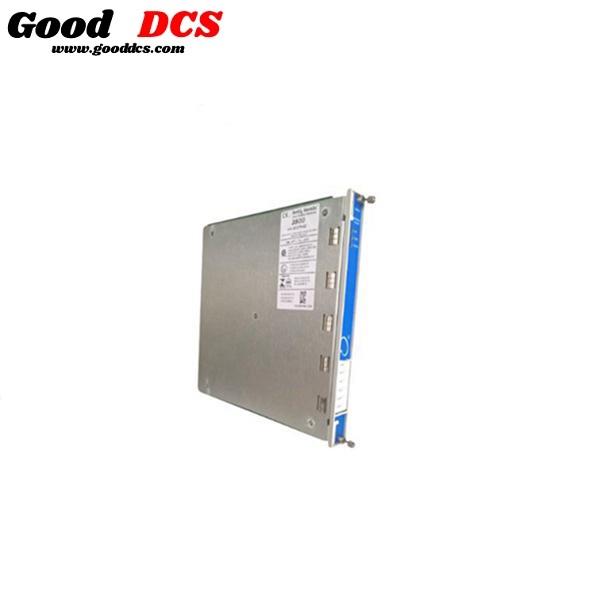

Original New Bently Nevada 3500/65 16-Channel Temperature Monitor Module in Stock
Overview
The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints. The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs. In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid singlepoint failures.
Specifications
| Part No. | 3500/65 |
| Input Power Consumption | 3 watts nominal |
| Input Impedance | Greater than 1 MΩ for each lead input. |
| OutputsOK LED | Indicates when the 3500/65 is operating properly. |
|
OutputsTX/RX LED |
Indicates when the 3500/65 is
communicating with other
modules in the 3500 rack. |
|
OutputsBypass LED |
Indicates when the 3500/65
monitor is in Bypass Mode. |
