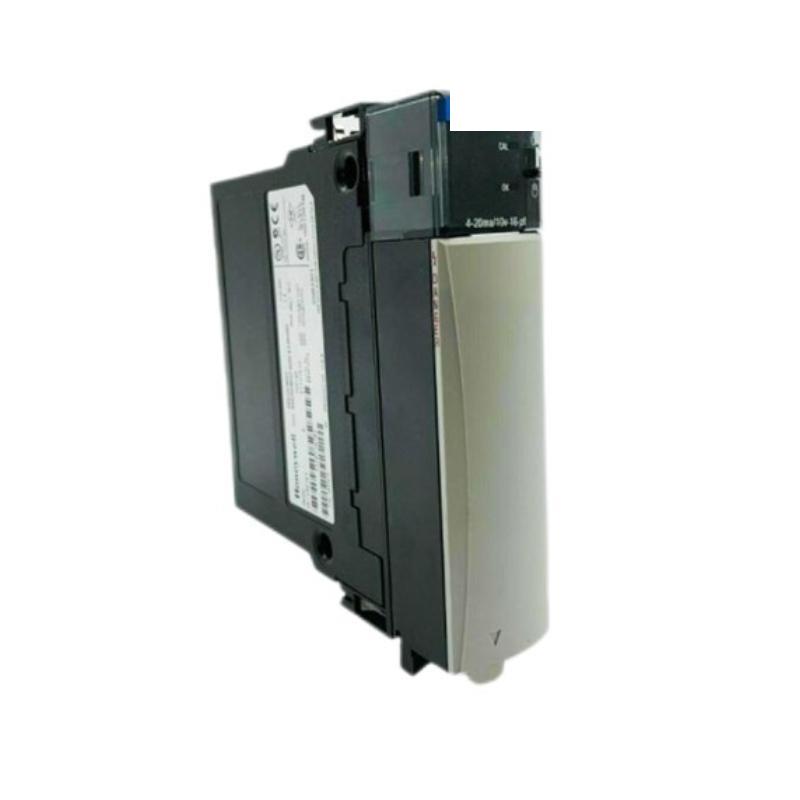

Honeywell TC-IAH161 Analog 16-InputModule In Stock
Overview
UB indicates the wiring layout (In this case a cable pre-wired for module TC-IAH161 and single ended current
inputs). Different letter designators are used with other IOM’s.TC-IAH161High Level Analog, 16-Input, Voltage and Current (10 V & 4-20 mA) Module
Specification
| Parameter | Specification |
| Part No. |
TC-IAH161 |
| Number of Points | 16 channels |
| Module Publish Rate | 250 msec |
|
Open Circuit Detection Typical OC Detection Time |
VoltageEven channels - Positive Full scale reading Odd channels – Negative Full scale readingCurrent – Negative Full scale reading less than 5 seconds |
|
Normal Mode Noise Rejection Common Mode Rejection |
Greater than 33 dB @ 50 Hz Greater than 60 dB @ 60 Hz 100 dB @ 50/60 Hz |
| Channel Bandwidth | 20 Hz(-3dB) |
| Calibrated Accuracy |
Better than 0.05% of range (Voltage) Better than 0.15% of range including sense resistor (Current) |
| RFI Immunity | Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz |
| Overvoltage Capability |
Continuous at room temperature (both) 30 VDC (Voltage) 8 VDC (Current) |
