Technical Specifications
| Parameter | Description |
|---|---|

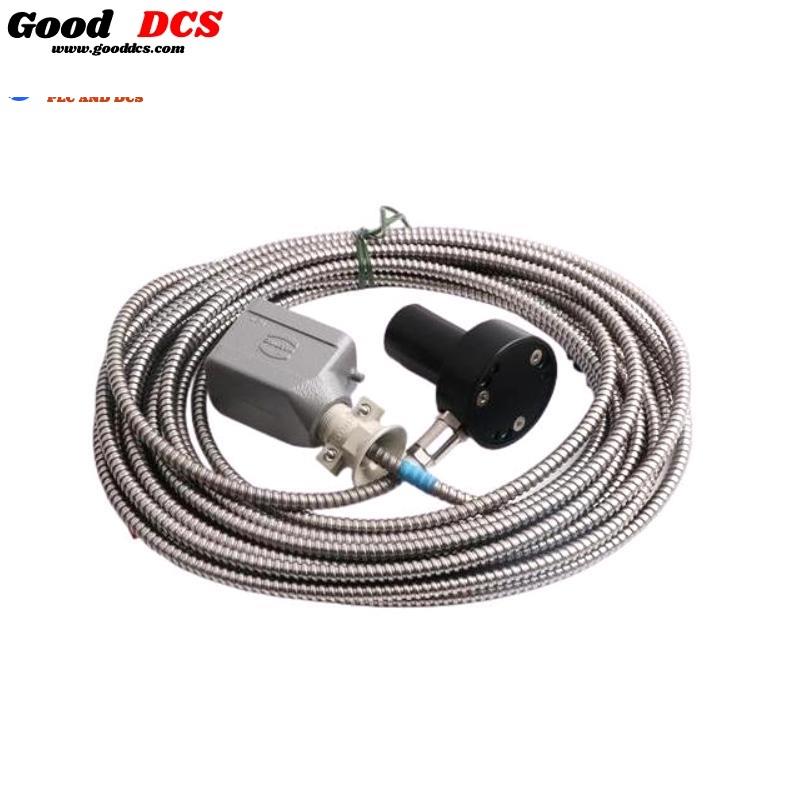

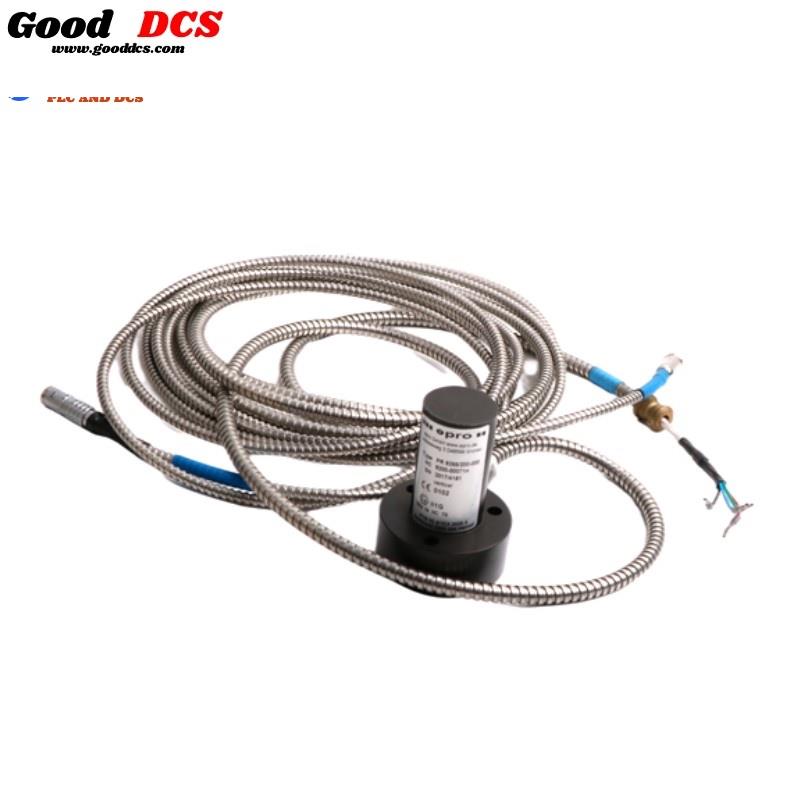

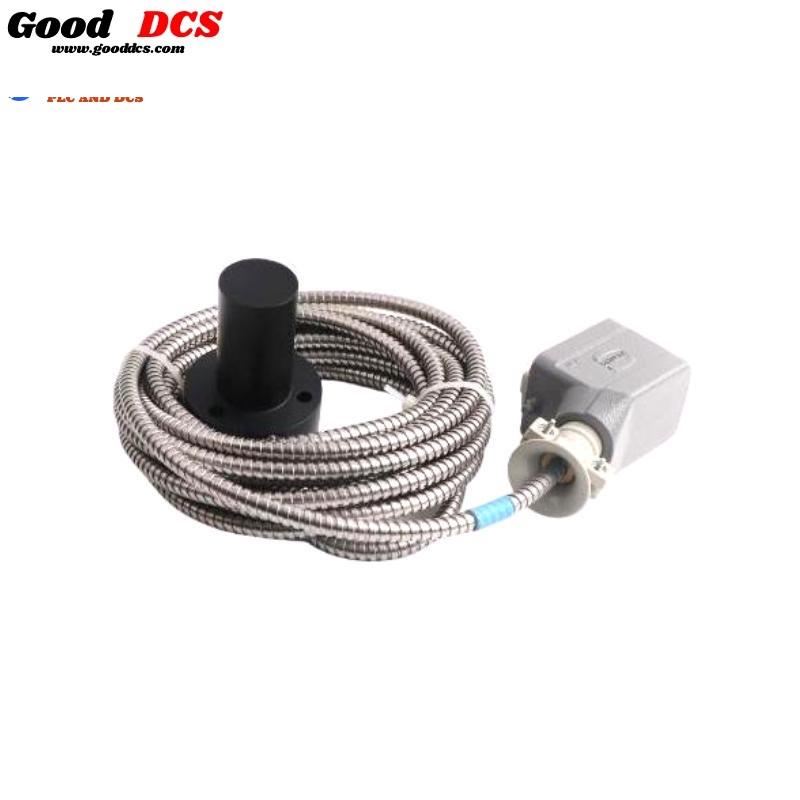

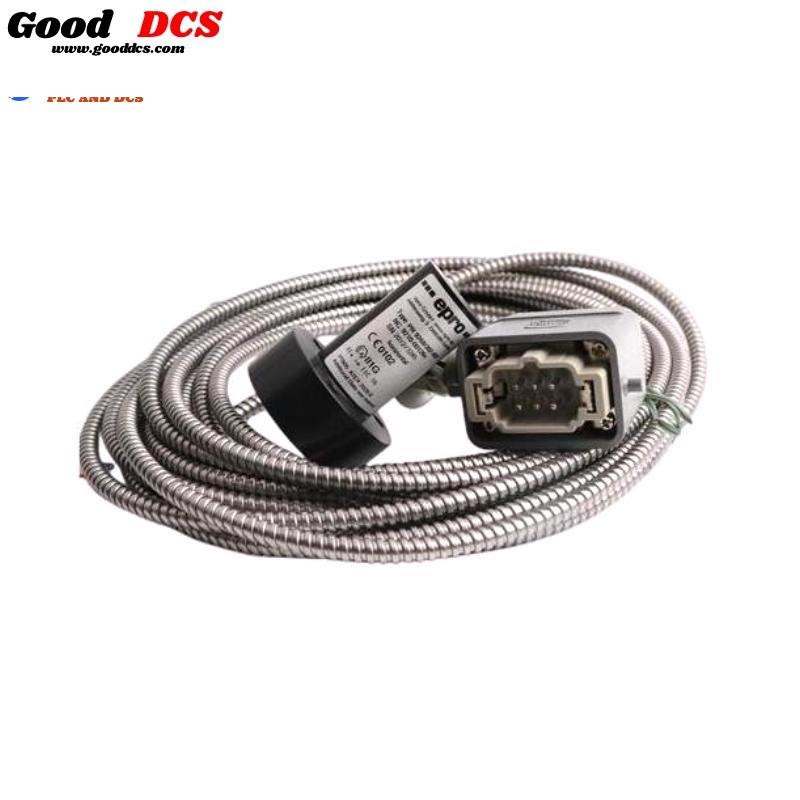

| Model | PR9268/602-000 |
| Type | Electrodynamic mechanical velocity sensor |
| Mounting Orientation | Vertical ±60° (with sinking current) |
| Frequency Range | 10 to 1000 Hz |
| Sensitivity | 22.0 mV/mm/s ±5% @ Pin 3 (100Ω load) 16.7 mV/mm/s ±5% @ Pin 1 (50Ω load) 16.7 mV/mm/s ±5% @ Pin 4 (20Ω load) |
| Natural Frequency | 8 Hz ± 1.5 Hz @ 20°C |
| Max Vibration Amplitude | 3000 µm (4000 µm peak-to-peak) |
| Max Acceleration | 10g (98.1 m/s²) continuous 20g (196.2 m/s²) intermittent |
| Transverse Sensitivity | 0.10 @ 80 Hz |
| Damping Factor | ~0.7 @ 20°C, ~0.5 @ 200°C |
| Resistance | 3270Ω ±10% (Pin 3) 3770Ω ±10% (Pin 1) |
| Inductance | ≤ 160 mH |
| Active Capacitance | Insignificant |
| Operating Temperature | -20°C to +200°C |
| Relative Humidity | 0 to 100%, non-condensing |
| Protection Class | IP65 |
| Housing Material | Stainless Steel |
| Cable Type | PTFE, 3x 0.5 mm² |
| Armor Type | Stainless Steel Armored |
| Plug Material | Die-cast Aluminium |
| Power Supply | Self-powered |
| Certifications | CE, ATEX, IECEx, CSA, UL, UKCA |
| Dimensions | 78 × 58 mm |
| Weight | 1.05 kg |
