Technical Specifications
| Parameter | Value / Description |
|---|---|

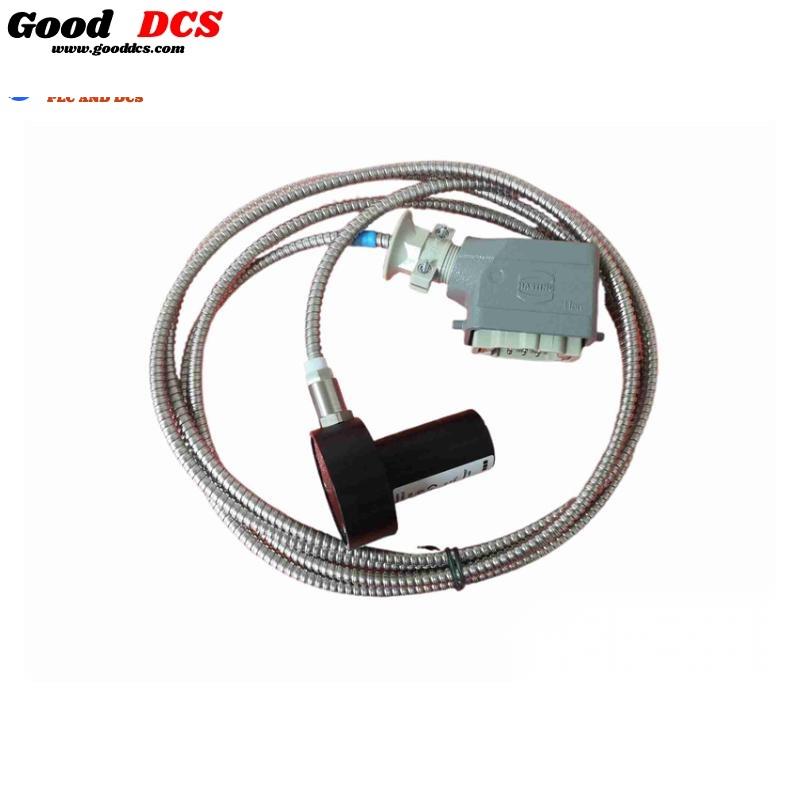

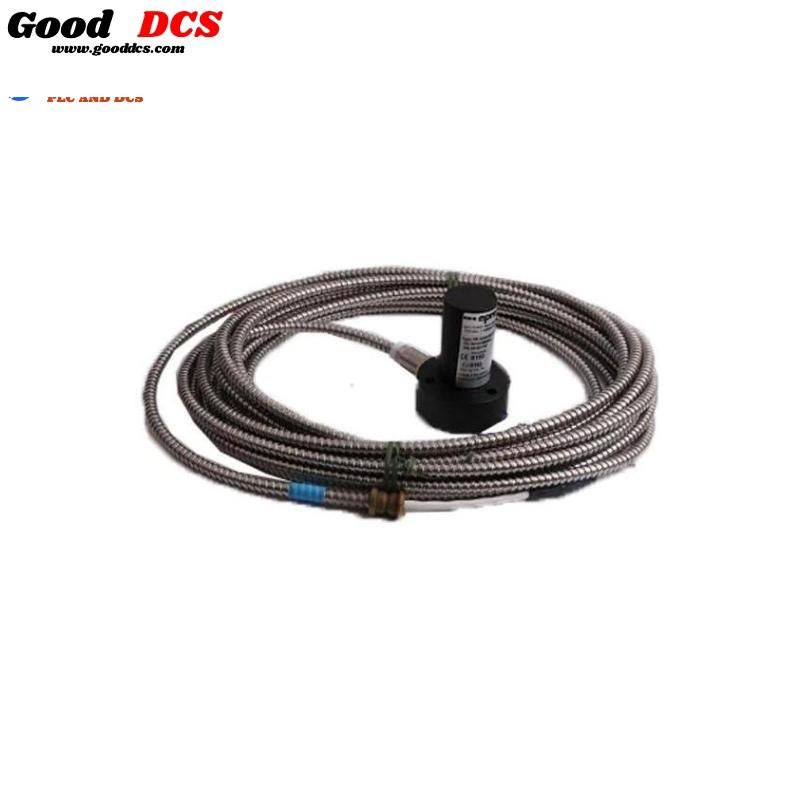

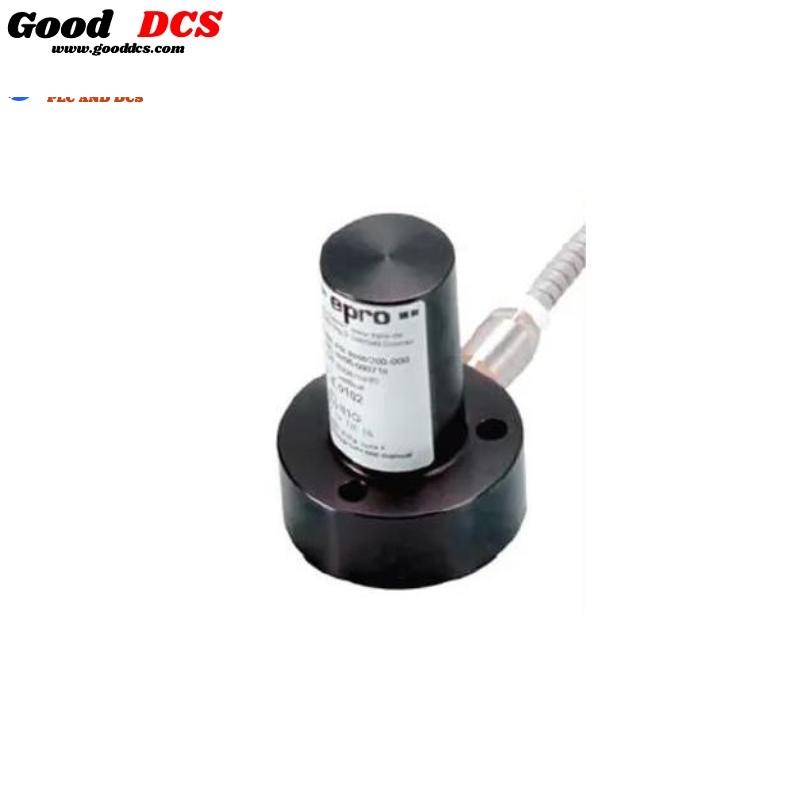

| Sensor Type | Electrodynamic Velocity Sensor |
| Measurement Orientation | Horizontal ±30° |
| Sensitivity | 22.0 mV/mm/s ±5% (Pin 3, 100Ω load) 16.7 mV/mm/s ±5% (Pin 1/4, 50Ω/20Ω load) |
| Frequency Range | 10 – 1000 Hz |
| Natural Frequency | 8 Hz ±1.5 Hz @ 20°C |
| Transverse Sensitivity | 0.10 @ 80Hz |
| Vibration Amplitude | 3000 µm (up to 4000 µm) peak-to-peak |
| Amplitude Linearity | <2% |
| Max Acceleration | 10g (98.1 m/s²) continuous, 20g (196.2 m/s²) intermittent |
| Max Transverse Accel. | 2g (19.62 m/s²) |
| Damping Factor | ~0.7 @ 20°C; ~0.5 @ 200°C |
| Resistance | 3270Ω ±10% (Pin 3), 3770Ω ±10% (Pin 1) |
| Inductance | ≤160 mH |
| Active Capacity | Insignificant |
| Operating Temp. Range | -20°C to +200°C (-4°F to +392°F) |
| Protection Class | IP65 |
| Relative Humidity | 0 to 100%, Non-Condensing |
| Material | Stainless Steel |
| Cable Type | PTFE, 3×0.5mm², stainless steel armored |
| Connector | Harting Plug, Die-Cast Aluminium |
| Dimensions | 78 × 58 mm |
| Weight | 1.05 kg |
| Power Supply | Self-powered |
| Certifications | ATEX, IECEx, CE, CSA, UL, UKCA |
