Technical Specifications
| Category | Specification |
|---|---|

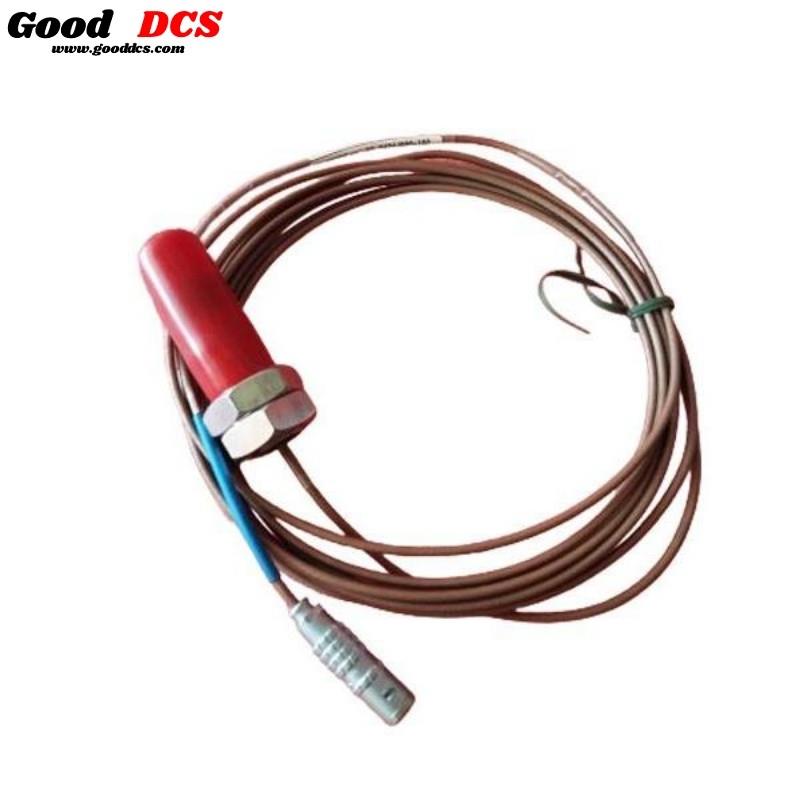

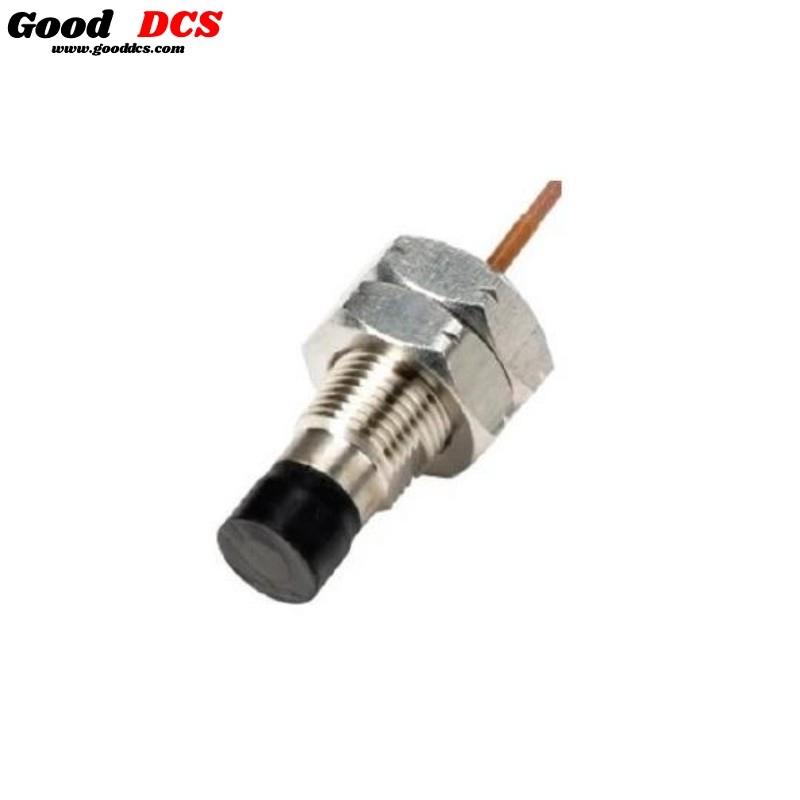

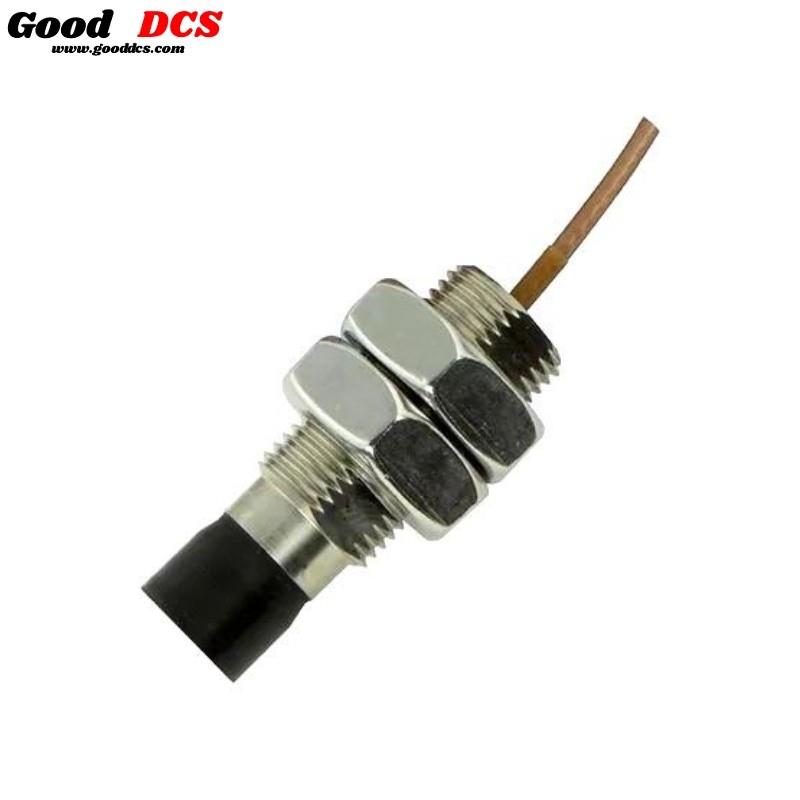

| Sensor Type | Eddy Current (Non-contact) |
| Application | Radial & axial shaft displacement, position, eccentricity, speed/key |
| Sensitivity/Linearity | 4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Static Range | ±2.0 mm (0.079″) |
| Dynamic Range | 0 to 1,000 μm (0 to 0.039″) |
| Air Gap (Center) | Approx. 2.7 mm (0.11″) |
| Long-Term Drift | < 0.3% |
| Target Material | Ferromagnetic steel (42 Cr Mo4) |
| Min. Shaft Diameter | ≥80 mm |
| Max. Surface Speed | 2,500 m/s (98,425 ips) |
| Operating Temperature | -35°C to +150°C (-31°F to +302°F) |
| Temperature Error | <4% per 100K (API 670 compliant) |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Shock/Vibration Rating | 5g @ 60Hz @ 25°C (77°F) |
| Material | Sleeve: Stainless Steel, Cable: PTFE |
| Sensor Head Diameter | 16 mm |
| Weight | Approx. 200 g (0.2 kg) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Ratings | ATEX/IEC-Ex/CSA – T6, T4, T3 (depending on converter configuration) |
