Epro PR6423/010-140+CON011 8mm Eddy Current Sensor + Signal Converter
The Epro PR6423/010-140 is an advanced 8mm Eddy Current Sensor, designed for high-precision measurements in critical turbomachinery applications. This non-contact sensor is ideal for monitoring radial and axial shaft dynamic displacements, position, eccentricity, and speed in turbines, compressors, gearboxes, pumps, and fans.
Product Specifications

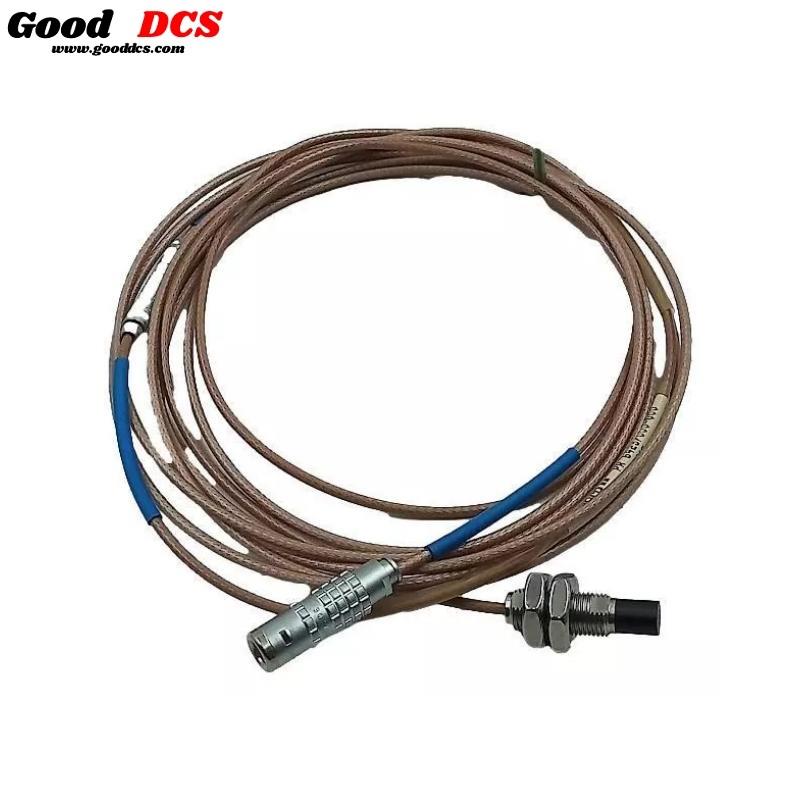

Epro PR6423/010-140 Eddy Current Sensor
| Parameter | Value |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Measurement Range | 2 mm (80 mils) linear range |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ± 5% |
| Deviation from Best Fit Line | ± 0.025 mm (± 1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79 inches) |
| Target Material | Ferromagnetic Steel (42CrMo4/AISI 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature | -35 to +180°C (-31 to +356°F) |
| Weight | Approx. 100 grams (3.53 oz) |
| Material (Sensor Tip) | PEEK Polyether Ether Ketone |
| Material (Case) | Stainless Steel |
| Material (Cable) | PTFE Polytetrafluoroethylene |
| Connector Material | Brass, nickel-plated |
| Cable Length | 1 meter (standard) |
| Sensor Tip Diameter | 8 mm |

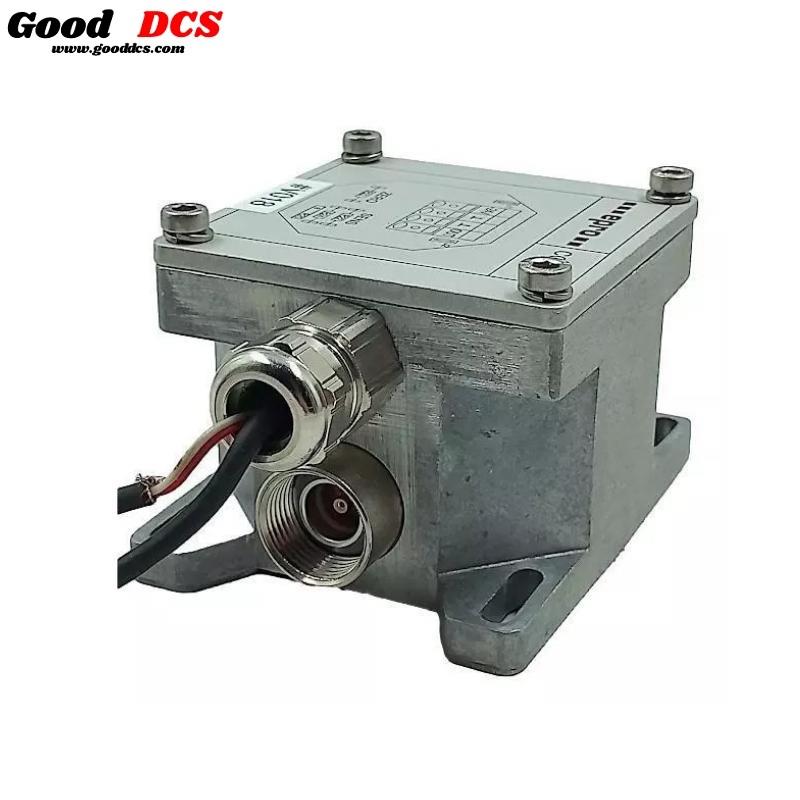

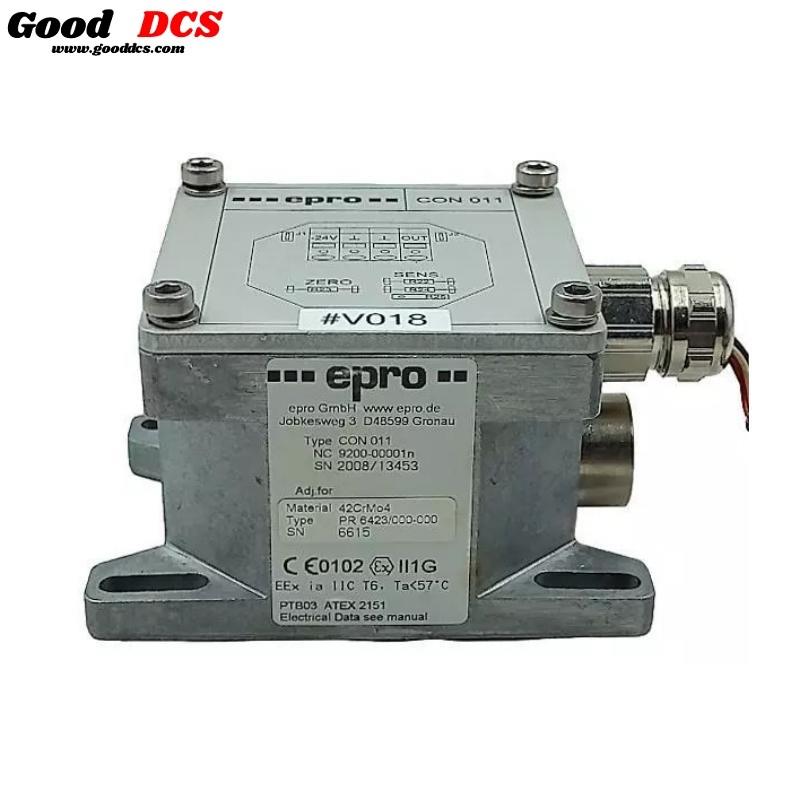

Epro CON011 Signal Converter
The CON011 is a versatile signal converter designed to work with various Epro Eddy Current Sensors, including the PR6423 model. This converter is used to process the raw signals from the sensor and convert them into usable outputs for monitoring systems.
| Parameter | Value |
|---|---|
| Frequency Range | 0 to 20,000 Hz |
| Rise Time | < 15 µs |
| Input Sensor Types | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Output Voltage | -4V to -20V or -2V to -18V |
| Operating Temperature | -30 to 100°C (-22 to 212°F) |
| Protection Class | IP65 |
| Weight | Approx. 600 grams (21.16 oz) |
| Housing Material | GD-ALSi9Cu3 |
| Mounting | 4 Screws M5x20 (Included) |
Key Features and Advantages
-
High Precision: The sensor provides accurate measurements of shaft displacements, position, eccentricity, and speed in critical machinery.
-
Non-Contact Measurement: It offers non-invasive measurement, reducing wear and tear compared to contact sensors.
-
Wide Temperature Range: The PR6423 sensor operates in extreme temperatures from -35°C to +180°C (-31°F to +356°F), making it suitable for harsh industrial environments.
-
Compact and Lightweight: With a sensor diameter of just 8 mm and a weight of around 100 grams, the device is compact and easy to integrate into machinery.
-
Durable Construction: The stainless steel housing and PEEK sensor tip ensure robustness and longevity even in challenging environments.
-
Hazardous Area Certifications: Both the sensor and signal converter comply with strict safety standards such as ATEX, IEC-Ex, and CSA, making them safe for use in hazardous areas.
Applications
The Epro PR6423 Eddy Current Sensor with the CON011 Signal Converter is ideal for various critical turbomachinery applications:
-
Turbines (Steam, Gas, Hydro): For measuring radial and axial displacements to monitor rotor health.
-
Compressors and Gearboxes: To measure eccentricity and speed, preventing failure due to misalignment.
-
Pumps and Fans: To track operational efficiency and detect anomalies in performance.
Latest Reports and Developments
-
“Advances in Shaft Measurement Technologies for Turbomachinery”
-
“Improved Eddy Current Sensing for Predictive Maintenance in Gas Turbines”
-
“Optimizing Mechanical Efficiency with Epro Eddy Current Sensors”
Recommended Related Models
| Model Number | Type | Measurement Range | Linearity Error |
|---|---|---|---|
| PR6423/01 | Eddy Current Sensor | 2 mm | ≤ 1.0% |
| PR6423/03 | Eddy Current Sensor | 3 mm | ≤ 1.5% |
| PR6423/10 | Eddy Current Sensor | 4 mm | ≤ 1.5% |
| PR6424/01 | Eddy Current Sensor | 6 mm | ≤ 1.0% |
| PR6425/01 | Eddy Current Sensor | 4 mm | ≤ 1.5% |
| PR6426/01 | Eddy Current Sensor | 12 mm | ≤ 1.5% |
Popular Epro Models
| Model Number | Type | Measurement Range | Linearity Error |
|---|---|---|---|
| PR6422/00 | Eddy Current Sensor | 2 mm | ≤ 1.0% |
| PR6423/01 | Eddy Current Sensor | 2 mm | ≤ 1.0% |
| PR6424/02 | Eddy Current Sensor | 6 mm | ≤ 1.5% |
| PR6425/02 | Eddy Current Sensor | 6 mm | ≤ 1.5% |
| PR6426/02 | Eddy Current Sensor | 16 mm | ≤ 2.0% |
| CON011/913-040 | Signal Converter | 4 mm | ≤ 2.0% |
Our products are all genuine imported goods in stock, which can be tested, worry-free after-sales service, and quality guaranteed.
We have tens of thousands of models and tens of thousands of stocks in stock, welcome to consult!
