Product Specifications
| Parameter | Specification |
|---|---|
| Function | Dual Channel Measuring Amplifier for Inductive Displacement Sensors |
| Part of System | MMS 6000 Machine Monitoring System |
| Compatible Sensors | Inductive displacement sensors (e.g., Epro PR 9350/.) |
| Signal Frequency Range | 0–100 Hz (-3 dB) |
| Zero Adjustment | Independent of measuring range |
| Output Combinations | Sum and difference values of both channels |
| Sensor Power Supply | Balanced to ground (120–600 Ohm load) |
| Interfaces | RS232 (for configuration and data output), RS485 (for connection to MMS 6800 or host computers) |
| Max Input Voltage | 3.6V (protected against overvoltage) |
| Nominal Input Voltage | 2.5V rms |
| Input Impedance | 200 kΩ |
| Measuring Range | Configurable based on transducer range |
| Sensor Carrier Frequency | 4.75 kHz |
| Nominal Supply Voltage | 4 Vrms |
| Alarm Limits | 2 alarm limits per channel, configurable (5–100% of full scale) |
| Alarm Delay Time | 0–5 seconds, adjustable |
| Alarm Output | Potential-free optocoupler (max 48V DC, 100 mA) |
| Current Output | 0/4–20 mA, proportional to measuring range (≤500 Ω load) |
| Voltage Output | 0–10V, proportional to measuring range (≥10 kΩ load) |
| Accuracy | ±1% of full-scale deflection |
| Operating Temperature | 0 to +65°C |
| Storage Temperature | -30 to +85°C |
| Protection Class | IP00 (module), IP21 (front plate) |
| Shock Resistance | 98 m/s² (16 ms duration) |
| Vibration Resistance | 0.15 mm (10–55 Hz), 16.6 m/s² (55–150 Hz) |
| Power Supply | 18–31.2V DC, max 8W consumption |
| Communication Bus | RS485 (supports up to 31 modules/62 channels per bus) |
| Dimensions (W x H x D) | 30 x 128.4 x 160 mm |
| Weight | 0.32 kg (net), 0.45 kg (gross) |
Product Introduction

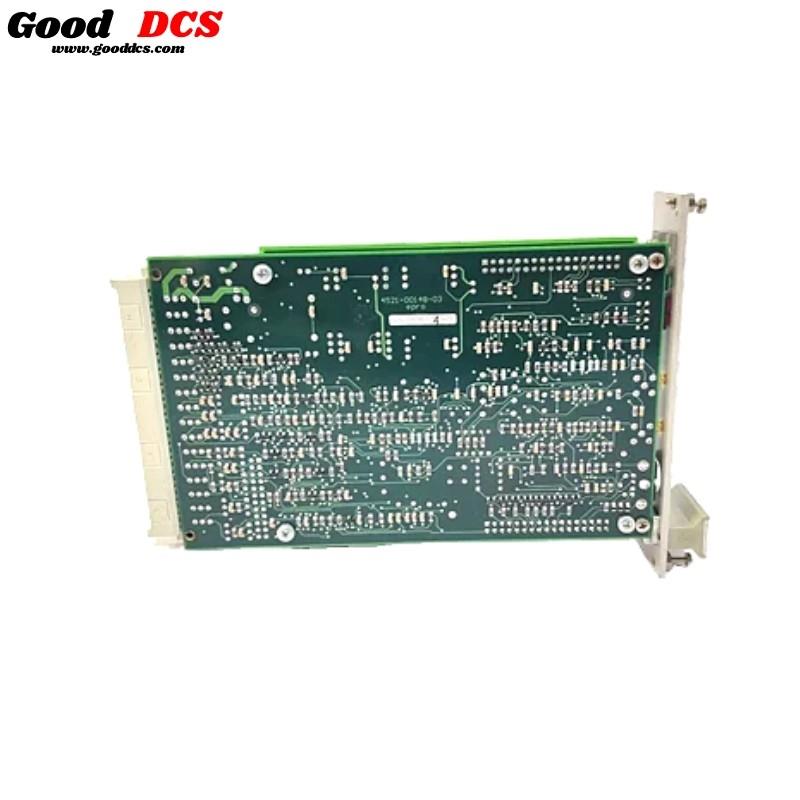

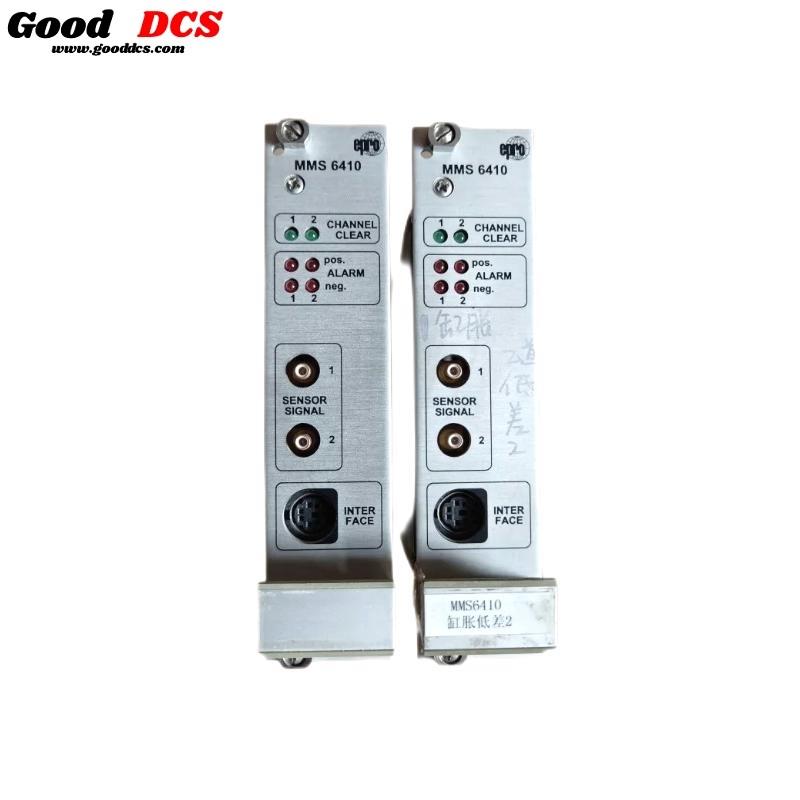

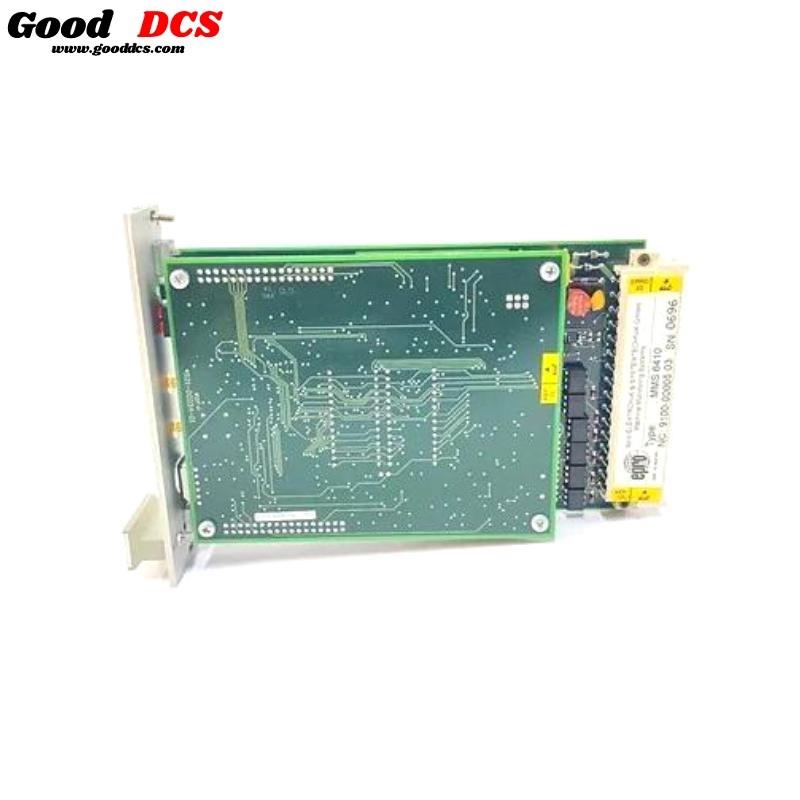

The Epro MMS6410 is a dual-channel measuring amplifier designed for use with inductive displacement sensors. It is part of the MMS 6000 machine monitoring system, providing accurate measurements for industrial applications requiring high-precision displacement monitoring.
This amplifier can process signals from sensors in half-bridge, full-bridge, or differential transformer configurations. Its dual-channel capability allows independent measurements or combined calculations (sum and difference values). It also supports static and dynamic signal measurements, making it suitable for applications involving shaft displacement, force, torsion, and vibration monitoring.
With its RS232 and RS485 communication interfaces, the MMS6410 can be configured and integrated into broader analysis and diagnostic systems. The sensor supply is balanced to ground, reducing industrial noise interference.
Product Applications
The MMS6410 is widely used in industrial machine monitoring systems, particularly for:
- Turbine Protection Systems – Monitoring shaft expansion and vibration in steam, gas, and water turbines.
- Compressor and Fan Monitoring – Ensuring operational safety and efficiency.
- Centrifuge Monitoring – Tracking displacement and vibration in high-speed rotating systems.
- Industrial Machinery Condition Monitoring – Measuring displacement, torsion, and forces in rotating equipment.
- Research and Testing – Providing high-precision displacement measurements in laboratory and industrial testing environments.
Product Advantages
- High-precision Measurement – Supports static and dynamic displacement monitoring.
- Versatile Sensor Compatibility – Works with various inductive sensors, including half-bridge, full-bridge, and differential transformers.
- Robust Industrial Design – High electromagnetic compatibility (EMC) and rugged construction.
- Flexible Communication Interfaces – RS232 for configuration, RS485 for integration with diagnostic systems.
- Advanced Alarm System – Configurable pre-alarm (ALERT) and main alarm (DANGER) functions.
- Dual Power Supply Input – Redundant power supply option for increased reliability.
- Compact Form Factor – Small size (30 x 128.4 x 160 mm) and lightweight design (0.32 kg).
- Scalability – Supports up to 31 modules (62 channels) per RS485 bus, extendable with additional buses.
- Easy Configuration – PC-based configuration via RS232 or RS485, supporting multiple measurement modes.
- Improved Machine Safety and Efficiency – Helps extend equipment lifespan and improve performance.
