Technical Specifications
| Parameter | Value |
|---|---|

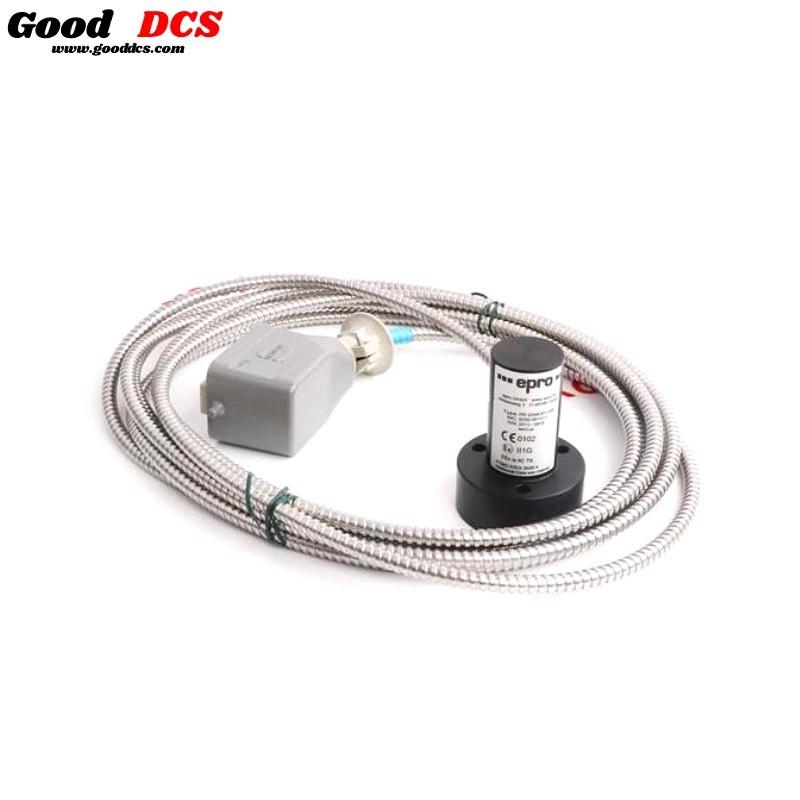

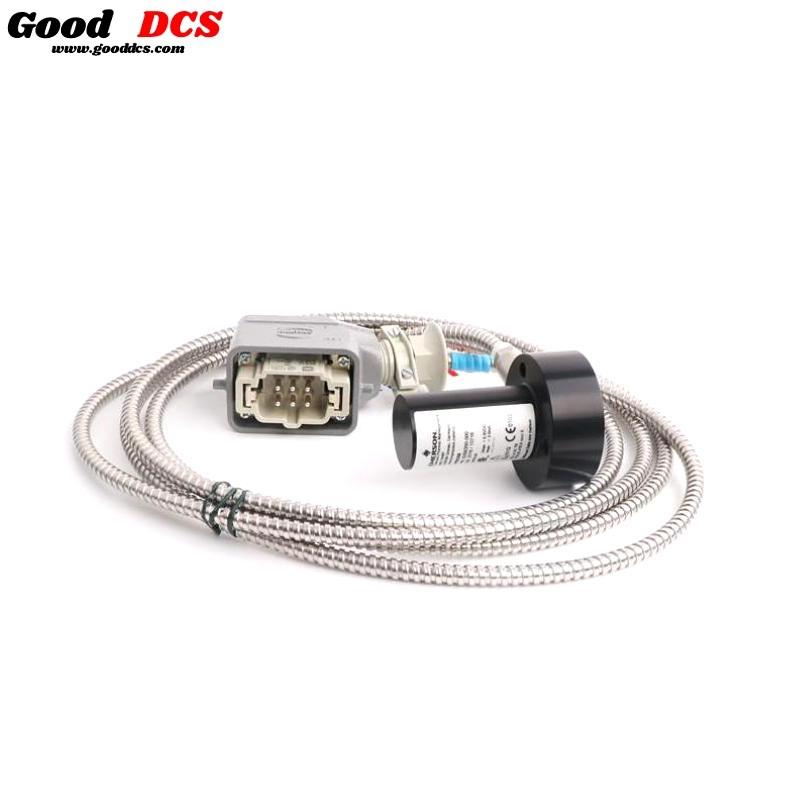

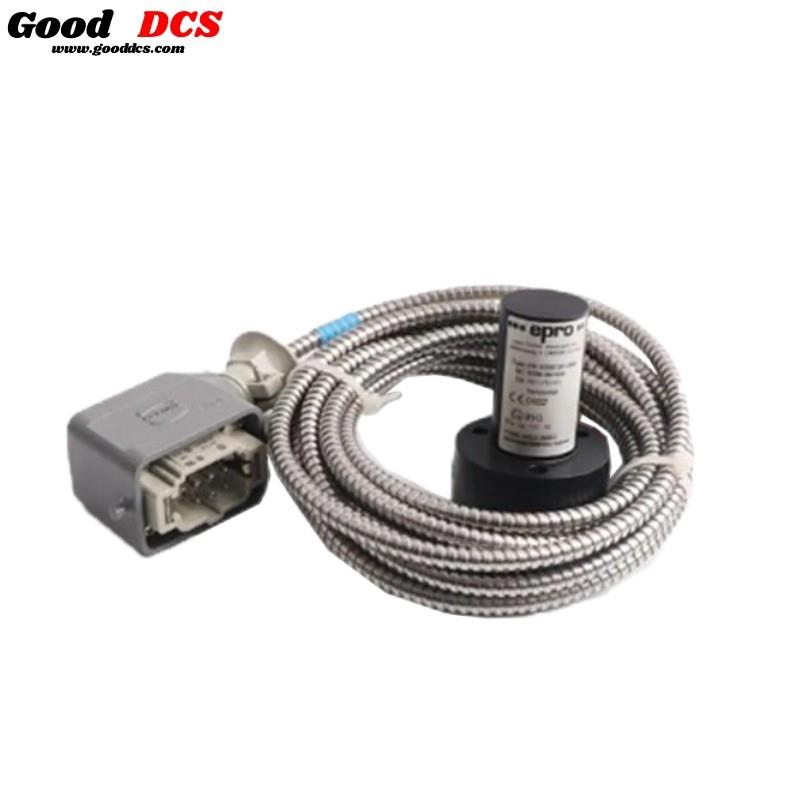

| Model | PR9268/206-100 |
| Dimensions | 78 × 58 mm |
| Weight | 0.93 kg |
| Measuring Direction | Omni-directional |
| Temperature Range | -20 to +100°C (up to 120°C for short periods) |
| Protection Class | IP65 |
| Frequency Range | 4 Hz to 1000 Hz |
| Natural Frequency | 4.5 Hz ±0.75 Hz (at 20°C) |
| Sensitivity | 28.5 mV/(mm/s) ±5% |
| Damping Factor | 0.56 (at 20°C and 100 kΩ load) |
| Resistance Measuring Coil | 1875 Ω ±10% |
| Insulation Resistance | >1 MΩ (test voltage 500V AC) |
Our products are all genuine imported goods, which can be tested, worry-free after-sales service, and quality guaranteed.
We have tens of thousands of models and tens of thousands of stocks in stock, welcome to consult!
