Technical Specifications
| Parameter | Value |
|---|---|

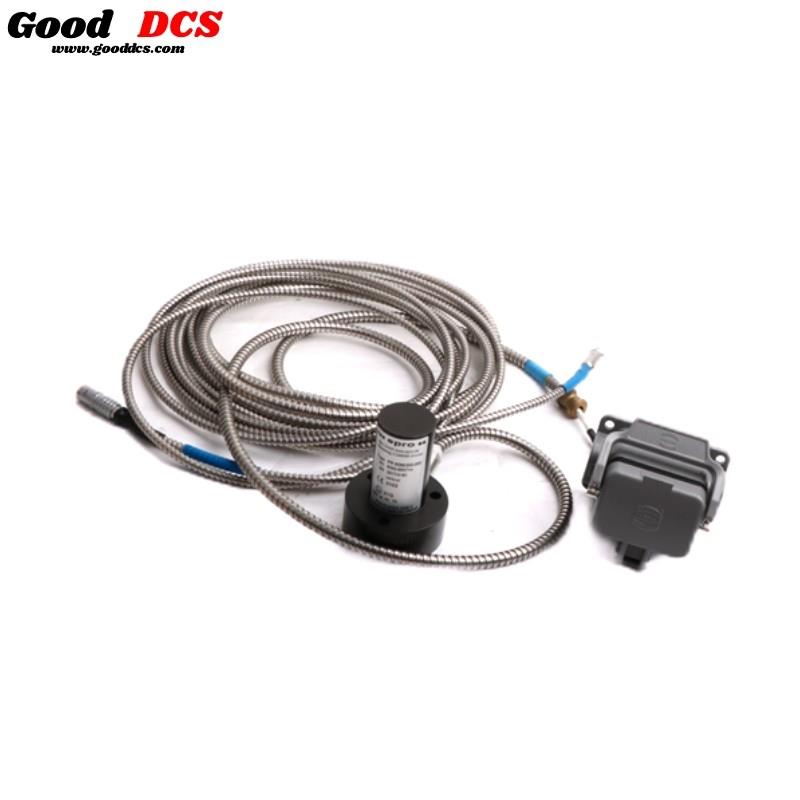

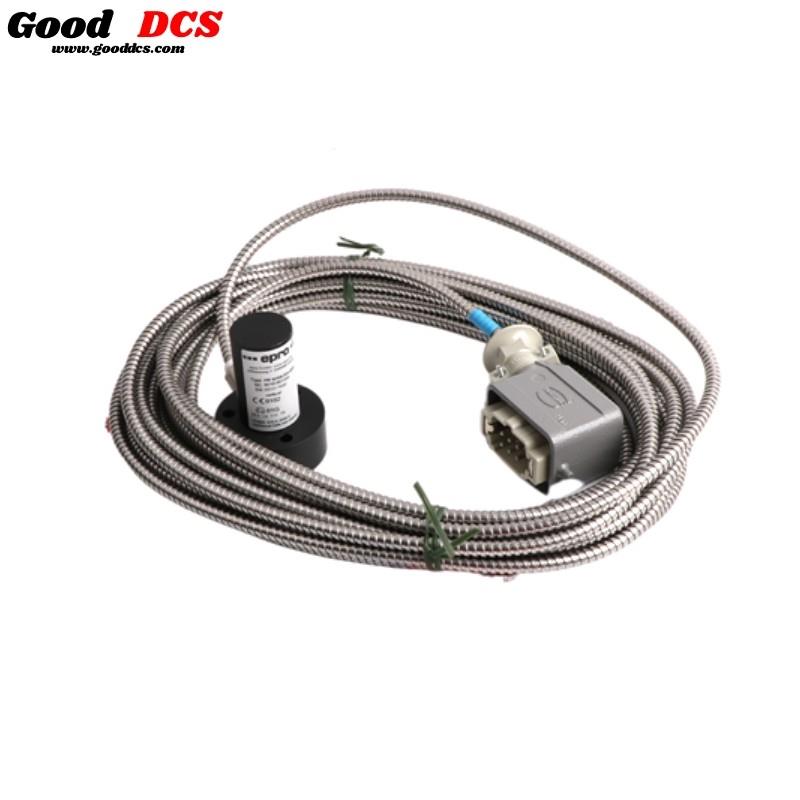

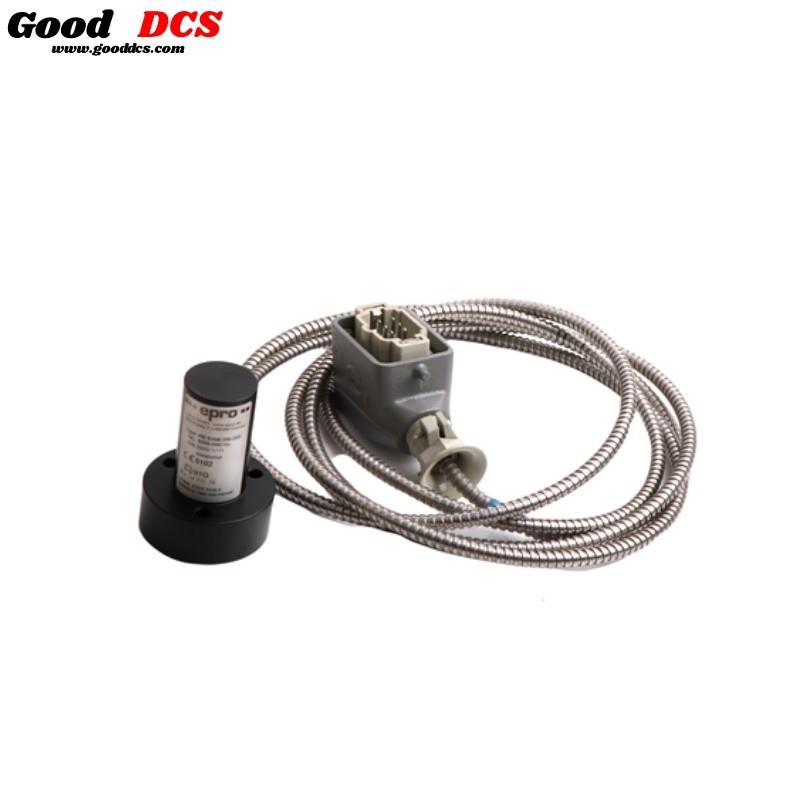

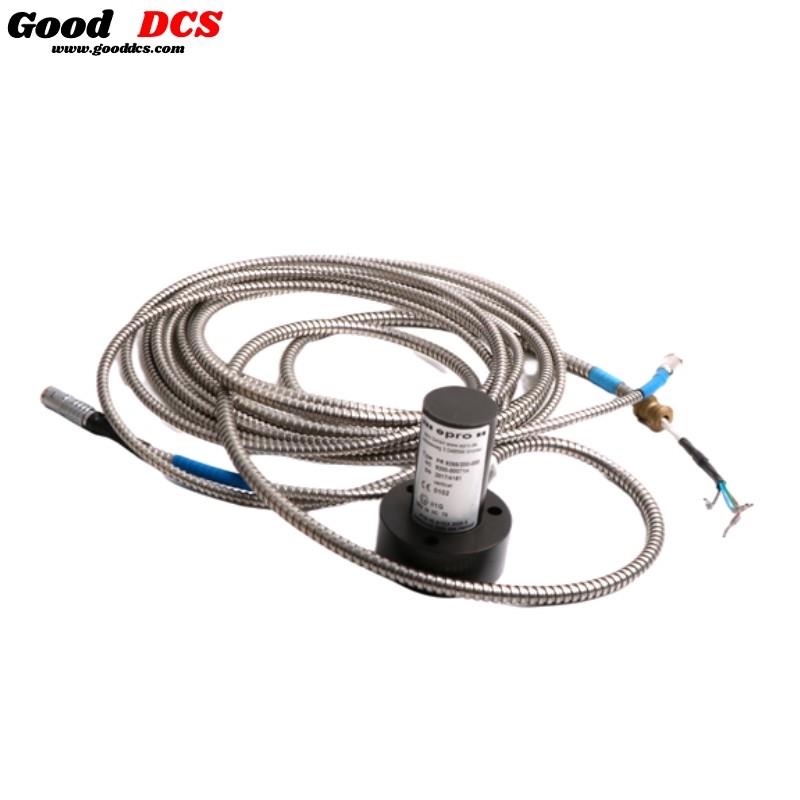

| Model | PR9268/303-000 |
| Measuring Principle | Low tuned measuring principle for absolute vibrations |
| Measuring Direction | Omnidirectional |
| Frequency Range | 4 Hz – 1000 Hz |
| Natural Frequency | 4.5 Hz ± 0.75% (20°C, 100 kΩ load) |
| Sensitivity | 28.5 mV/(mm/s) ±5% (20°C, 80 Hz) |
| Damping Factor | 0.56 (20°C, 100 kΩ load) |
| Maximum Amplitude | 3000 µm peak-peak |
| Maximum Acceleration | 10 g peak-peak (continuous), 20 g peak-peak (short-time) |
| Resistance | 1875 Ω ±10% (PR9268/20x-x00, PR9268/30x-x00) |
| Weight | 0.93 kg |
| Dimensions | 78 × 58 mm |
| Operating Temperature Range | -20°C to +100°C (without connector) |
| Protection Class | IP 65 |
| Connector | 6-pole Harting plug (only for PR9268/01x-000 types) |
