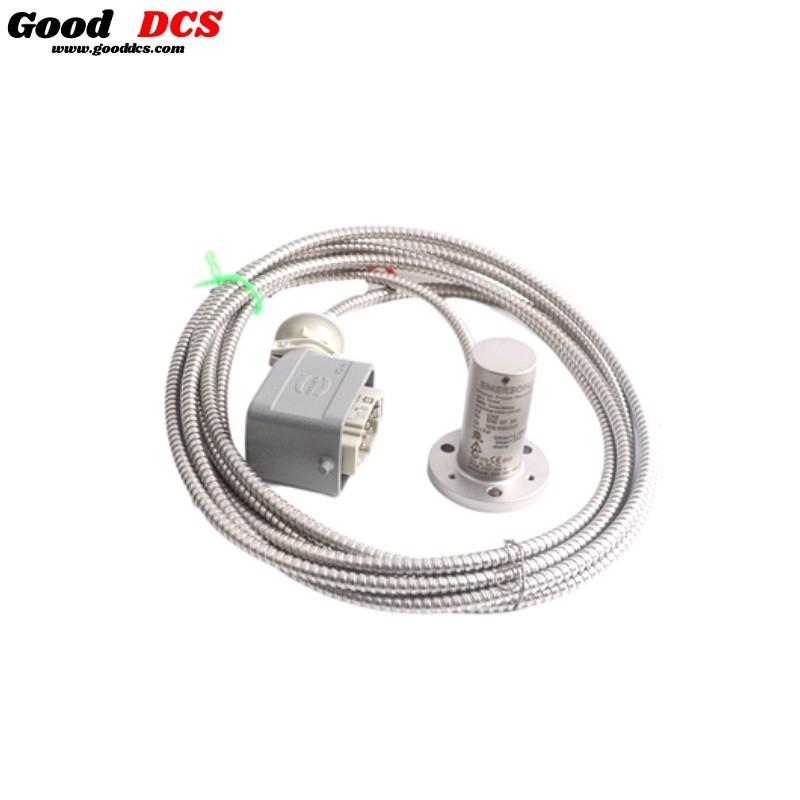

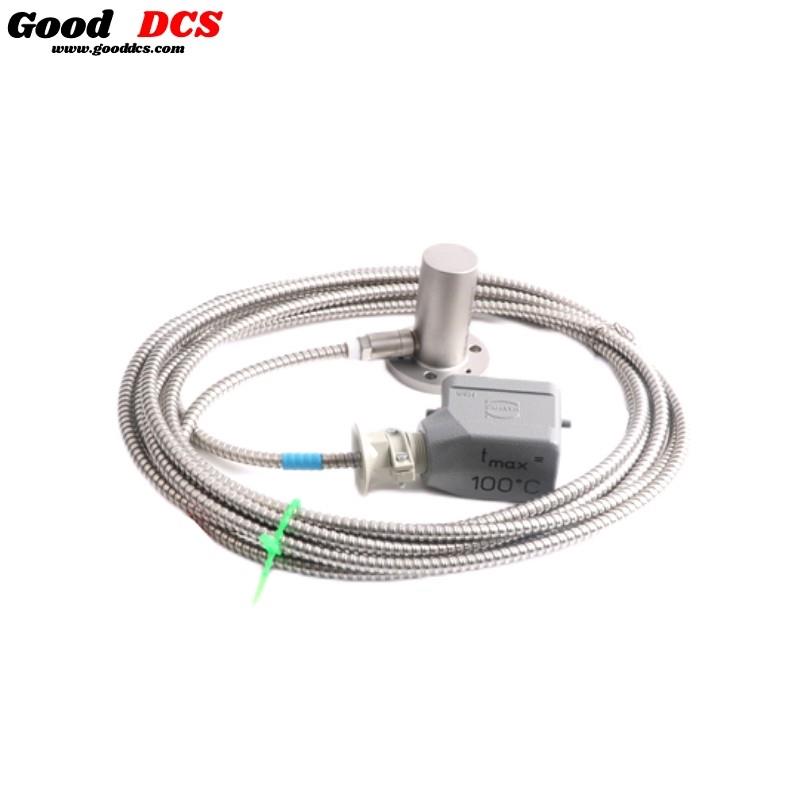

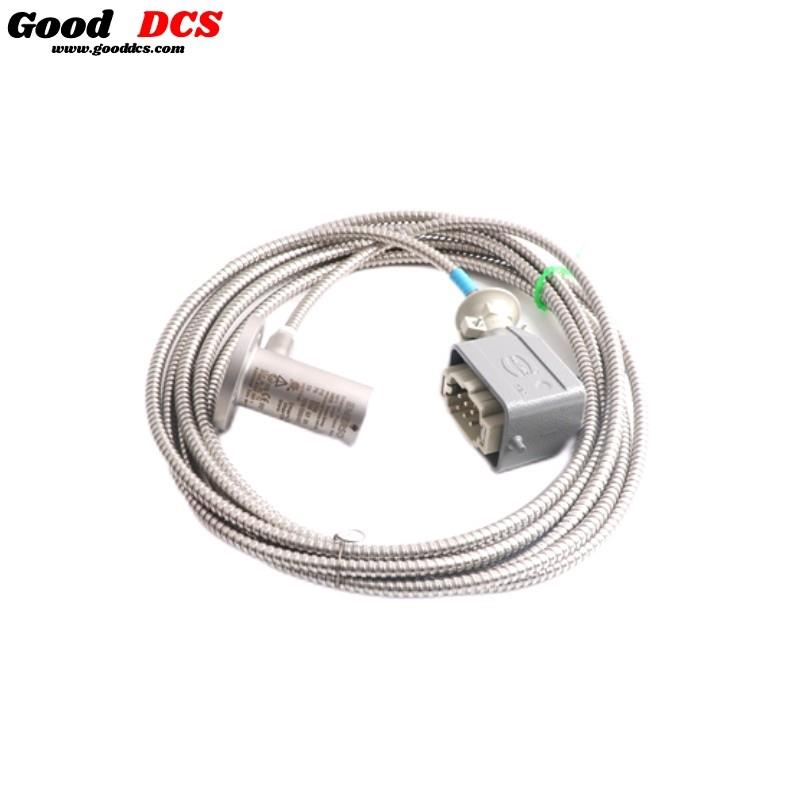

Technical Specifications – Epro PR9268/200-000 Machinery Health Sensor
| Parameter | Specification |
|---|---|
| Model | PR9268/200-000 |
| Measurement Type | Absolute vibration velocity (seismic measurement principle) |
| Measurement Direction | Vertical (Model 20x series) |
| Frequency Range | 4 Hz to 1000 Hz |
| Sensitivity | 28.5 mV/(mm/s) ±5% (at 20°C, 80 Hz, 100 kΩ load) |
| Natural Frequency | 4.5 Hz ±0.75 Hz (at 20°C, 100 kΩ load) |
| Transverse Sensitivity | 0.13 g at 110 Hz |
| Linearity Error | <2% |
| Nominal Acceleration Limit | 10 g peak-peak continuous, 20 g peak-peak short-term |
| Limit Stops | 4000 µm peak-peak |
| Operating Temperature (Sensor Body) | -20°C to +100°C (short-term up to 120°C) |
| Operating Temperature (Cable) | -40°C to +125°C (for connector) |
| Protection Class | IP55 |
| Insulation Resistance | >1 MΩ at 500 V AC |
| Electrical Resistance | 1875 Ω ±10% |
| Inductance | <90 mH |
| Capacitance to Housing | <1.2 nF |
| Recommended Max Lifting Current | 1.8 mA (for mounting deviation up to ±30°) |
| Housing Material | Al Mg Si Pb F28 |
| Connection Type | 6-pole Harting plug with mating socket |
| Cable Type | 3 × 0.5 mm² shielded, PTFE jacket, armored optional |
| Dimensions | 78 mm × 58 mm |
| Weight | 0.93 kg (approximate net weight including cable and connector) |
| Mounting | Three M6 through bores or M4 threaded holes (10 mm depth) |
