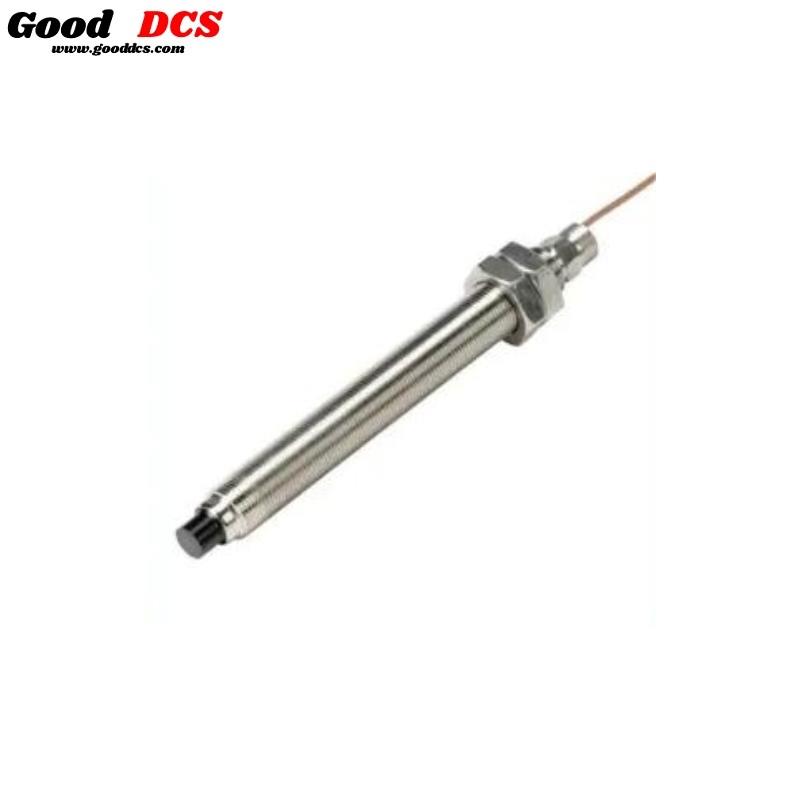

Technical Specifications – Epro PR6453/110-101 Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Model | PR6453/110-101 |
| Tip Diameter | 12.5 mm |
| Measurement Range | ±1.0 mm Position |
| Vibration Range | 50 to 500 µm Peak-to-Peak |
| Frequency Range | 0 to 20 kHz |
| Sensitivity | 8 V/mm (203.2 mV/mil) ±1.5% |
| Thread Options | M18x1, M20x1, M20x1.5, M24x1 |
| Operating Temperature Range | -35°C to +180°C (-31°F to +356°F) |
| Compliance & Certification | CE, CSA, ATEX (requires compatible converter certification details) |
| Sensor Diameter | 12.5 mm |
| Weight | 0.8 kg |
