Product Description

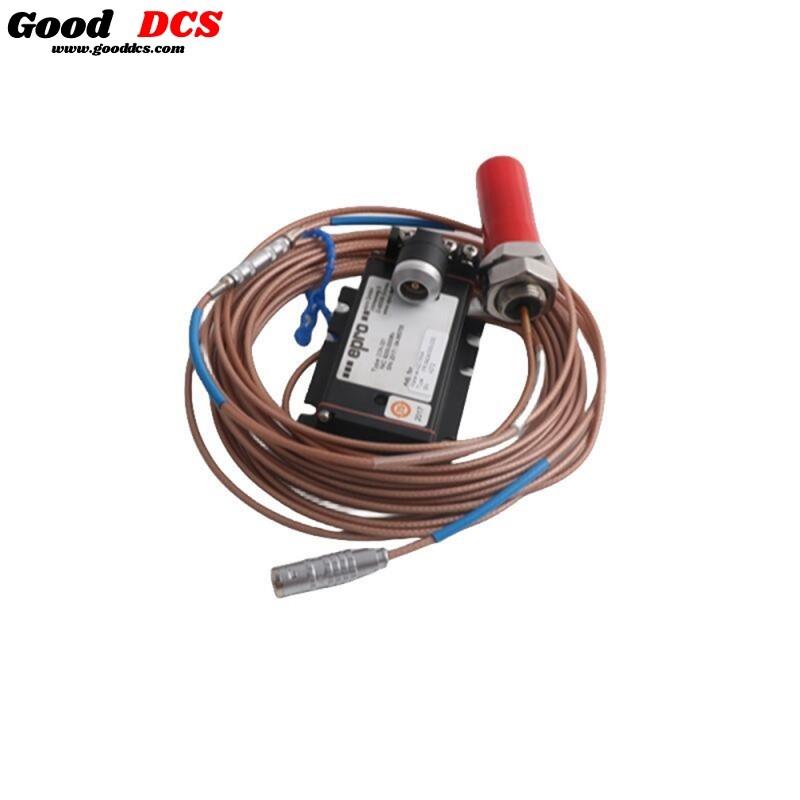

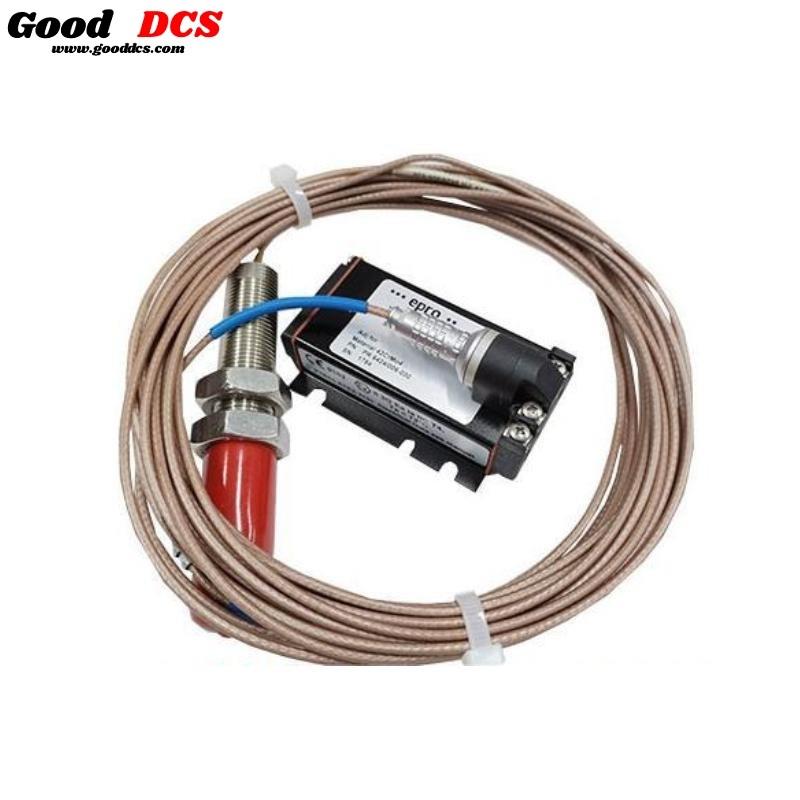

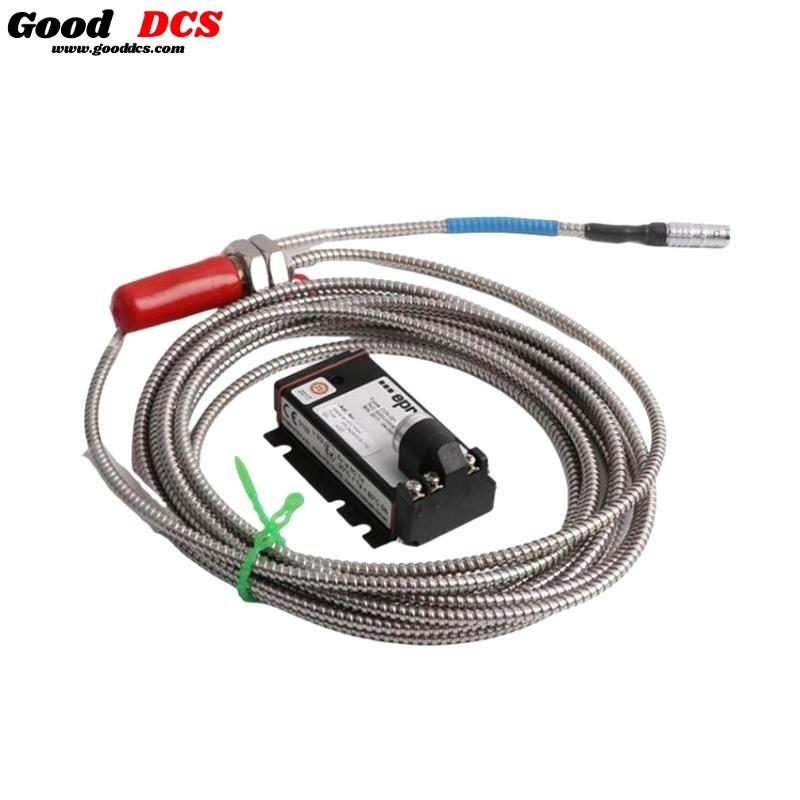

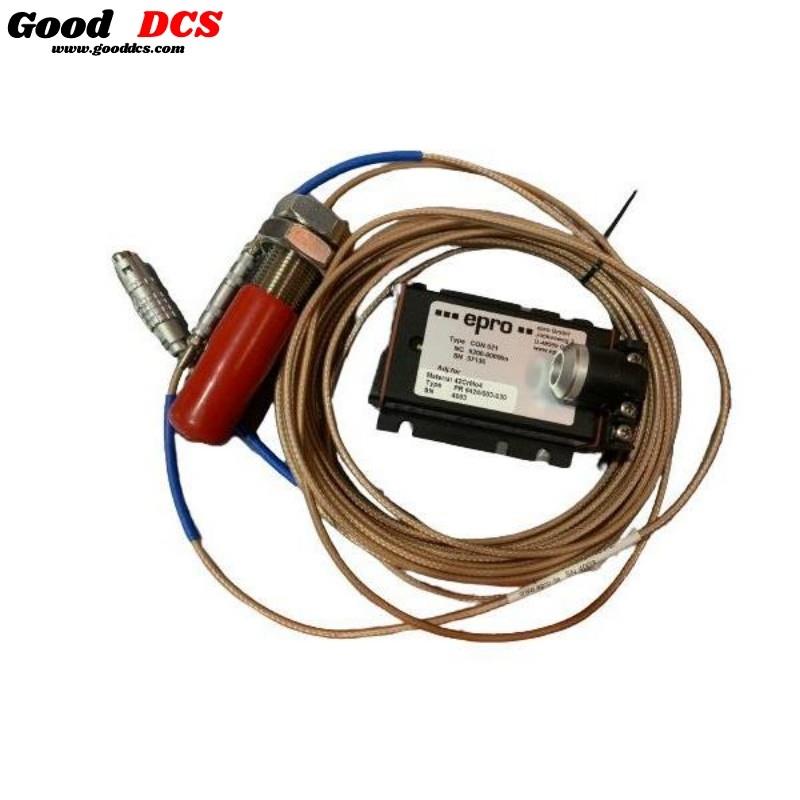

The Epro PR6424/002-030 is a precision-engineered 16mm non-contact eddy current sensor designed specifically for dynamic shaft displacement monitoring in critical rotating machinery. It is commonly applied in steam, gas, and hydro turbines, compressors, pumps, and fans. This sensor provides real-time monitoring of radial and axial shaft position, vibration, eccentricity, and speed, ensuring early detection of mechanical anomalies for predictive maintenance.
Its rugged stainless-steel body, high sensitivity, and wide temperature tolerance make it ideal for industrial environments, especially hazardous zones requiring ATEX, IECEx, and CSA compliance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PR6424/002-030 |
| Sensor Type | Eddy Current Sensor (Non-contact) |
| Application | Shaft displacement, eccentricity, speed/key, position |
| Sensitivity/Linearity | 4 V/mm (101.6 mV/mil) ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11”) Nominal |
| Static Measurement Range | ±2.0 mm (0.079”) |
| Dynamic Measurement Range | 0 – 1000 µm (0 – 0.039”) |
| Long-Term Drift | < 0.3% |
| Target Surface Material | Ferromagnetic Steel (42CrMo4 Standard) |
| Shaft Diameter | ≥80 mm |
| Maximum Surface Speed | 2,500 m/s (98,425 ips) |
| Operating Temperature | -35°C to +150°C (-31°F to +302°F) |
| Temperature Error | <4%/100K (API 670 Compliant) |
| Pressure Resistance (Sensor Head) | 10,000 hPa (145 psi) |
| Shock/Vibration | 5g @ 60Hz @ 25°C (77°F) |
| Material | Sleeve – Stainless Steel; Cable – PTFE |
| Weight | Approx. 0.2 kg (200 g) |
| Sensor Head Diameter | 16 mm |
| Certifications | CE, ATEX, IECEx, CSA, UL, ANSI |
| Cable Options | Armored/Non-armored, Length: 4m–10m |
| Connector Options | LEMO / Open end |
| Sleeve Thread | M18x1.5 or 3/4”-16 UNF |
Product Features
-
High linearity and sensitivity (4 V/mm) for precise displacement measurements
-
Wide dynamic range for monitoring fast-moving shaft behavior
-
Compatible with various converter systems
-
Durable stainless-steel construction with PTFE cable sheathing
-
Rated for use in hazardous areas with multiple global certifications
-
Available in multiple thread sizes and cable configurations
-
Long-term stability with low drift
-
Resistant to high pressure, vibration, and harsh temperature fluctuations
Product Advantages
-
Non-contact Measurement: Ensures no mechanical wear and minimal maintenance.
-
High Reliability: Certified for use in critical safety environments like API 670-compliant machinery.
-
Modular Design: Various lengths, connectors, and thread options for flexible installation.
-
Robust Construction: Operates in high-vibration and wide-temperature industrial zones.
-
Integration: Compatible with VM600 or MMS6000 monitoring systems and Emerson AMS machinery systems.
-
Certifications: Fully compliant with ATEX, IECEx, CE, and CSA for hazardous area use.
Product Applications
-
Steam turbines
-
Gas turbines
-
Hydro turbines
-
Large industrial compressors
-
High-speed rotating pumps
-
Industrial fans
-
Gearboxes and rotating equipment in oil & gas, petrochemical, and power generation
Latest Product Report Title (as of December 2024)
“Enhanced Dynamic Shaft Monitoring Using Epro PR6424 Series for Critical Rotating Equipment in Hazardous Zones – A Reliability Engineering Perspective”
Recommended Related or Same Series Models
| Model | Description | Sensor Head Diameter | Cable Length | Thread Type |
|---|---|---|---|---|
| PR6424/000-000 | Base model for standard industrial installations | 16 mm | 4 m | M18x1.5 |
| PR6424/003-030 | Extended length version with armored cable | 16 mm | 5 m | 3/4″-16 UNF |
| PR6424/005-030 | 90 mm length variant for deeper installation | 16 mm | 10 m | M18x1.5 |
| PR6424/0B1-000 | 150 mm version, non-armored with open cable end | 16 mm | 8 m | M18x1.5 |
| PR6424/0G0-030 | 200 mm sensor with armored cable and LEMO connector | 16 mm | 8 m | 3/4″-16 UNF |
| PR6424/0M0-000 | 250 mm extended depth sensor for deep access | 16 mm | 10 m | M18x1.5 |
Recommended Popular Epro Models
| Model | Description | Application Area | Sensor Type | Dimensions / Weight |
|---|---|---|---|---|
| PR6423/000-030 | 5mm Eddy Current Sensor | Small shaft machinery | Eddy Current | Ø5 mm, ~0.1 kg |
| PR6425/010-030 | 8mm Eddy Current Sensor | Mid-size machinery | Eddy Current | Ø8 mm, ~0.15 kg |
| PR6426/000-030 | 25mm High Clearance Eddy Sensor | Large turbines | Eddy Current | Ø25 mm, ~0.3 kg |
| PR6424/0R1-000 | 290 mm long, 16mm sensor for deep mounting | Deep bearing applications | Eddy Current | Ø16 mm, ~0.25 kg |
| PR6426/010-140 | Wide-range proximity sensor with armored cable | Harsh industrial zones | Eddy Current | Ø25 mm, ~0.35 kg |
| PR9268/201-100 | Speed Sensor | Rotational speed detection | Magnetic Pickup | ~Ø19 mm, ~0.18 kg |
