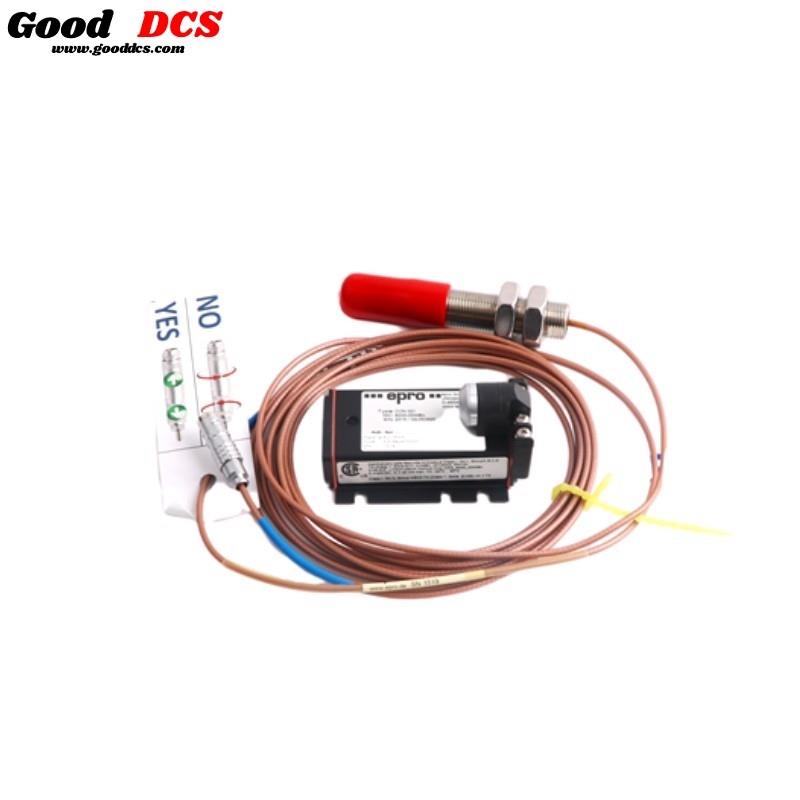

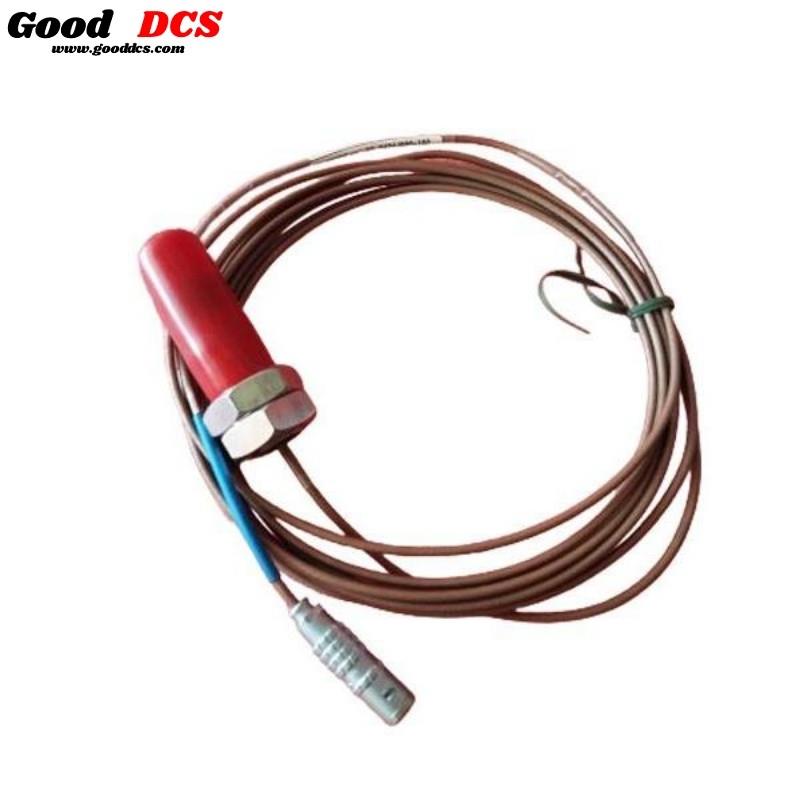

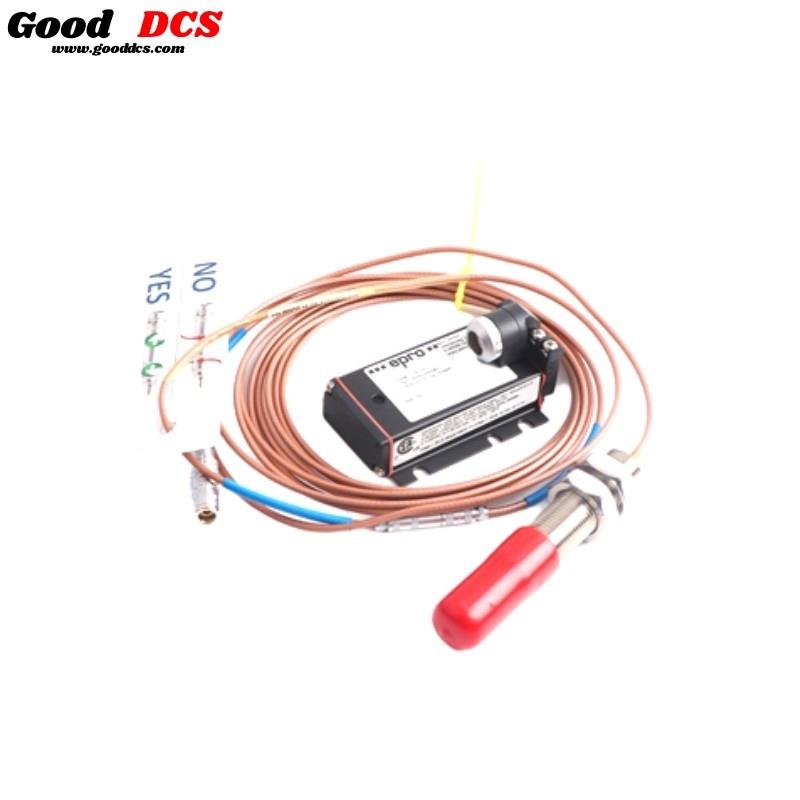

Technical Specifications – Epro PR6424/011-100 16mm Eddy Current Sensor
| Category | Specification |
|---|---|
| Sensor Type | Eddy Current Displacement Sensor |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11”) Nominal |
| Static Range | ±2.0 mm (0.079”) |
| Dynamic Range | 0 to 1,000 μm (0 to 0.039”) |
| Target Material | Ferromagnetic Steel (42CrMo4 Standard) |
| Max Surface Speed | 2,500 m/s (98,425 ips) |
| Minimum Shaft Diameter | ≥80 mm |
| Long-Term Drift | <0.3% |
| Operating Temp. Range | -35 to +150°C (-31 to +302°F) |
| Temperature Error | <4% per 100K (compliant with API 670) |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Shock & Vibration | 5g @ 60Hz @ 25°C (77°F) |
| Sensor Material | Sleeve: Stainless Steel; Cable: PTFE |
| Sensor Head Diameter | 16 mm |
| Weight | ~0.2 kg (including sensor and 1m cable, no armor) |
| Certifications | CE (EN 61326-1), ATEX (EN 60079-0/11), IEC-Ex, CSA, UL, RoHS |
| Temperature Classifications | T6: Ta ≤ 84°C / 64°C, T4: Ta ≤ 114°C, T3: Ta ≤ 160°C (depending on converter) |

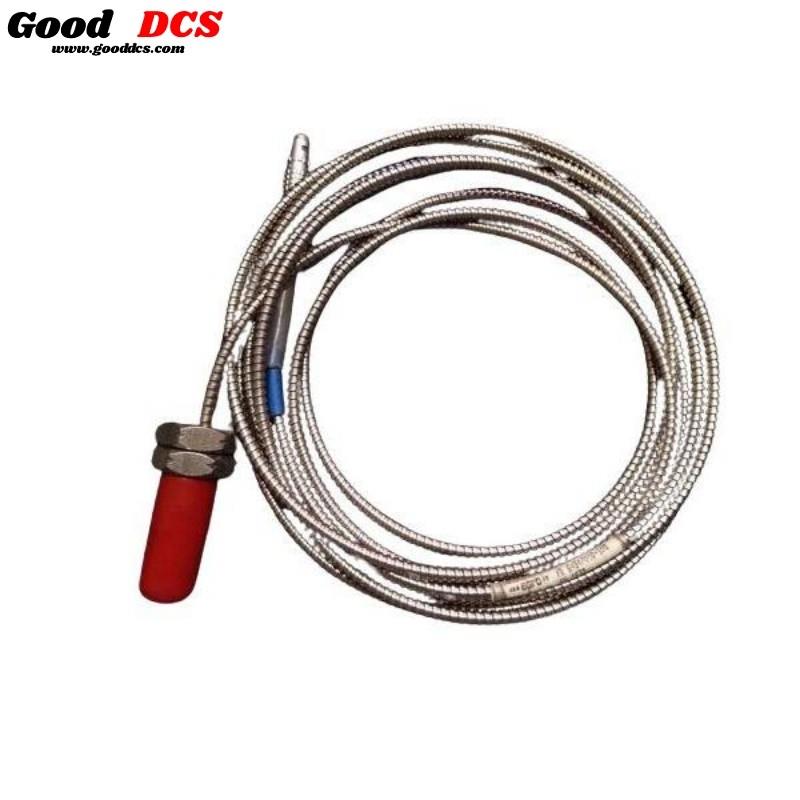

| Cable Options | Armored / Non-Armored; Cable End: LEMO / Open; Lengths: 4m / 5m / 8m / 10m |
| Mounting Thread Options | M18×1.5 or 3/4”-16 UNF |
| Compliance | API 670 Compliant |
