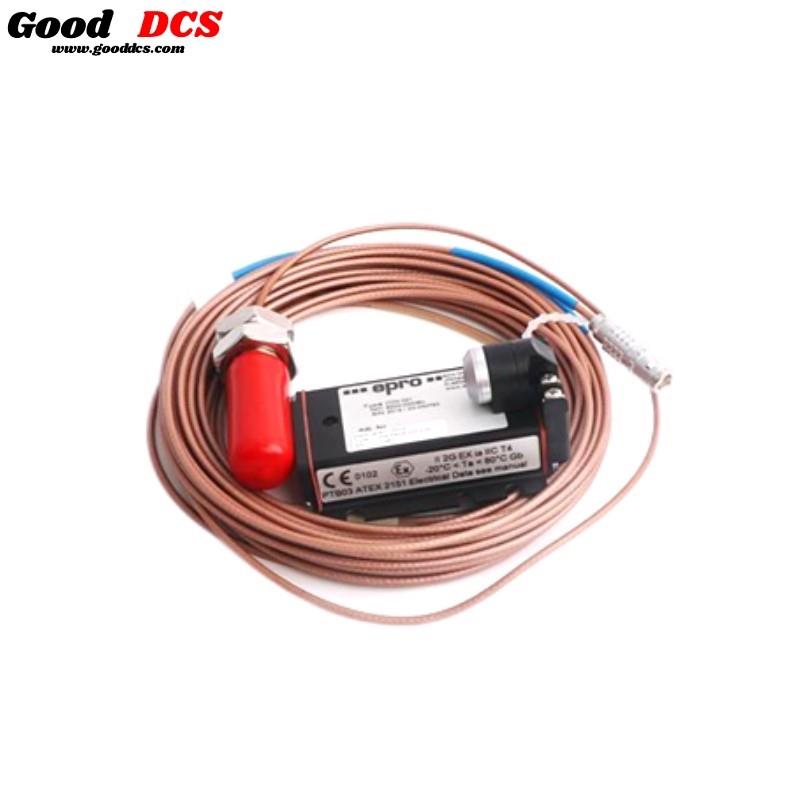

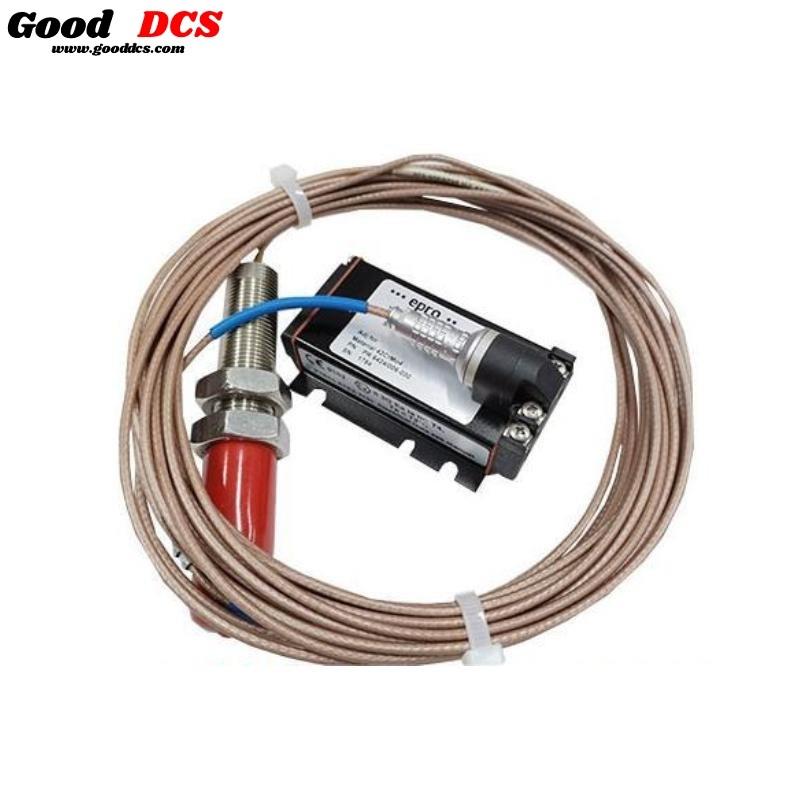

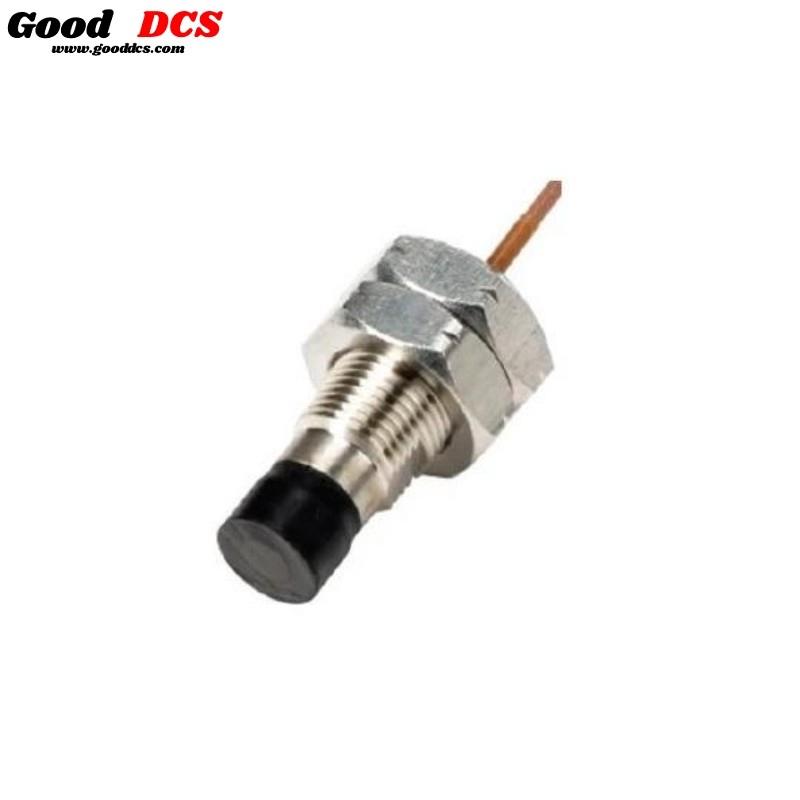

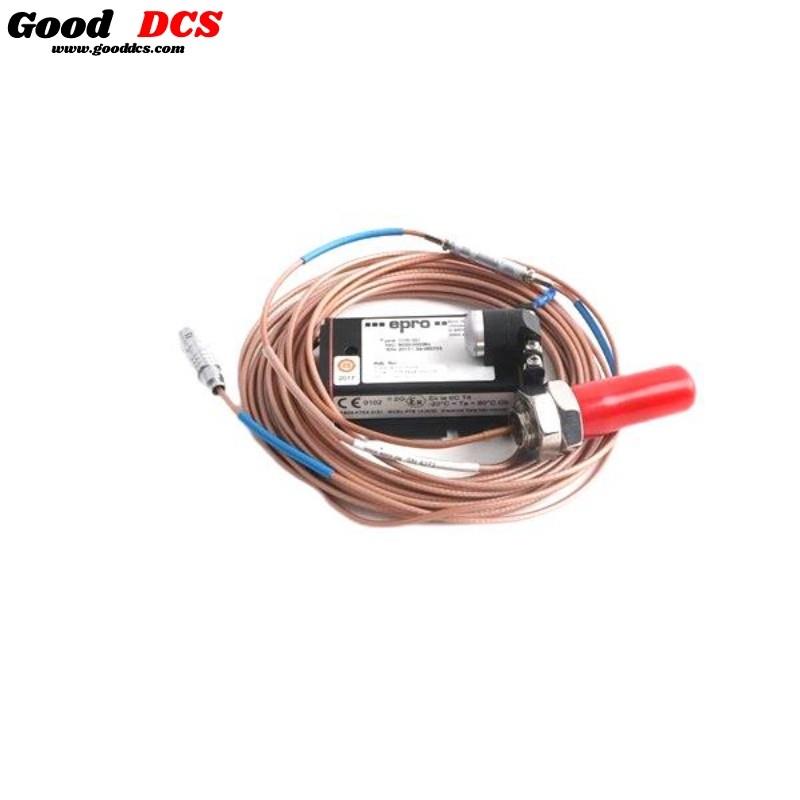

Technical Specifications – Epro PR6424/012-000 16mm Eddy Current Sensor
| Category | Specification |
|---|---|
| Sensor Type | Eddy Current, Non-contact |
| Application | Radial & axial shaft displacement, position, eccentricity, speed |
| Sensitivity | 4 V/mm (101.6 mV/mil) |
| Linearity | ≤ ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11″) |
| Static Measurement Range | ±2.0 mm (0.079″) |
| Dynamic Measurement Range | 0 to 1,000 μm (0 to 0.039″) |
| Long-Term Drift | < 0.3% |
| Target Material | Ferromagnetic steel (42CrMo4) |
| Max Surface Speed | 2,500 m/s (98,425 ips) |
| Shaft Diameter | ≥80 mm |
| Operating Temperature | -35 to +150 °C (-31 to 302 °F) |
| Temperature Error | <4% / 100 K (API 670 Compliant) |
| Shock & Vibration | 5g @ 60 Hz @ 25 °C (77 °F) |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Material | Sleeve – Stainless steel, Cable – PTFE |
| Dimensions | Sensor head diameter: 16 mm |
| Weight | Approx. 0.2 kg (including 1 m cable without armor) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (detailed standards listed below) |
| Temperature Class (Hazardous Areas) | T6: Ta ≤ 84°C (ATEX/IECEx), T6: Ta ≤ 64°C (CSA) |
| Cable Options | Armored/Unarmored, LEMO/Open ends, various lengths |
