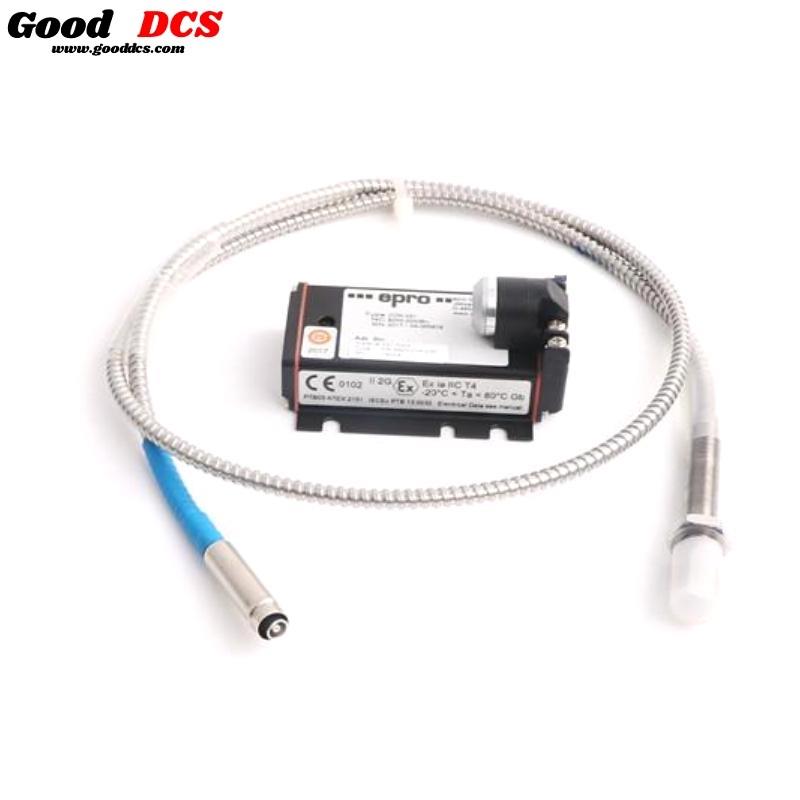

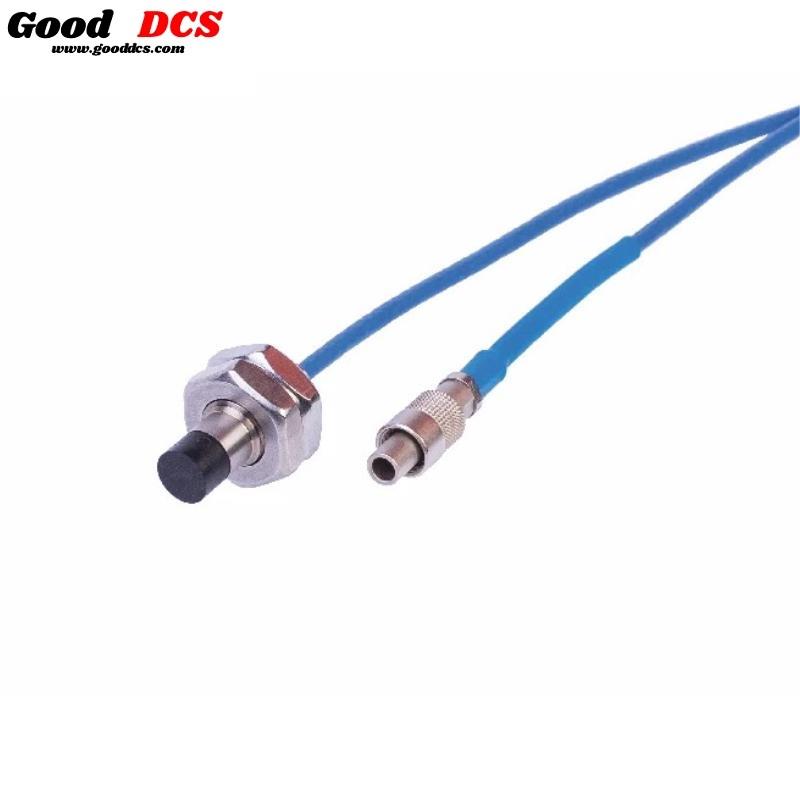

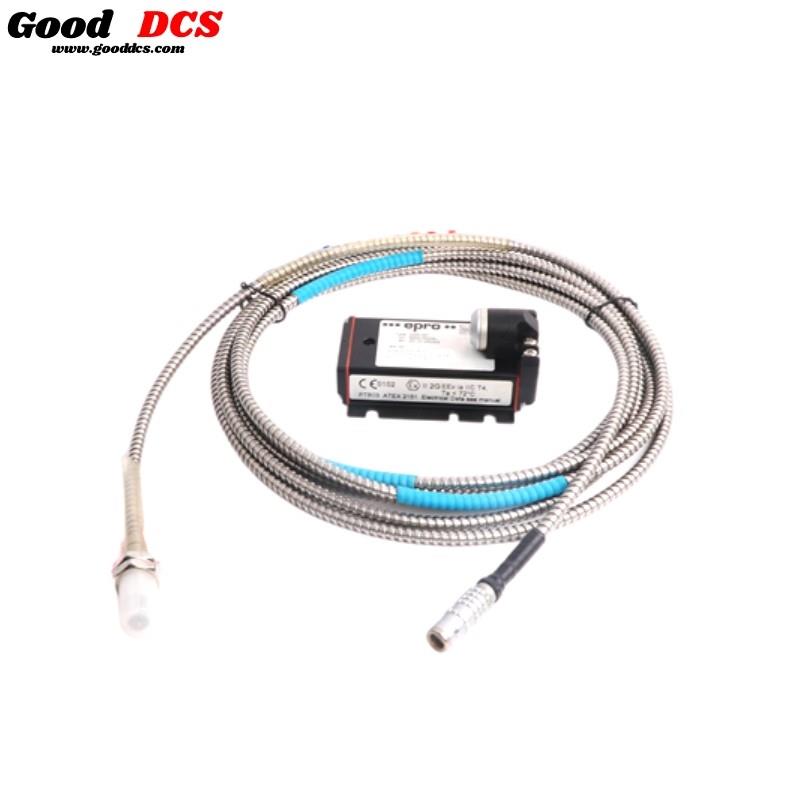

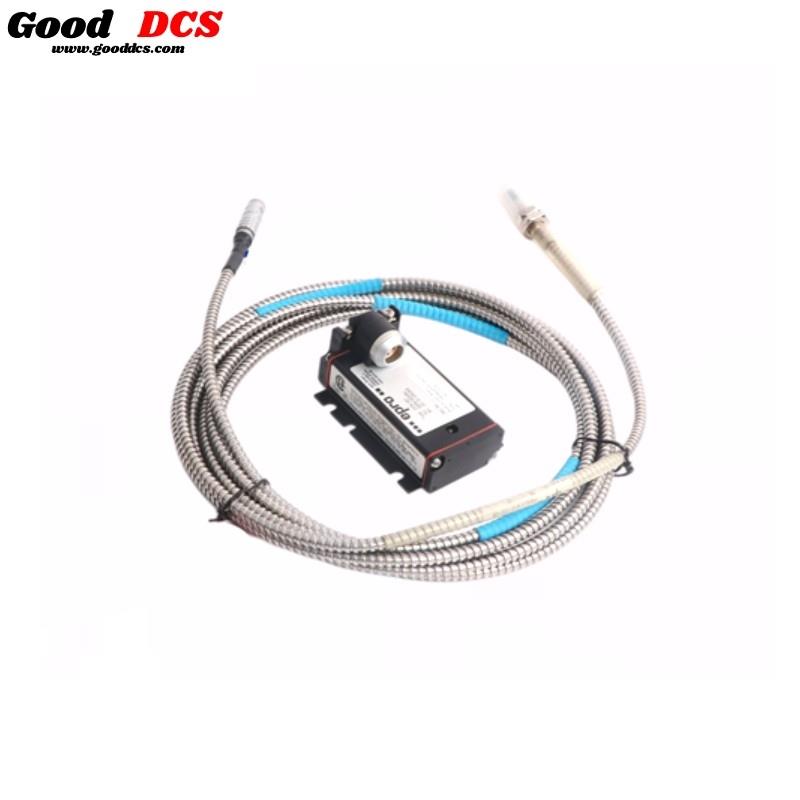

Product Overview: EPRO PR6423/10R-131 Eddy Current Sensor (8mm)
The EPRO PR6423/10R-131 is a non-contact Eddy Current Sensor engineered for continuous monitoring of radial and axial shaft displacement in rotating machinery. This sensor is tailored for use in steam turbines, gas turbines, hydro turbines, compressors, gearboxes, pumps, and industrial fans, ensuring precision measurement of shaft position, vibration (dynamic displacement), eccentricity, and rotational speed. The PR6423/10R-131 belongs to EPRO’s PR6423 series and features an 8 mm tip diameter with a reverse mount configuration, brass/nickel-plated connectors, and compatibility with Emerson’s MMS3000 system.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | PR6423/10R-131 |
| Sensor Type | Eddy Current (Non-contact displacement sensor) |
| Tip Diameter | 8 mm |
| Mounting Type | Reverse mount (10R variant) |
| Thread Type | 3/8”-24 UNF |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ± 5% (0–45°C) |
| Deviation from Best Fit Straight Line | ±0.025 mm (±1 mil) (0–45°C) |
| Minimum Shaft Diameter | 25 mm (0.98 in) |
| Target Material | 42CrMo4 (AISI/SAE 4140) Standard |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Case Material | Stainless Steel |
| Cable Material | PTFE (Polytetrafluoroethylene) |
| Connector Material | Brass, nickel-plated |
| Cable Diameter | 2.8 mm (Standard), 6 mm (Armored) |
| Min. Bending Radius (Standard Cable) | 25 mm (0.984 in) |
| Min. Bending Radius (Armored Cable) | 35 mm (1.378 in) |
| Operating Temperature (Sensor + Cable) | -35°C to +180°C (-31°F to 356°F) |
| Operating Temperature (Connector) | -35°C to +150°C (-31°F to 302°F) |
| Protection Rating | IP66 |
| Compliance | CE, ATEX, IEC-Ex, CSA, UL |
| Intrinsic Safety Classification | ATEX / IECEx / CSA: T6, T4, T3 (depending on ambient temp) |
| Dimensions | Case thread: M10x1 or 3/8”-24 UNF, SW: 11 mm / 7/16 in |
| Weight | Approx. 0.1 kg (100 g) |
Key Features
-
Non-contact eddy current sensing principle ensuring minimal mechanical wear.
-
Wide temperature range operation suitable for harsh industrial environments.
-
Reverse mount capability for flexible installation.
-
Rugged stainless steel housing with PEEK tip and PTFE cable for maximum durability.
-
Precision performance with high linearity and low deviation.
-
Compatibility with various target materials, particularly ferromagnetic steels.
Advantages
-
High Measurement Accuracy: Ideal for high-precision displacement and vibration monitoring.
-
Rugged Construction: Designed to endure severe industrial conditions such as extreme temperatures and mechanical stress.
-
Wide Compliance: Certified for use in hazardous areas across global markets (ATEX, IECEx, CSA, UL).
-
Flexible Installation Options: Available in multiple mounting and thread configurations.
-
Low Maintenance: Non-contact operation reduces physical wear and tear, ensuring long service life.
-
Reverse Mount Design: Facilitates installation in space-constrained or specialized configurations.
Applications
-
Turbomachinery (steam/gas turbines)
-
Compressors (axial and centrifugal)
-
Industrial fans
-
Gearboxes and bearings
-
Pumps (centrifugal, screw, or reciprocating)
-
Condition monitoring systems
-
Rotational speed and eccentricity analysis
-
Machinery protection systems
Latest Industry Report Headlines
-
“Emerson Expands EPRO PR6423 Series for Extreme Vibration Monitoring in Hazardous Areas – December 2024”
-
“Enhanced Radiation-Resistant PR6423 Variants Now Available for Nuclear and Defense Applications – Q4 2024”
-
“Global Market Sees Surge in PR6423 Deployments in Hydrocarbon Sector for Predictive Maintenance”
-
“EPRO Sensors Lead Condition Monitoring in Next-Gen Digital Twin Turbomachinery Platforms”
Related Models in the Same Series or Category
| Model | Mount Type | Thread | Armor Cable | Cable Length Options | Weight | Tip Diameter |
|---|---|---|---|---|---|---|
| PR6423/00 | Standard Mount | M10x1 | No | 4m, 5m, 8m, 10m | 0.1 kg | 8 mm |
| PR6423/01 | Standard Mount | M10x1 | Yes | 4m, 5m, 8m, 10m | 0.1 kg | 8 mm |
| PR6423/03 | Reverse Mount | M10x1 | Yes | 4m, 5m, 8m, 10m | 0.1 kg | 8 mm |
| PR6423/11 | Reverse Mount | 3/8”-24 UNF | Yes | 4m, 5m, 8m, 10m | 0.1 kg | 8 mm |
| PR6423/13 | Reverse Mount | 3/8”-24 UNF | Yes | 4m, 5m, 8m, 10m | 0.1 kg | 8 mm |
| PR6423-RAD | Radiation-Proof | M10x1 or 3/8” UNF | No | 1m | 0.1 kg | 8 mm |
Popular EPRO Models
| Model | Description | Application | Tip Diameter | Weight | Mount Type |
|---|---|---|---|---|---|
| PR6423/00 | 8 mm ECS Sensor, M10x1, Std. Mount, no armor | General turbine monitoring | 8 mm | 0.1 kg | Standard |
| PR6423/11 | 8 mm ECS Sensor, 3/8”-24 UNF, Reverse Mount, armor | Hazardous area gearboxes | 8 mm | 0.1 kg | Reverse |
| PR6424/01 | 5 mm ECS Sensor, M8x1, Armored | Small shaft applications | 5 mm | 0.08 kg | Standard |
| PR6424/11 | 5 mm ECS Sensor, Reverse Mount, armored | High-precision small motors | 5 mm | 0.08 kg | Reverse |
| PR6425/00 | 11 mm ECS Sensor, M14x1.5, Std. Mount | Large turbines and compressors | 11 mm | 0.12 kg | Standard |
| PR6426/10 | 25 mm ECS Sensor, 1/2”-20 UNF, Reverse Mount | Large axial shaft measurement | 25 mm | 0.25 kg | Reverse |
