Product Overview

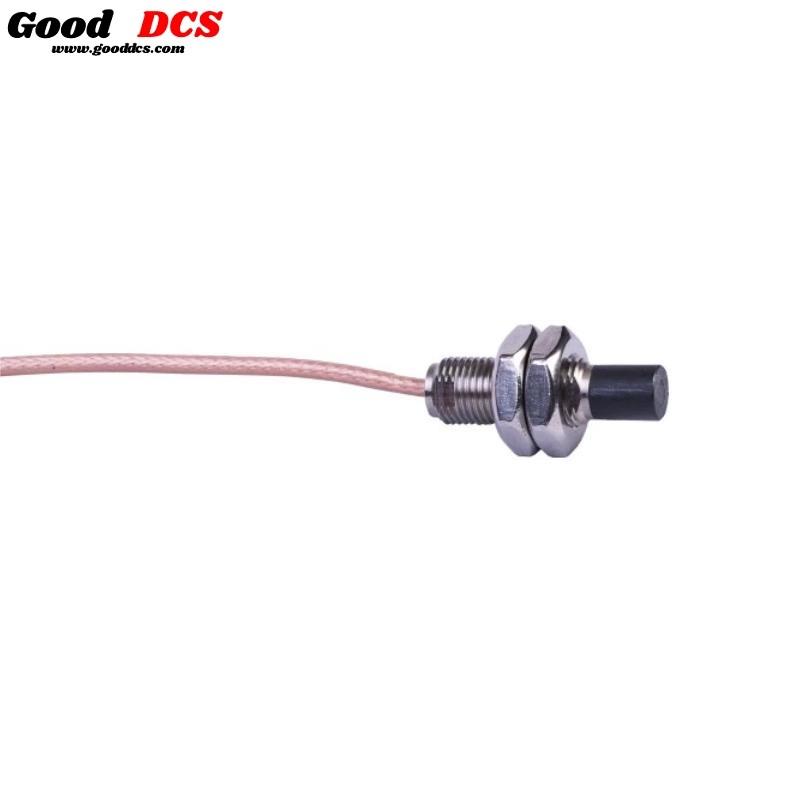

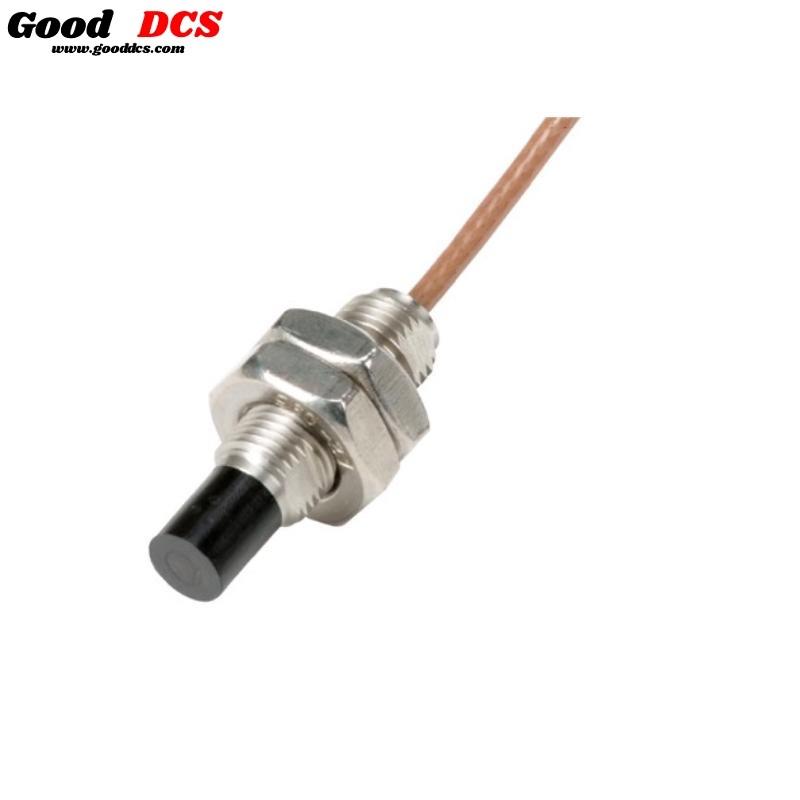

The Epro PR6423/10R-010 is a high-precision 8 mm Eddy Current Sensor engineered for non-contact measurement of radial and axial shaft displacement, eccentricity, and rotational speed. Designed to meet the demanding requirements of rotating machinery such as steam turbines, gas turbines, hydro turbines, compressors, gearboxes, fans, and pumps, this sensor ensures reliable vibration monitoring and condition-based maintenance in critical environments.
This specific variant features 3/8″-24 UNF threads, reverse mounting orientation (denoted by “R”), and is constructed with industrial-grade materials such as stainless steel housing and a PEEK sensor tip to withstand harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Eddy Current Proximity Sensor (Non-contact) |
| Model Number | PR6423/10R-010 |
| Tip Diameter | 8 mm |
| Measurement Range | 2 mm (80 mils) linear |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% (0 to 45°C) |
| Deviation from Straight Line (DSL) | ±0.025 mm (±1 mil) (0 to 45°C) |
| Minimum Shaft Diameter | 25 mm (0.79 in) |
| Target Material | 42CrMo4 (AISI/SAE 4140) standard; others upon request |
| Mounting Thread | 3/8″-24 UNF |
| Mounting Type | Reverse mount |
| Operating Temperature (Sensor) | -35°C to +180°C (-31°F to +356°F) |
| Operating Temperature (Cable) | -35°C to +150°C (-31°F to +302°F) |
| Protection Class | IP66 (IEC 60529) |
| Material – Sensor Tip | PEEK (Polyether Ether Ketone) |
| Material – Sensor Case | Stainless Steel |
| Material – Cable | PTFE (Polytetrafluoroethylene) |
| Material – Connector | Brass, Nickel-plated |
| Sensor Weight | Approx. 0.1 kg (100 g) including 1 m cable |
| Cable Diameter | Standard: 2.8 mm; Armored: 6 mm |
| Cable Minimum Bending Radius | Standard: 25 mm; Armored: 35 mm |
| Certification | CE, ATEX, IECEx, CSA, UL (details below) |
Compliance and Certifications
-
CE Directives: 2014/30/EU, 2014/34/EU, 2011/65/EU
-
ATEX: EN 60079-0 / EN 60079-11
-
IECEx: IEC 60079-0 / IEC 60079-11 / IEC 60079-26
-
CSA: CSA-C22.2, UL913, UL1604, UL61010-1
-
Temperature Classifications:
-
T6: Ta ≤ 64°C
-
T4: Ta ≤ 114°C
-
T3: Ta ≤ 160°C
-
Key Features
-
Precision non-contact shaft vibration measurement
-
Reverse mount capability for tight installation spaces
-
Stainless steel housing with high mechanical durability
-
Sensor tip made of high-performance PEEK for thermal stability
-
Wide temperature operating range
-
High linearity and sensitivity
-

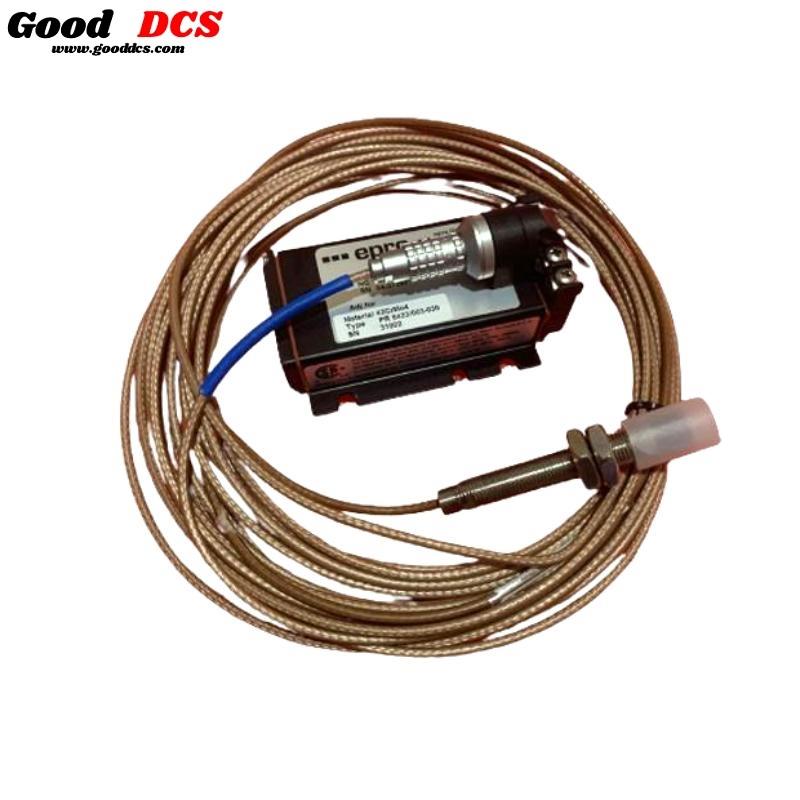

Compatible with a variety of Epro signal converters
Advantages
-
Accurate, real-time condition monitoring
-
Resistant to oil, gas, and high-temperature environments
-
Reduces unplanned downtime via early fault detection
-
Optimized for integration with Epro monitoring systems
-
Certified for use in hazardous areas (ATEX, CSA, IECEx compliant)
-
High resistance to electromagnetic interference (EMI)
Application Fields
-
Steam Turbines
-
Gas Turbines
-
Hydro Turbines
-
Centrifugal Compressors
-
Industrial Pumps
-
Gearboxes
-
Blowers and Fans
-
Motor Bearings and Shaft Monitoring
Latest Product Report Title (as of December 2024)
“Enhanced Shaft Monitoring with Epro PR6423 Series Sensors for Critical Rotating Machinery”
(Published by Emerson Process Management, December 2024)
Related Models in the PR6423 Series
| Model Number | Mounting Thread | Mounting Type | Armored Cable | Tip Diameter | Weight |
|---|---|---|---|---|---|
| PR6423/00 | M10x1 | Standard | No | 8 mm | 0.1 kg |
| PR6423/01 | M10x1 | Standard | Yes | 8 mm | 0.1 kg |
| PR6423/03 | M10x1 | Reverse | Yes | 8 mm | 0.1 kg |
| PR6423/10 | 3/8″-24 UNF | Standard | No | 8 mm | 0.1 kg |
| PR6423/11 | 3/8″-24 UNF | Standard | Yes | 8 mm | 0.1 kg |
| PR6423/13 | 3/8″-24 UNF | Reverse | Yes | 8 mm | 0.1 kg |
Popular Epro Models
| Model Number | Function | Tip Diameter | Mount Type | Thread | Weight |
|---|---|---|---|---|---|
| PR6423/10R-010 | Eddy Current Sensor | 8 mm | Reverse | 3/8″-24 UNF | 0.1 kg |
| PR6424/000-100 | 5 mm Eddy Current Sensor | 5 mm | Standard | M8x1 | 0.08 kg |
| PR6426/000-100 | 11 mm Eddy Current Sensor | 11 mm | Standard | M14x1.5 | 0.12 kg |
| CON021/916-000 | Signal Converter | – | – | – | 0.3 kg |
| CON041/916-000 | Advanced Signal Converter | – | – | – | 0.3 kg |
| PR9268/301-000 | Speed Sensor | – | Flange Mount | – | 0.4 kg |
