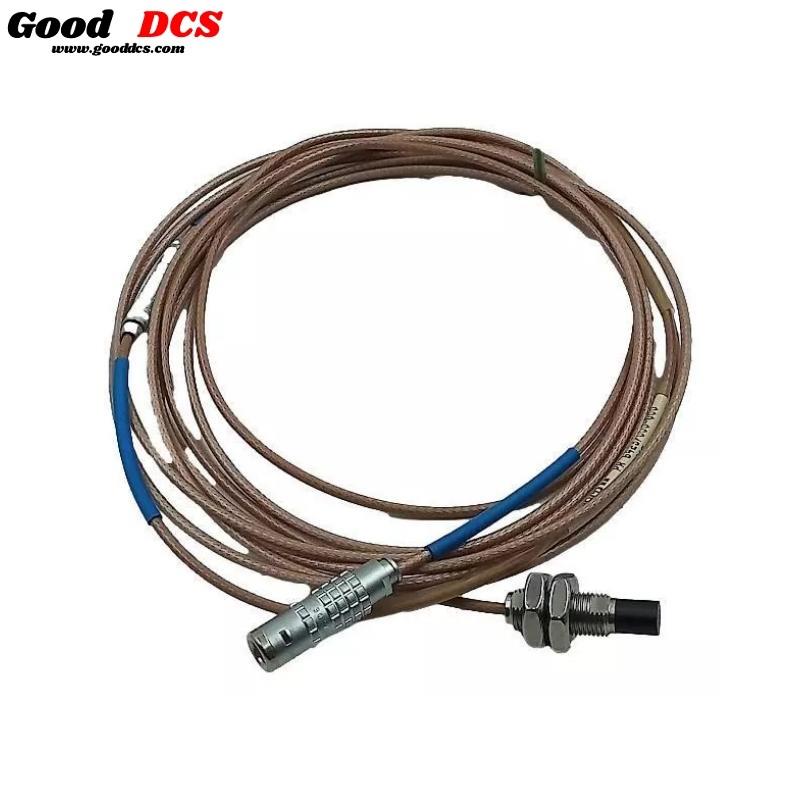

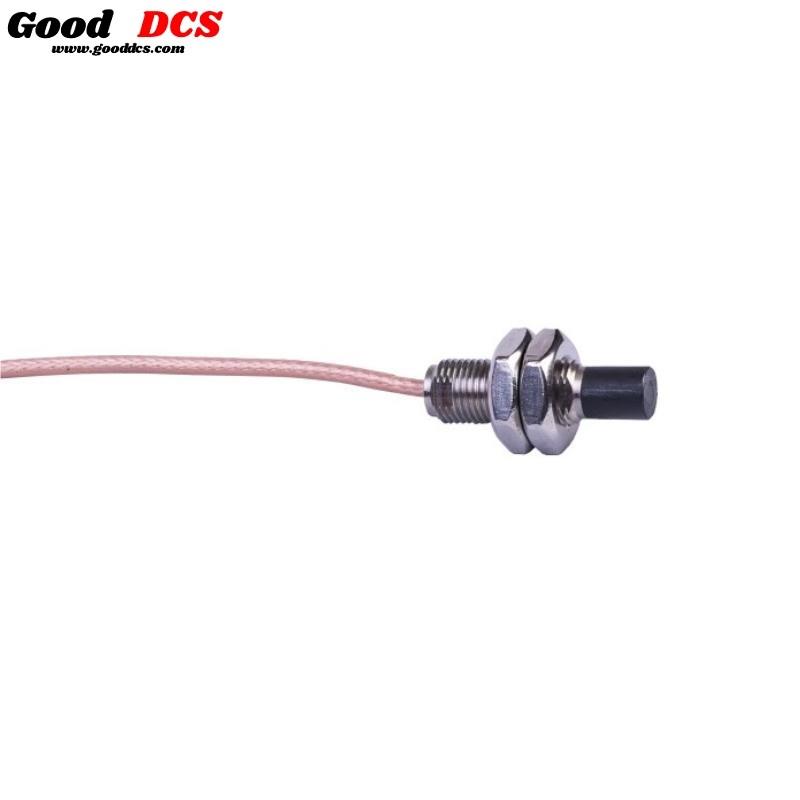

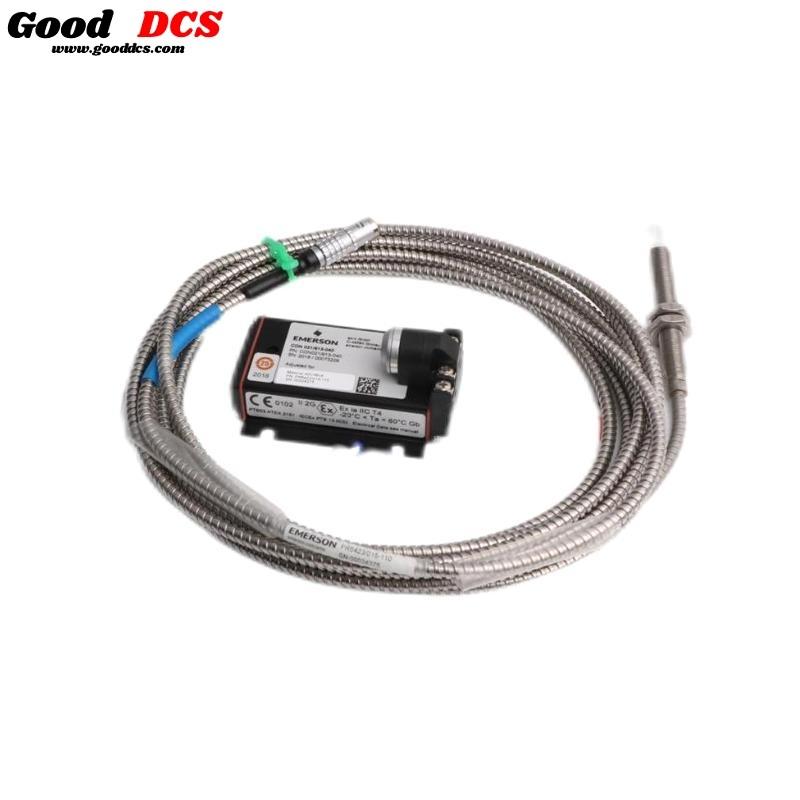

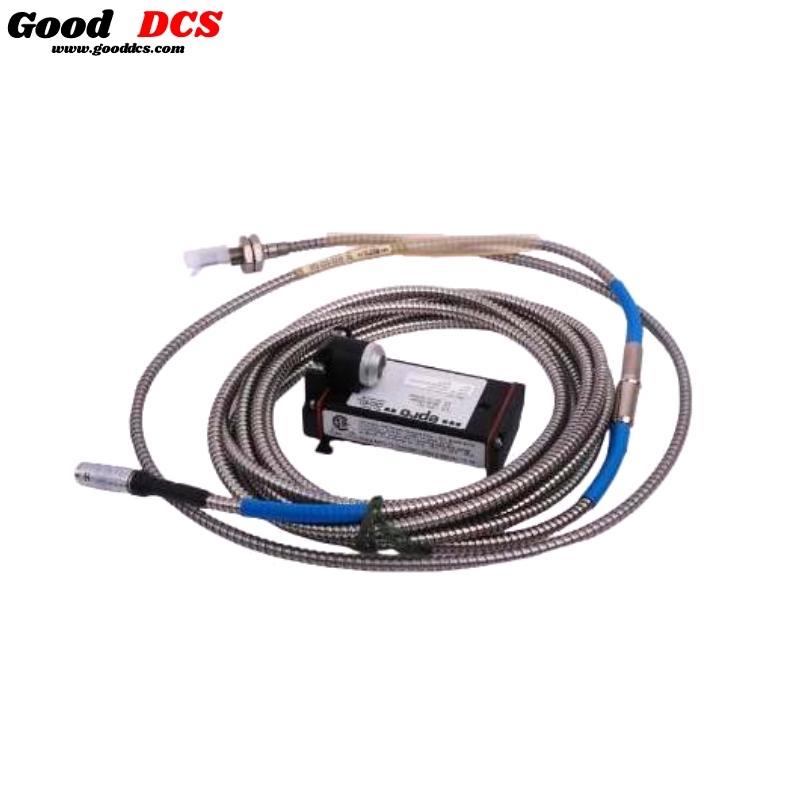

Epro PR6423/012-100 8mm Eddy Current Sensor
The Epro PR6423/012-100 8mm Eddy Current Sensor is a high-performance, non-contact sensor primarily used in critical turbomachinery applications. It is designed for use in monitoring systems in industries such as power generation, aerospace, and mechanical engineering. This sensor measures radial and axial shaft dynamic displacement, position, eccentricity, and speed, making it highly valuable for monitoring steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.
Product Specifications
| Parameter | Value |
|---|---|
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | ISO: 8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C) |
| Deviation from Best Fit Line (DSL) | ± 0.025 mm (± 1 mil) (0 to 45°C) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | Sensor incl. 1m Cable: -35 to +180°C |
| Weight | 0.1 kg |
| Sensor Tip Material | PEEK Polyether Ether Ketone |
| Cable Material | PTFE Polytetrafluoroethylene |
| Connector Material | Brass, nickel-plated |
| Sensor Tip Diameter | 8 mm |
Product Features
-
Non-contact measurement: Ideal for applications where physical contact with the moving part would lead to wear or operational issues.
-
High linearity and precision: Offers an excellent linear measurement range and minimal deviation, ensuring high accuracy in demanding environments.
-
Wide operating temperature range: Can operate effectively across a broad temperature spectrum from -35°C to 180°C, suitable for harsh industrial environments.
-
Corrosion-resistant: Constructed with materials such as PEEK and stainless steel, ensuring durability even in corrosive settings.
-
Compact design: The 8mm sensor head diameter ensures easy integration into tight spaces.
Product Advantages
-
Enhanced performance in critical systems: The sensor’s ability to detect small displacements and changes in position makes it crucial for monitoring rotating machinery.
-
Versatility in harsh environments: With IP66 protection and a wide operating temperature range, the sensor performs reliably in severe environmental conditions.
-
Long-lasting durability: Resistant to corrosion and high-temperature damage, it provides a long operational life in challenging environments.
-
Intrinsically safe for hazardous areas: Certified for use in explosive or hazardous areas, meeting global safety standards including ATEX, IEC-Ex, and CSA.
Product Applications
The Epro PR6423/012-100 Eddy Current Sensor is widely used in:
-
Turbomachinery: Monitoring turbine shafts for dynamic displacement and eccentricity.
-
Gearboxes and Compressors: Ensuring precise control and monitoring of rotating machinery.
-
Pumps and Fans: Detecting any displacement issues to prevent system failures.
-
Other rotating machinery: Vital in any application requiring non-contact displacement, position, and speed measurement.
Latest Reports on the Epro PR6423
-
“Enhanced Accuracy in Monitoring Turbomachinery with Epro PR6423 Sensors”
-
“Improved Operational Efficiency through Epro Eddy Current Sensors in Power Generation”
-
“Ensuring Safety in Hazardous Environments with Epro PR6423 Sensor Technology”
Recommended Related Models
| Model | Target Diameter | Case Thread | Armored Cable | Cable Length | Connector Type | Weight |
|---|---|---|---|---|---|---|
| PR6423/00 | 8 mm | M10x1 | No | 25 mm | Lemo | 100 grams |
| PR6423/01 | 8 mm | M10x1 | Yes | 25 mm | Lemo | 100 grams |
| PR6423/10 | 8 mm | 3/8”-24 UNF | No | 25 mm | Lemo | 100 grams |
| PR6423/11 | 8 mm | 3/8”-24 UNF | Yes | 25 mm | Lemo | 100 grams |
| PR6423/13 | 8 mm | 3/8”-24 UNF | Yes | 35 mm | Lemo | 100 grams |
| PR6423/01-R | 8 mm | M10x1 | Yes | 25 mm | Open Cable End | 100 grams |
Popular Epro Models
| Model | Measurement Type | Shaft Diameter | Operating Temp Range | Weight | Protection Class |
|---|---|---|---|---|---|
| PR6423/012-100 | Eddy Current Sensor | 25 mm (0.79”) | -35°C to +180°C | 100 grams | IP66 |
| PR6423/013-100 | Eddy Current Sensor | 30 mm (1.18”) | -40°C to +180°C | 110 grams | IP66 |
| PR6423/014-100 | Eddy Current Sensor | 20 mm (0.79”) | -35°C to +150°C | 95 grams | IP67 |
| PR6423/015-100 | Eddy Current Sensor | 15 mm (0.59”) | -30°C to +180°C | 90 grams | IP66 |
| PR6423/011-100 | Eddy Current Sensor | 40 mm (1.57”) | -35°C to +200°C | 115 grams | IP66 |
| PR6423/012-200 | Eddy Current Sensor | 25 mm (0.79”) | -40°C to +180°C | 100 grams | IP66 |
