Product Parameters

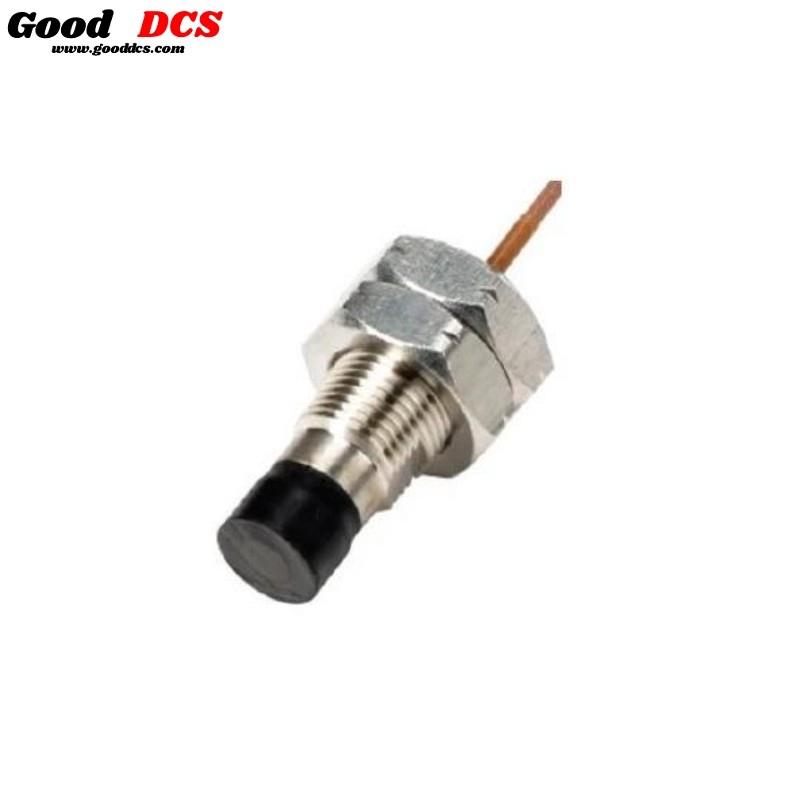

PR6424/010-140 – 16mm Eddy Current Sensor
| Parameter |
Specification |
|---|
| Sensor Type |
Non-contact Eddy Current Displacement Sensor |
| Sensitivity / Linearity |
4 V/mm (101.6 mV/mil) ≤ ±1.5% |
| Static Measurement Range |
±2.0 mm (0.079″) |
| Dynamic Measurement Range |
0 to 1,000 μm (0 to 0.039″) |
| Air Gap (Center) |
Approx. 2.7 mm (0.11″) nominal |
| Target Material |
Ferromagnetic Steel (42CrMo4 Standard) |
| Maximum Shaft Surface Speed |
2,500 m/s (98,425 ips) |
| Shaft Diameter |
≥80 mm |
| Long-Term Drift |
<0.3% |
| Operating Temperature Range |
-35 to 150°C (-31 to 302°F) |
| Temperature Error |
<4% / 100K (API 670 Compliant) |
| Pressure Resistance |
10,000 hPa (145 psi) |
| Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
| Housing Material |
Sleeve – Stainless Steel, Cable – PTFE |
| Weight |
Approx. 0.8 kg (Sensor + 1m Cable) |
| Dimensions (Probe Head) |
16 mm diameter |
| Certifications |
CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Rating |
Depends on converter; Temp Class: T6, T4, T3 based on ambient |

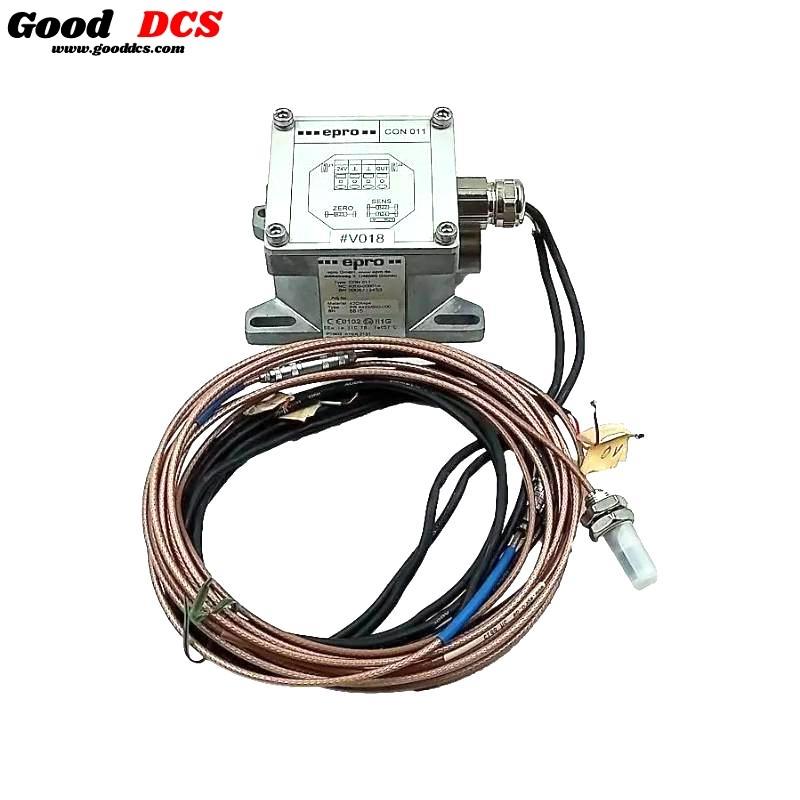

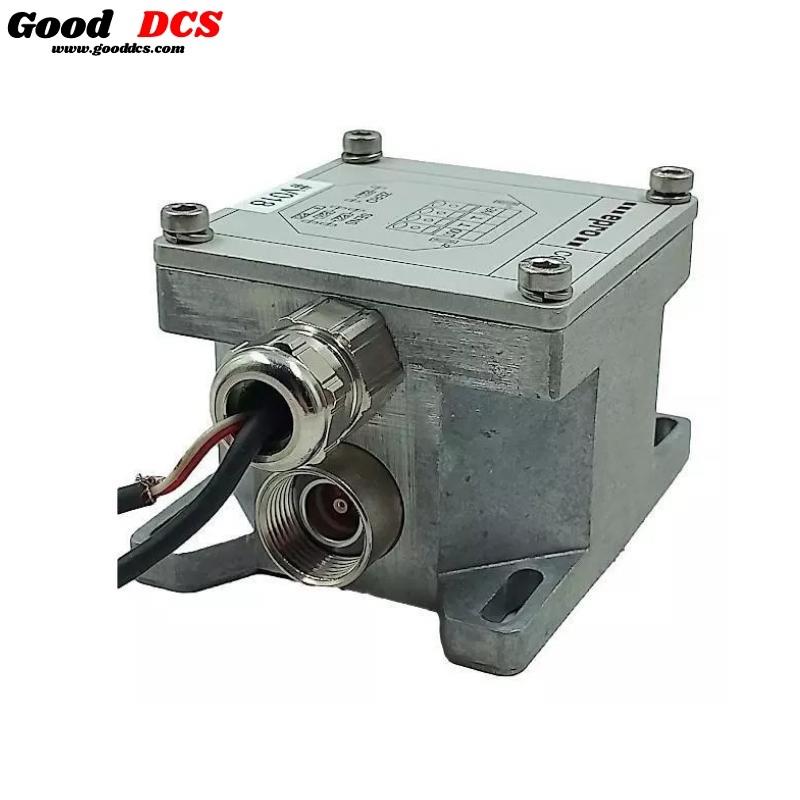

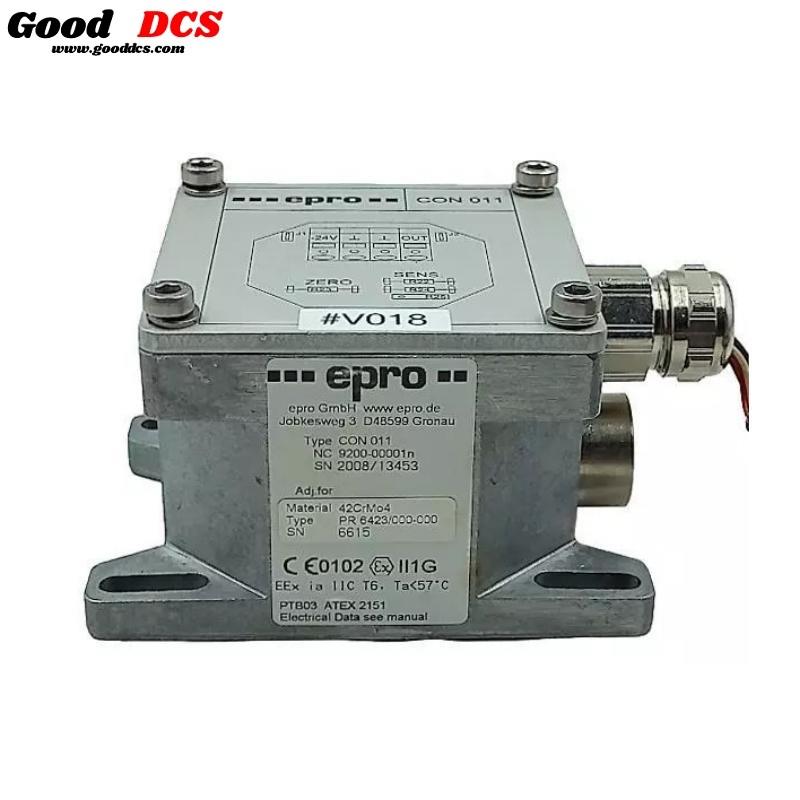

CON011 – Eddy Current Signal Converter
| Parameter |
Specification |
|---|
| Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Response (-3 dB) |
0 – 20,000 Hz |
| Rise Time |
<15 µs |
| Power Supply Voltage |
-23V to -32V |
| Output Voltage Range |
-4V to -20V (or -2V to -18V depending on supply) |
| Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
| Protection Class |
IP65 |
| Shock and Vibration |
5g @ 60 Hz @ 25°C |
| Housing Material |
GD-ALSi9Cu3 Aluminum Alloy |
| Weight |
Approx. 0.6 kg (600 grams) |
| Mounting |
Panel Mount with 4 x M5x20 screws |
| Connections |
LEMO plug for sensor, spring terminal for power/output |
| Certifications |
CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Approvals |
Intrinsic Safety and Non-Sparking certified (based on model variant) |
