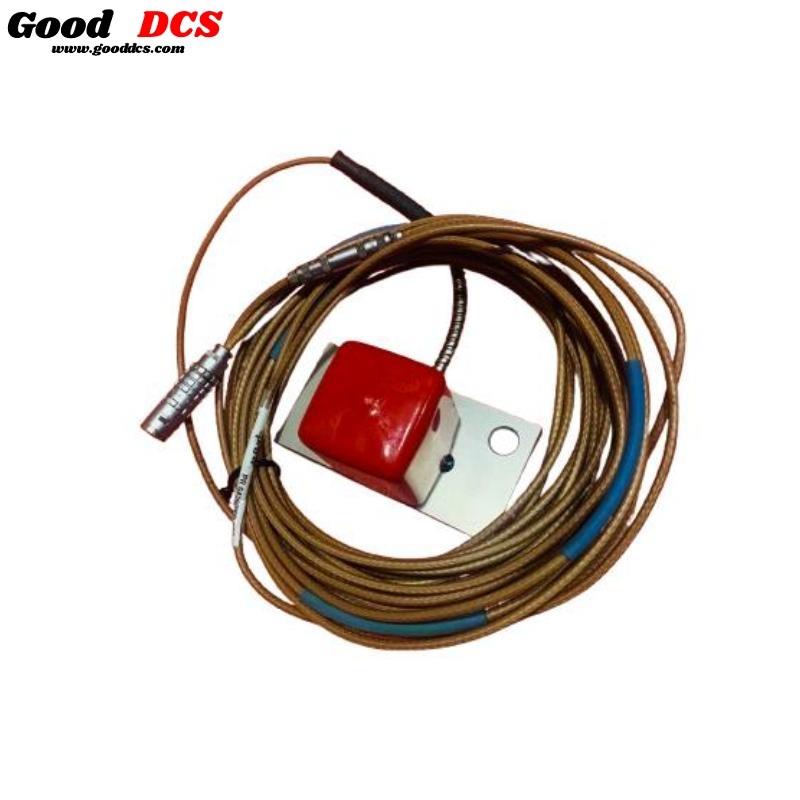

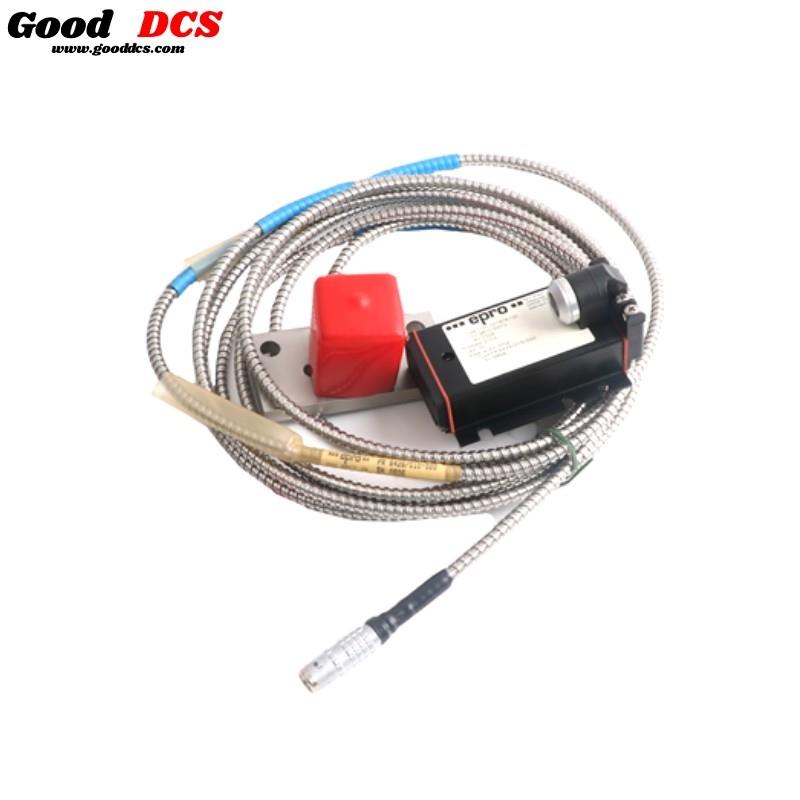

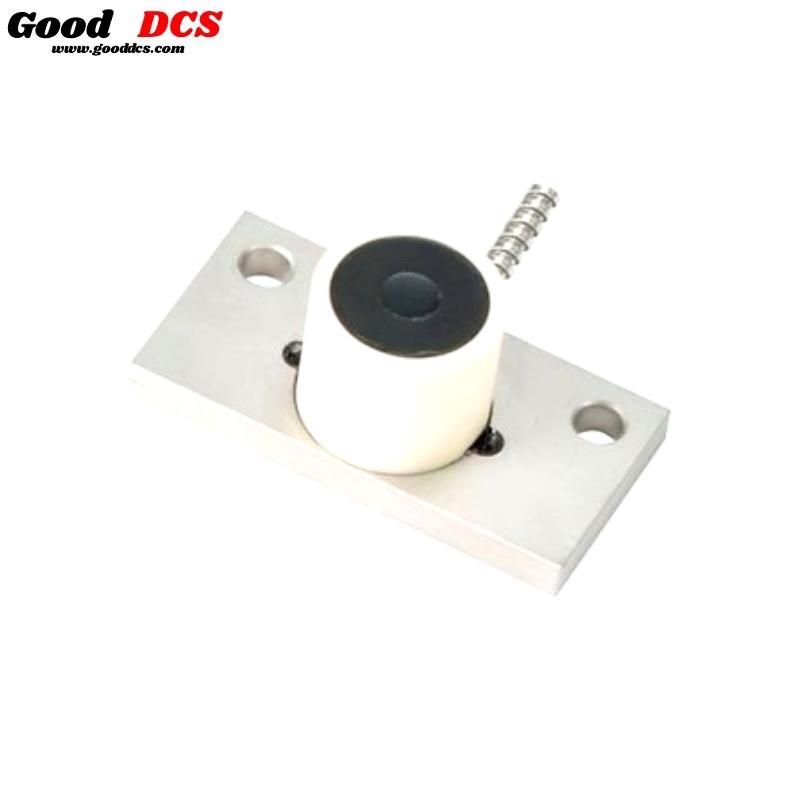

PR6426 32mm Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Sensor Diameter | 32 mm |
| Measuring Range | ±4.0 mm (static) |
| Sensitivity | 2 V/mm (50.8 mV/mil), ≤ ±1.5% |
| Nominal Air Gap | 5.5 mm (0.22″) |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Shaft Diameter | ≥200 mm (7.87″) |
| Max. Surface Speed | 2,500 m/s (98,425 ips) |
| Long-Term Drift | < 0.3% |
| Operating Temperature | -35°C to +175°C (-31°F to +347°F) |
| Short-Term Temp. Excursion | Up to 200°C for <4 hrs |
| Max. Cable Temperature | 200°C (392°F) |
| Pressure Resistance (Sensor Head) | 6,500 hPa (94 psi) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C |
| Material | Stainless Steel sleeve, PTFE cable |
| Weight | Approx. 920 g (Sensor head 0.92 kg with 1m cable) |
| Certifications | CE, ATEX, IECEx, CSA, UL (see detailed specs for classification and T-codes) |

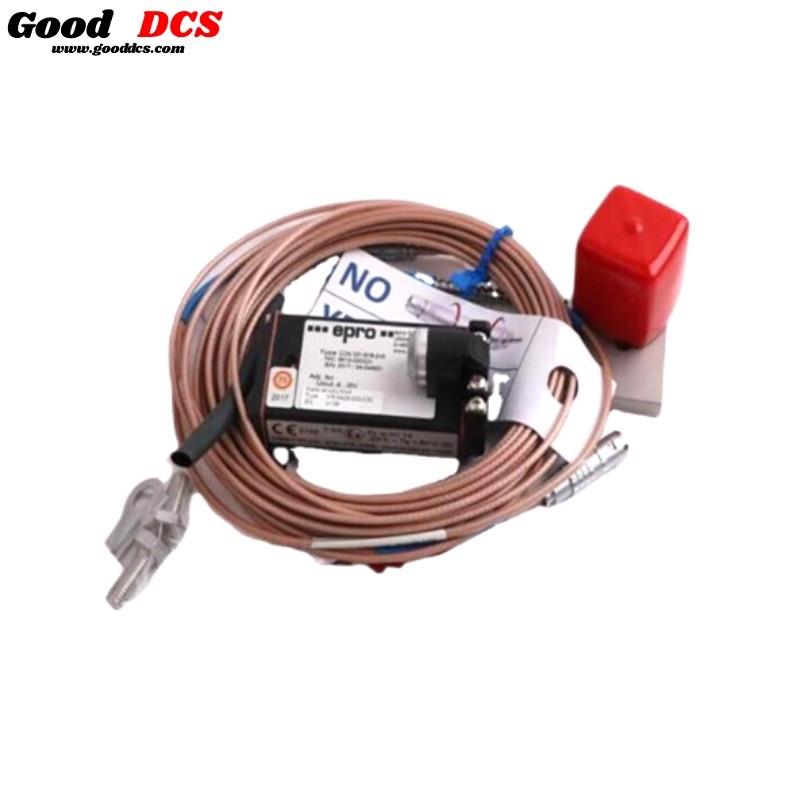

CON021 Eddy Current Signal Converter
| Parameter | Specification |
|---|---|
| Compatible Sensors | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Output Voltage Ranges | -2V to -18V (Supply: -21V to -32V), -4V to -20V (Supply: -23V to -32V) |
| Frequency Range | 0 to 20,000 Hz (-3 dB) |
| Rise Time | <15 µs |
| Operating Temperature Range | -30°C to +100°C (-22°F to +212°F) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C |
| Protection Class | IP20 |
| Mounting | 4 Screws M5×20 |
| Housing Material | LMgSi 0.5 F22 |
| Weight | ~120 g (4.24 oz) |
| Connections | Sensor: Self-locking LEMO plug; Power/Output: Screw terminal (1.5 mm² max) |
| Certifications | CE, ATEX, IECEx, CSA, UL (see detailed specs for classification and T-codes) |
