Technical Specifications Table

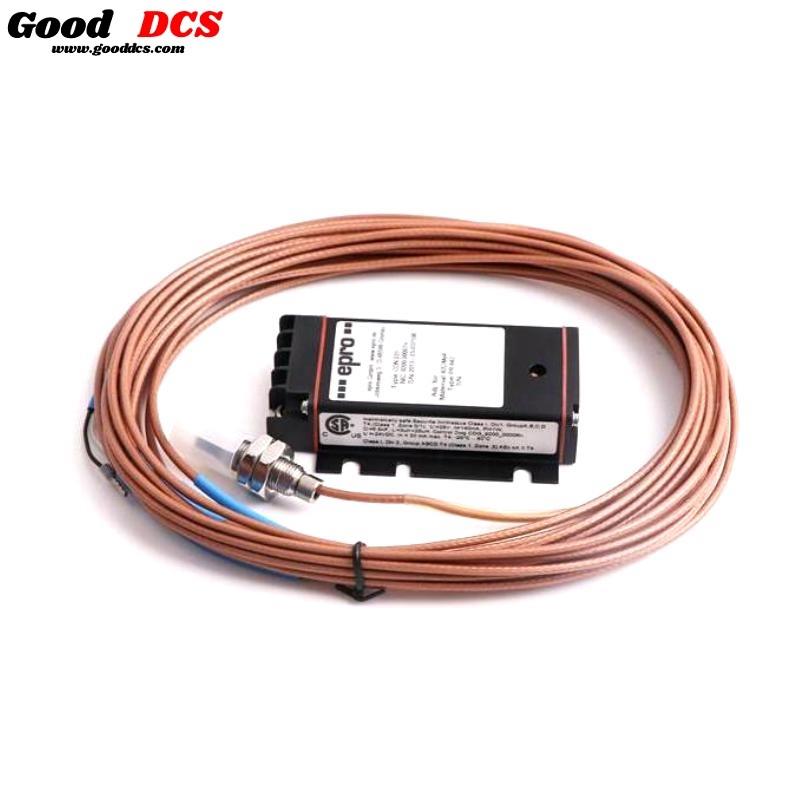

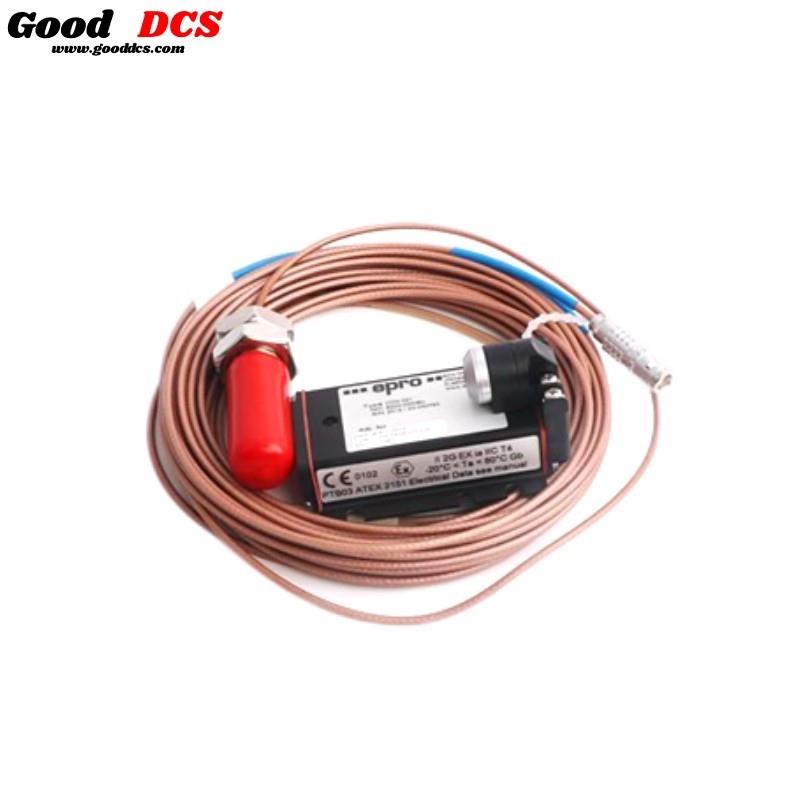

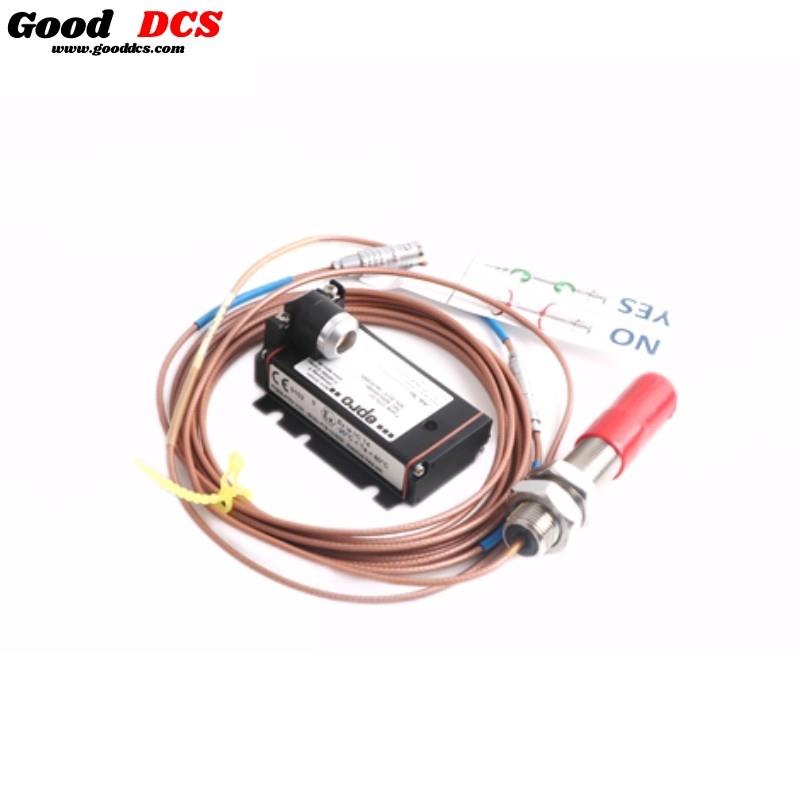

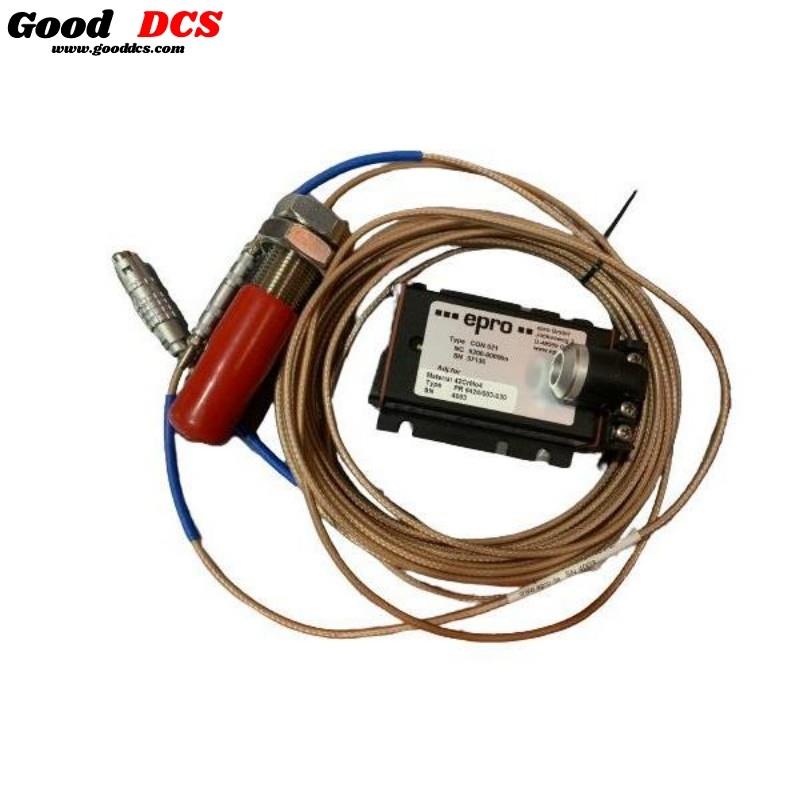

PR6424/010-131 Eddy Current Sensor (16mm)
| Parameter |
Specification |
|---|
| Sensor Type |
Non-contact Eddy Current Sensor |
| Sensitivity / Linearity |
4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Static Measurement Range |
±2.0 mm (0.079”) |
| Dynamic Measurement Range |
0 to 1,000 μm (0 to 0.039”) |
| Target Material |
Ferromagnetic steel (e.g., 42CrMo4) |
| Minimum Shaft Diameter |
≥80 mm |
| Maximum Surface Speed |
2,500 m/s (98,425 ips) |
| Center Air Gap |
Approx. 2.7 mm (0.11”) nominal |
| Long-Term Drift |
<0.3% |
| Operating Temperature Range |
-35 to +150°C (-31 to +302°F) |
| Temperature Error |
<4%/100 K (API 670 Compliant) |
| Pressure Resistance |
Up to 10,000 hPa (145 psi) |
| Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
| Material |
Sleeve: Stainless Steel; Cable: PTFE |
| Weight |
Approx. 200 grams (0.32 kg) |
| Diameter (Sensor Head) |
16 mm |
| Compliance |
CE, ATEX, IECEx, CSA certified |
CON031 Eddy Current Signal Converter
| Parameter |
Specification |
|---|
| Compatible Sensors |
PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Range (-3 dB) |
0 to 20,000 Hz |
| Rise Time |
<15 µs |
| Supply Voltage Range |
-23V to -32V (-4V to -20V output) |
| Alternate Supply Voltage Range |
-21V to -32V (-2V to -18V output) |
| Operating Temperature Range |
-30 to +100°C (-22 to +212°F) |
| Protection Class |
IP20 |
| Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
| Material (Housing) |
ALMgSi 0.5 F22 |
| Mounting |
4 Screws M5x20 (included) |
| Electrical Connection |
Screw terminals (max 1.5 mm², wire-end sleeves) |
| Weight |
Approx. 120 grams (0.12 kg) |
| Compliance |
CE, ATEX, IECEx, CSA certified |
Our company's products are all genuine imported goods from abroad, which can be tested, worry-free after-sales service, and quality guaranteed.
We have tens of thousands of models and tens of thousands of stocks in stock, welcome to consult!
