Product Description:

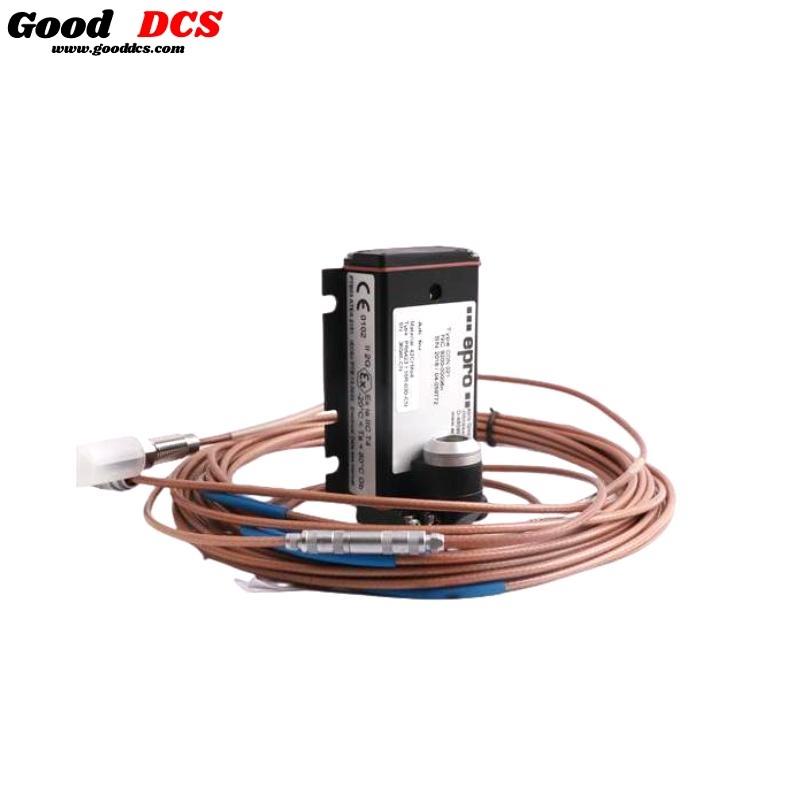

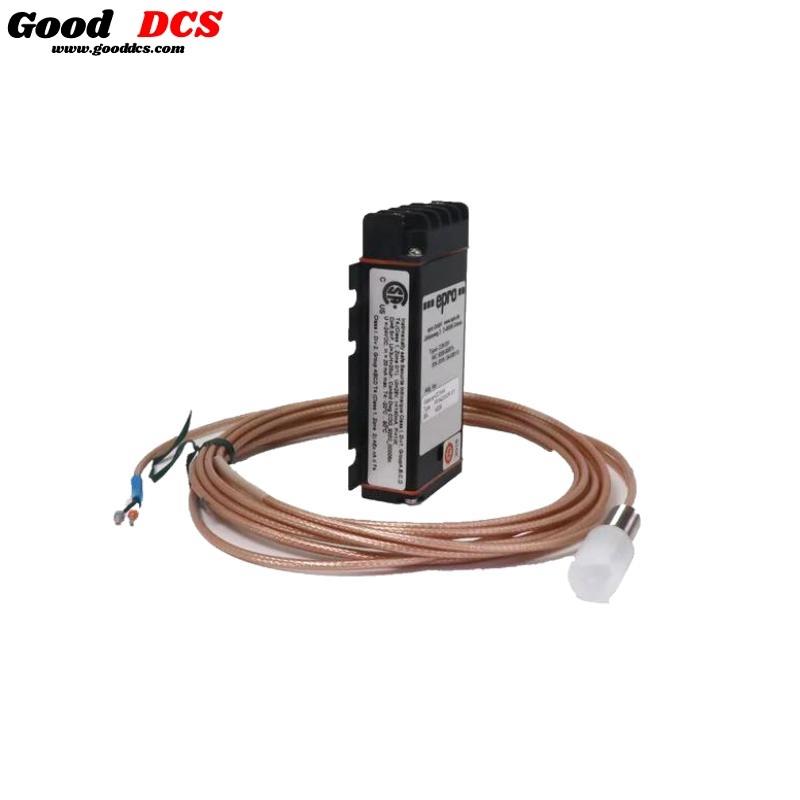

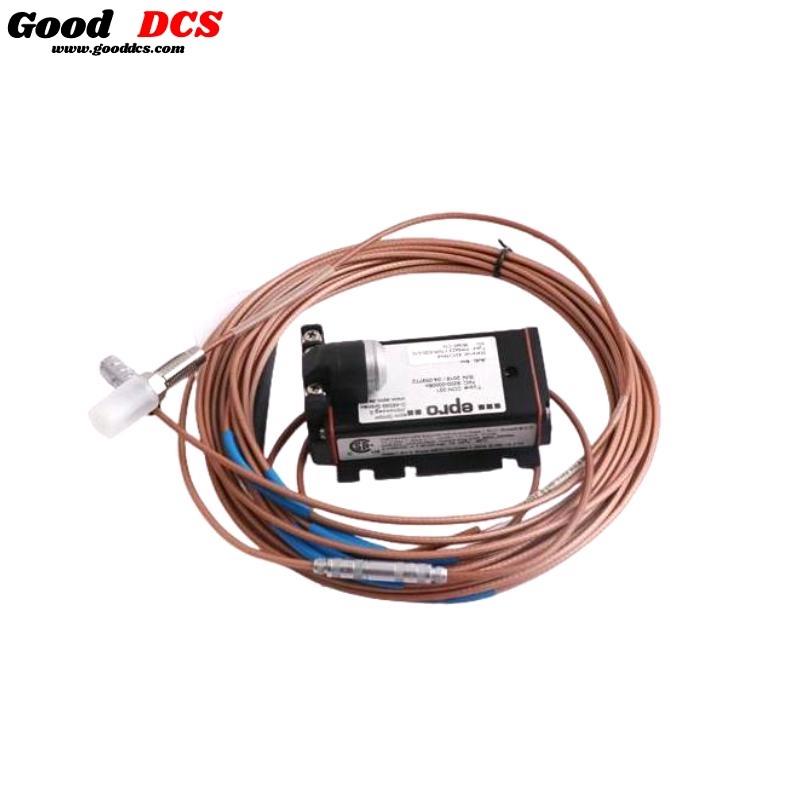

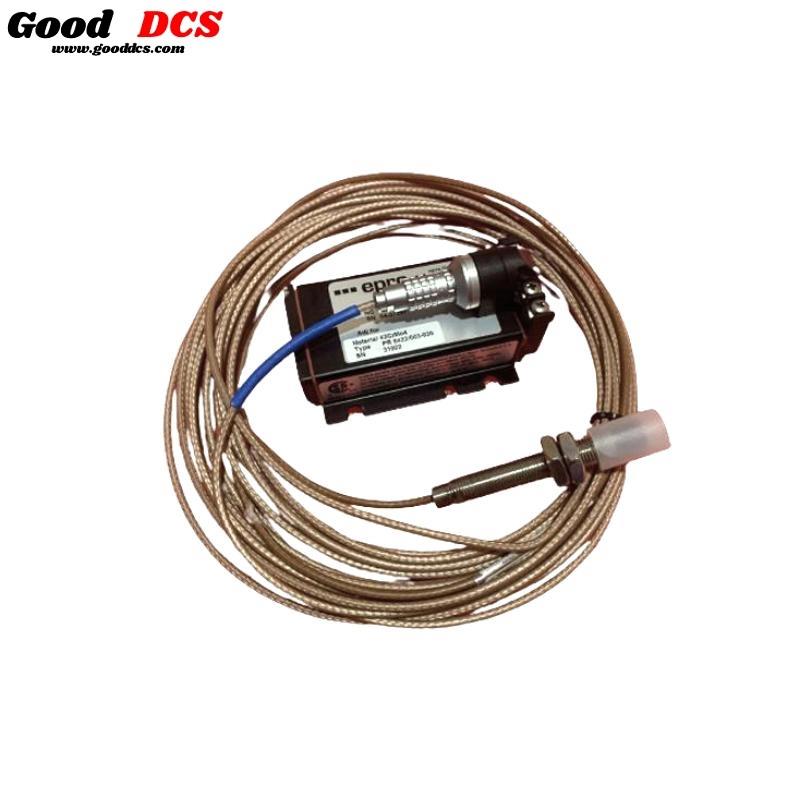

The Epro PR6423/010-120 is an advanced 8mm Eddy Current Sensor, designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. This sensor measures dynamic displacement, position, eccentricity, and speed of rotating machinery, providing a non-contact solution for precision measurement.
Key Features:
-
Non-contact measurement: Ideal for sensitive and critical applications where physical contact is undesirable.
-
Wide operating temperature range: Ensures reliability in extreme conditions (-35 to +180°C for the sensor and -35 to +150°C for the cable).
-
Compact design: With an 8mm sensor tip diameter, it’s suitable for tight spaces and precision tasks.
-
Robust construction: The sensor tip is made from durable PEEK, and the casing is stainless steel, ensuring longevity and resistance to harsh environments.
-
CE & ATEX Certified: Meets international safety and compliance standards for hazardous environments.
Product Specifications:
| Parameter | Value |
|---|---|
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ± 5% |
| Deviation from Best Fit Line | ± 0.025 mm (± 1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | 42CrMo4 (AISI/SAE 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | -35 to +180°C (-31 to 356°F) |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Case Material | Stainless Steel |
| Cable Material | PTFE (Polytetrafluoroethylene) |
| Connector Material | Brass, Nickel-Plated |
| Weight (with 1m cable) | Approx. 100 grams (3.53 oz) |
| Cable Diameter | 2.8 mm (0.110 in) |
| Minimum Bending Radius | 25 mm (0.984 in) |
Advantages:
-
Durability: Constructed from high-quality materials like PEEK and stainless steel, this sensor is designed to withstand harsh industrial environments.
-
Precision: With a deviation of just ± 0.025 mm, this sensor ensures high accuracy for critical machinery monitoring.
-
Flexibility: Available with armored cable options for enhanced protection, and different cable lengths and connector options to suit various setups.
-
Certifications: Compliance with CE, ATEX, IEC-Ex, and CSA ensures the sensor can be used in hazardous areas with safety and reliability.
Applications:
-
Turbomachinery: Ideal for use in steam, gas, and hydro turbines.
-
Compressors and Gearboxes: Used for monitoring the condition and performance of rotating machinery.
-
Pumps and Fans: Suitable for applications where shaft displacement and speed need to be measured with high accuracy.
-
Critical Process Monitoring: Can be used in industries such as oil & gas, power generation, and manufacturing for non-contact measurement in harsh environments.
Related Models:
Here are six related models within the same series or category of sensors:
| Model | Tip Diameter | Case Threads | Cable Length | Armored Cable |
|---|---|---|---|---|
| PR6423/00 | 8 mm | M10x1 | 0.25 m – 10 m | No |
| PR6423/01 | 8 mm | M10x1 | 0.25 m – 10 m | Yes |
| PR6423/10 | 8 mm | 3/8”-24 UNF | 0.25 m – 10 m | No |
| PR6423/11 | 8 mm | 3/8”-24 UNF | 0.25 m – 10 m | Yes |
| PR6423/03 | 8 mm | M10x1 | 0.25 m – 10 m | Yes |
| PR6423/13 | 8 mm | 3/8”-24 UNF | 0.25 m – 10 m | Yes |
Popular Epro Models:
Here are six other popular Epro models that may interest you:
| Model | Description | Tip Diameter | Measurement Range | Operating Temp | Weight |
|---|---|---|---|---|---|
| PR6424/030-120 | Advanced non-contact displacement sensor | 10 mm | 5 mm | -40 to +180°C | 110 grams |
| PR6422/110-150 | High precision shaft vibration sensor | 12 mm | 3 mm | -40 to +200°C | 120 grams |
| PR6425/010-100 | Non-contact measurement for rotating machinery | 8 mm | 2 mm | -30 to +150°C | 95 grams |
| PR6421/030-130 | Sensor for turbomachinery applications | 6 mm | 1.5 mm | -40 to +180°C | 100 grams |
| PR6426/050-140 | Displacement sensor for high-speed turbines | 10 mm | 4 mm | -50 to +200°C | 115 grams |
| PR6423/010-180 | Versatile sensor for industrial equipment | 8 mm | 2 mm | -30 to +180°C | 105 grams |
