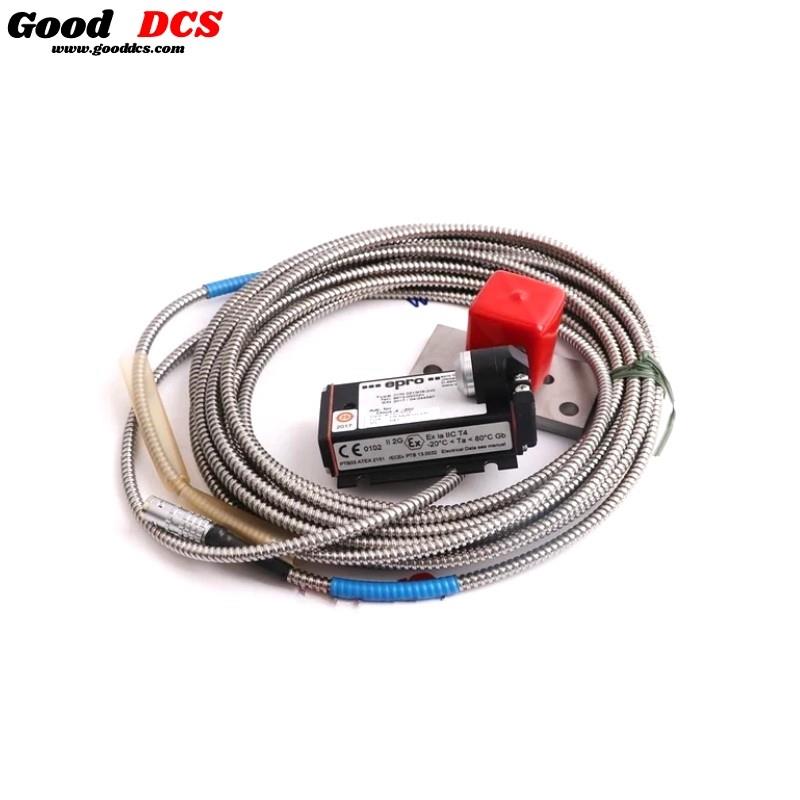

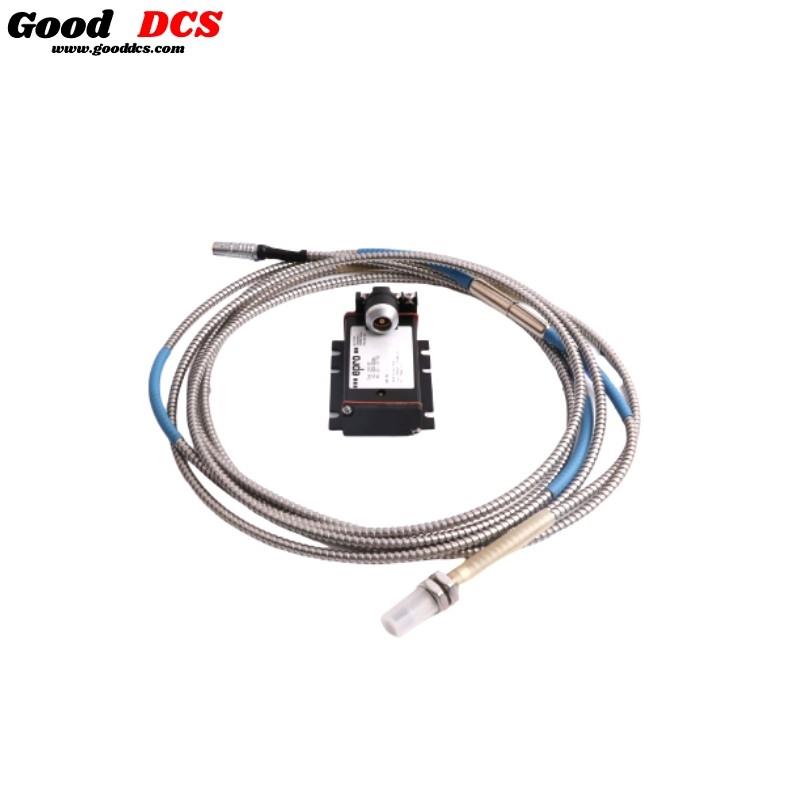

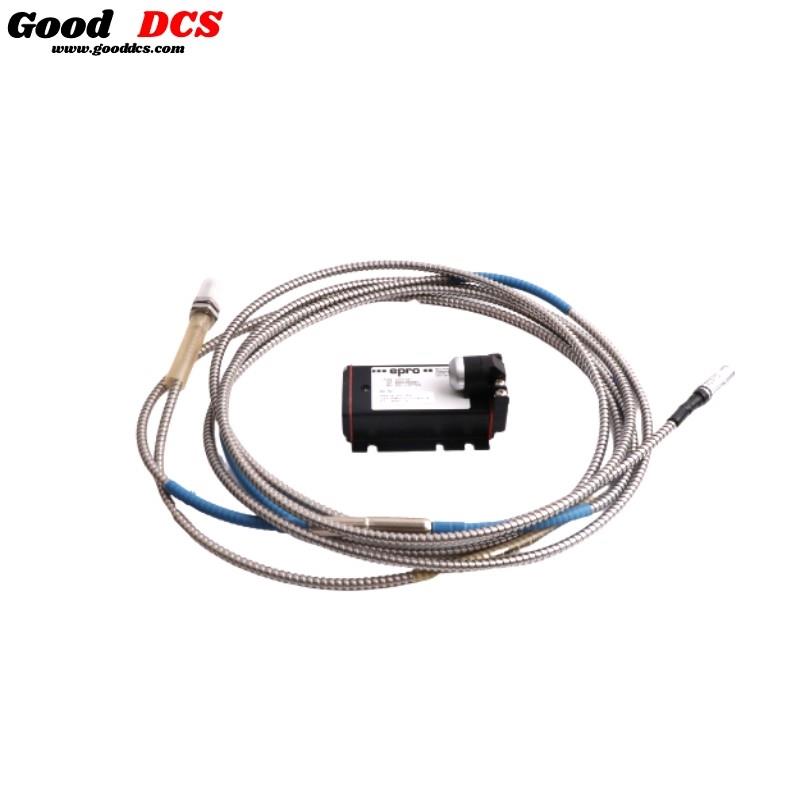

Epro PR6423/010-100 8mm Eddy Current Sensor
The Epro PR6423/010-100 8mm Eddy Current Sensor is a high-performance non-contact sensor designed for critical turbomachinery applications. This sensor is ideal for measuring dynamic displacement, position, eccentricity, and speed in machinery components like turbines, compressors, gearboxes, pumps, and fans. The sensor is built to provide precise measurements in challenging industrial environments, offering robust features and certifications for hazardous areas.
Product Specifications
| Feature | Specification |
|---|---|
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | ISO: 8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C) |
| Deviation from Best Fit Line | ± 0.025 mm (± 1 mil) (0 to 45°C) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | Ferromagnetic Steel (42CrMo4 / AISI 4140) |
| Environmental Protection | IP66, IEC 60529 |
| Operating Temperature Range | Sensor: -35 to +180°C; Cable: -35 to +150°C |
| Weight (with 1m Cable) | Approx. 100 grams (3.53 oz) |
| Material of Sensor Tip | PEEK Polyether Ether Ketone |
| Material of Case | Stainless Steel |
| Material of Cable | PTFE Polytetrafluoroethylene |
| Material of Connector | Brass, Nickel-plated |
Product Features
-
High-precision Measurement: The PR6423 sensor is capable of accurately measuring radial and axial shaft displacement, position, eccentricity, and speed.
-
Non-contact Sensing: Ideal for critical turbomachinery, this sensor offers non-contact measurement, which enhances the reliability and longevity of the sensor.
-
Rugged Design: Built to withstand harsh industrial environments with IP66 protection, it is resistant to dust and water.
-
Wide Temperature Range: Withstanding temperatures from -35°C to +180°C, the sensor is suitable for extreme operational conditions.
-
CE and ATEX Certified: Compliance with CE and hazardous area certifications ensures safe usage in environments with explosive risks.
Advantages
-
Reliable in Harsh Conditions: The sensor’s robust construction with stainless steel housing and a PEEK tip allows it to function reliably in extreme environments.
-
Wide Measurement Range: With a measuring range of up to 2mm and a high incremental scale factor, it offers precise measurement for dynamic shaft movements.
-
Enhanced Safety for Hazardous Areas: The sensor complies with ATEX, IEC-Ex, and CSA standards, making it safe to use in hazardous environments.
-
Long Lifespan: The sensor’s materials and design contribute to its durability and longevity, even in harsh operating conditions.
Applications
-
Turbomachinery Monitoring: The sensor is ideal for measuring the displacement of turbine shafts in steam, gas, and hydro turbines.
-
Compressors and Gearboxes: It is used to monitor the position and eccentricity of rotating machinery, improving maintenance and uptime.
-
Pumps and Fans: Ensures accurate measurement for rotating components in pumps and fans, critical for performance and reliability.
-
Industrial Rotating Equipment: The sensor is also effective in applications requiring precise measurements of rotating machinery in challenging industrial environments.
Latest Report Titles
-
“The Role of Eddy Current Sensors in Industrial Monitoring Systems”
-
“Innovations in Turbomachinery Sensors: Focus on Non-contact Measurement”
-
“Advancements in Hazardous Area Compliance for Industrial Sensors”
Related Models
| Model Number | Description | Key Feature |
|---|---|---|
| PR6423/01 | 8mm Eddy Current Sensor with Armored Cable | Enhanced durability with armored cable option |
| PR6423/10 | 8mm Eddy Current Sensor, No Armor | Standard configuration without armored cable |
| PR6423/11 | 8mm Eddy Current Sensor with 1.0m Cable | Standard 1.0m cable with Lemo connector |
| PR6423/13 | 8mm Eddy Current Sensor, Reverse Mount | Reversed mounting configuration for flexibility |
| PR6423/03 | 8mm Eddy Current Sensor with Armored Cable | For use in extreme environmental conditions |
| PR6423/00 | 8mm Eddy Current Sensor, No Armor | Basic setup with no armored cable option |
Popular Epro Models
| Model Number | Description | Key Features |
|---|---|---|
| PR6421 | Standard Eddy Current Sensor | Precision measurements for general applications |
| PR6420 | Heavy-duty Eddy Current Sensor | For large-scale industrial machinery monitoring |
| PR6430 | High-temperature Eddy Current Sensor | Specially designed for high-temperature applications |
| PR6411 | Compact Eddy Current Sensor | Smaller form factor for tight installation spaces |
| PR6440 | Non-contact Displacement Sensor | Ideal for displacement measurements in rotating machinery |
| PR6450 | Hazardous Area Approved Eddy Current Sensor | Safety-rated sensor for hazardous environments |
