Product Overview:

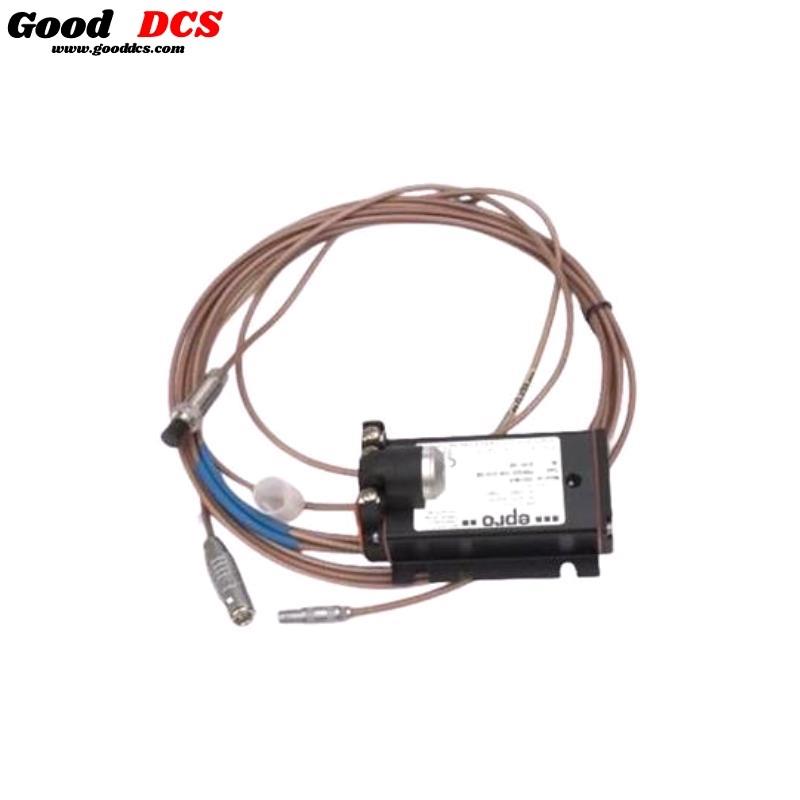

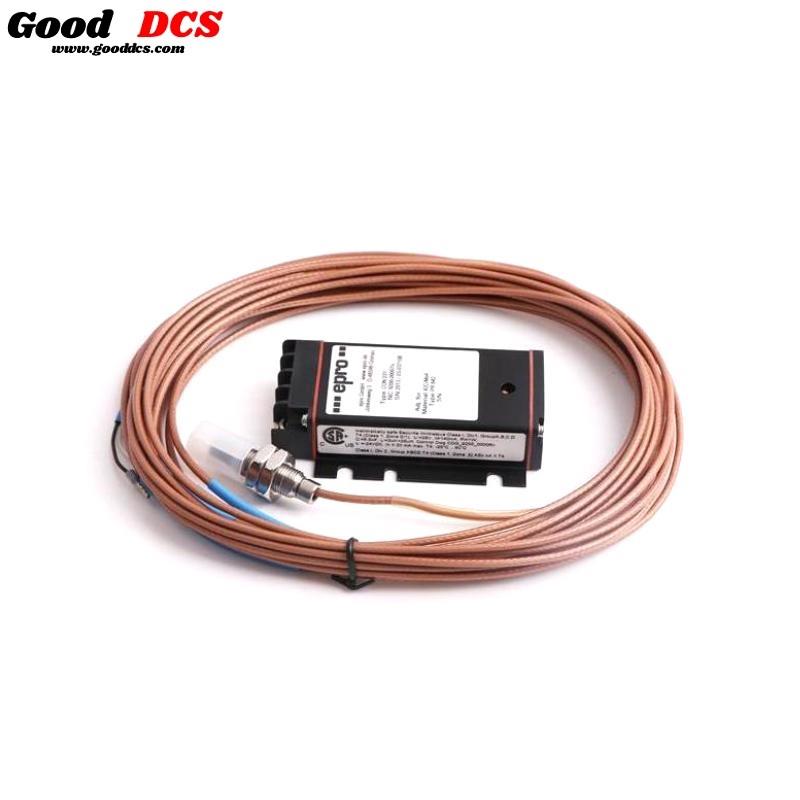

The PR6423/005-010 8mm Eddy Current Sensor is a high-precision non-contact sensor, designed for demanding applications in turbomachinery such as steam, gas, and hydro turbines, compressors, pumps, and fans. This sensor is primarily used for measuring radial and axial shaft dynamic displacement, position, eccentricity, and speed, providing exceptional accuracy in critical operations.
The CON021 Eddy Current Converter complements the PR6423 sensor, offering a reliable solution to convert the sensor signal for precise measurement and control.
Product Specifications:
PR6423/005-010 Eddy Current Sensor
| Specification | Details |
|---|---|
| Measuring Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% |
| Deviation from Best Fit Line (DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | Ferromagnetic Steel (42CrMo4/AISI 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | -35°C to +180°C (-31°F to 356°F) |
| Sensor Tip Material | PEEK Polyether Ether Ketone |
| Sensor Case Material | Stainless Steel |
| Cable Material | PTFE (Polytetrafluoroethylene) |
| Weight (Sensor with 1m Cable) | Approx. 100 grams (3.53 oz) |

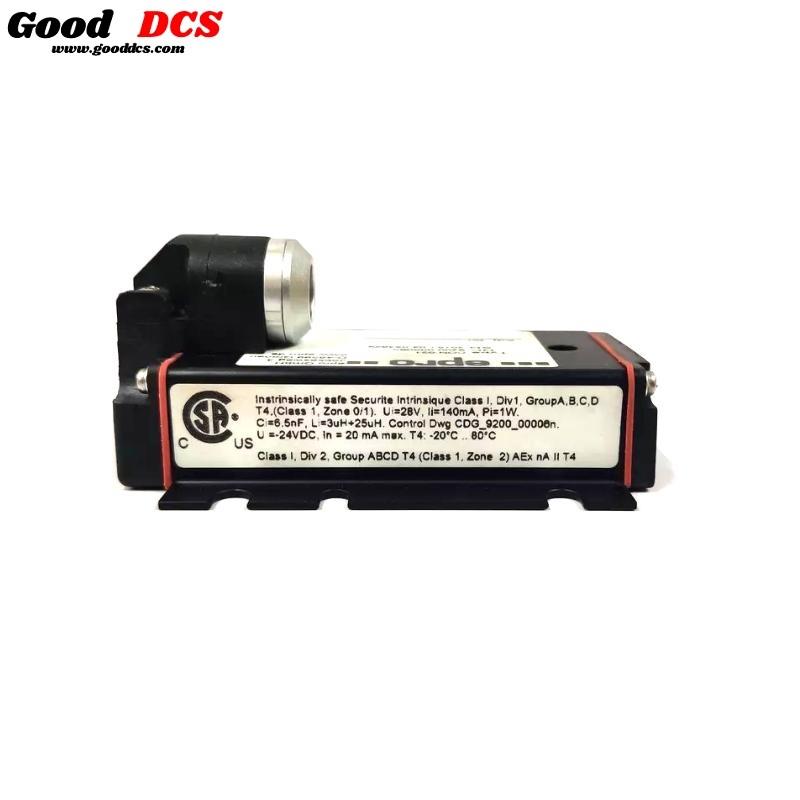

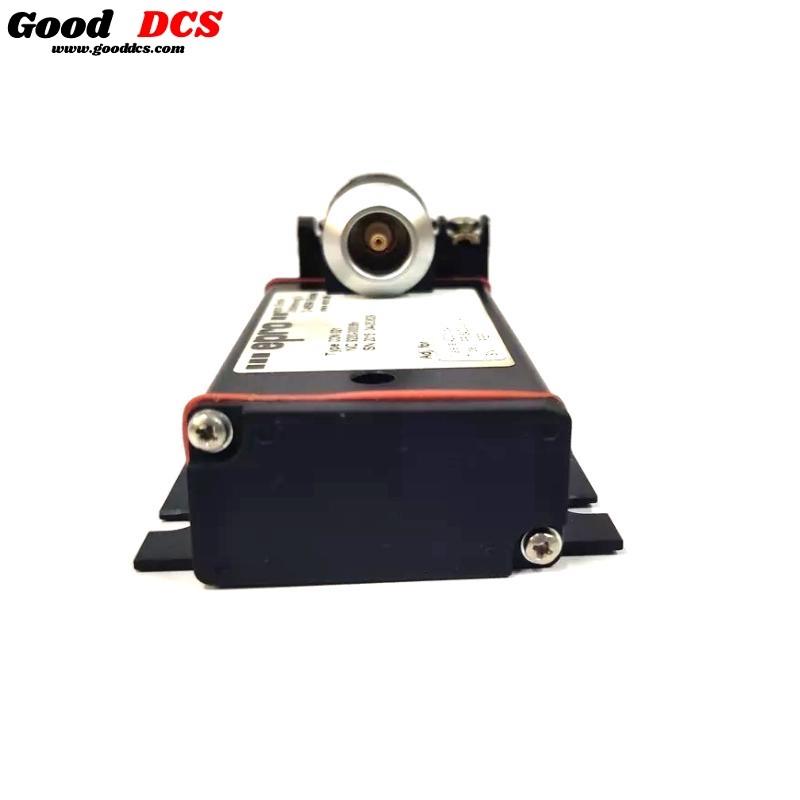

CON021 Signal Converter
| Specification | Details |
|---|---|
| Frequency Range | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Operating Temperature | -30°C to +100°C (-22°F to 212°F) |
| Vibration/Shock Resistance | 5g @ 60 Hz @ 25°C |
| Supply Voltage Range | -23V to -32V (Output: -4V to -20V) |
| Weight | ~120 grams (4.24 oz) |
| Housing Material | LMgSi 0.5 F22 (Aluminum) |
| Mounting | 4 Screws M5x20 (Included) |
| Connections | Lemo Plug (Transducer), Screw Terminal for Power/Output |
Product Features:
-
Non-contact Measurement: Measures displacement, position, and speed without physical contact, reducing wear and tear.
-
High Precision: Offers precise displacement measurements with minimal deviation.
-
Wide Operating Temperature Range: Suitable for high and low-temperature environments, ranging from -35°C to +180°C.
-
Robust Construction: The sensor is designed with high-grade materials such as PEEK and stainless steel, ensuring durability and longevity in harsh industrial settings.
-
Protection Class IP66: Provides strong protection against dust and water ingress.
-
Versatile Applications: Ideal for critical turbomachinery in various industries.
Advantages of the Epro PR6423/005-010 + CON021:
-
High Reliability: Designed for critical industrial machinery, ensuring consistent performance in demanding conditions.
-
Durability in Harsh Environments: The robust construction and wide operating temperature range make it suitable for extreme conditions.
-
Easy Integration: Can be easily integrated with a variety of machinery and control systems, enhancing operational flexibility.
-
Minimal Calibration Required: Offers excellent accuracy with minimal calibration, saving time and reducing operational complexity.
Applications:
-
Turbomachinery Monitoring: Perfect for steam, gas, and hydro turbines, measuring shaft displacement and eccentricity.
-
Compressors & Pumps: Ensures accurate monitoring of machinery condition for early fault detection and performance optimization.
-
Gearboxes & Fans: Provides precise measurements for maintaining optimal performance in rotating machinery.
-
Industrial Control Systems: Used for integrating displacement and speed measurement into broader monitoring systems.
Related Models in the Same Series:
| Model | Measuring Range | Linearity Error | Application |
|---|---|---|---|
| PR6423/002-030 | 2 mm | ≤ 1.0% | Standard applications in turbines and compressors |
| PR6423/002-040 | 2 mm | ≤ 1.0% | Higher precision for advanced monitoring |
| PR6423/005-010 | 5 mm | ≤ 1.5% | Extended range for heavy-duty turbines |
| PR6423/008-020 | 8 mm | ≤ 2.0% | Industrial gearboxes and pumps |
| PR6423/010-050 | 10 mm | ≤ 1.5% | Precision for larger compressors |
| PR6423/012-060 | 12 mm | ≤ 2.0% | Ideal for large-scale industrial machinery |
Popular Epro Models:
| Model | Measuring Range | Protection | Weight | Applications |
|---|---|---|---|---|
| PR6422 | 1 mm | IP66 | 120 grams | Light-duty turbines |
| PR6425 | 4 mm | IP66 | 100 grams | Heavy machinery monitoring |
| PR6426 | 6 mm | IP67 | 150 grams | Large industrial machinery |
| PR6424 | 8 mm | IP65 | 120 grams | Pumps and fans |
| PR6423/005-010 | 5 mm | IP66 | 100 grams | Compressors, gearboxes |
| PR6423 | 2 mm | IP66 | 90 grams | General-purpose turbomachinery |
