Product Introduction
The Epro PR6423/000-000 + CON011 is an advanced eddy current sensor system designed for high-precision monitoring of rotating machinery, including turbines, compressors, pumps, and fans. This system consists of the PR6423 eddy current probe and the CON011 signal converter, making it ideal for measuring shaft displacement, position, eccentricity, and speed/key phasor signals.
The PR6423 sensor features a non-contact eddy current principle, ensuring accurate and reliable measurements even in harsh environments. The CON011 converter processes the sensor’s signal, providing a high level of signal integrity and compatibility with industrial monitoring systems.
Technical Specifications

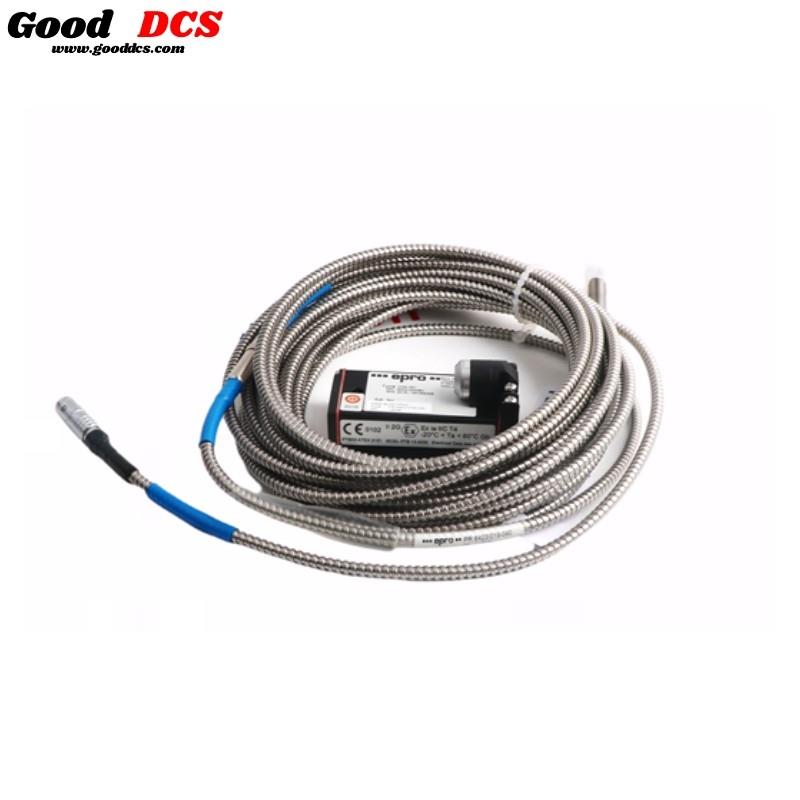

Epro PR6423 Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Measurement Principle | Eddy Current |
| Probe Diameter | 8 mm |
| Measuring Range | Standard: 2mm, Extended: 3mm or 4mm |
| Material | Stainless Steel |
| Weight | 0.7 kg |
| Operating Temperature | -35°C to +180°C |
| Sensitivity | 7.87mV/μm |
| Output Signal | Analog |
| Cable Length | Various lengths available |
| Protection Class | IP65 |

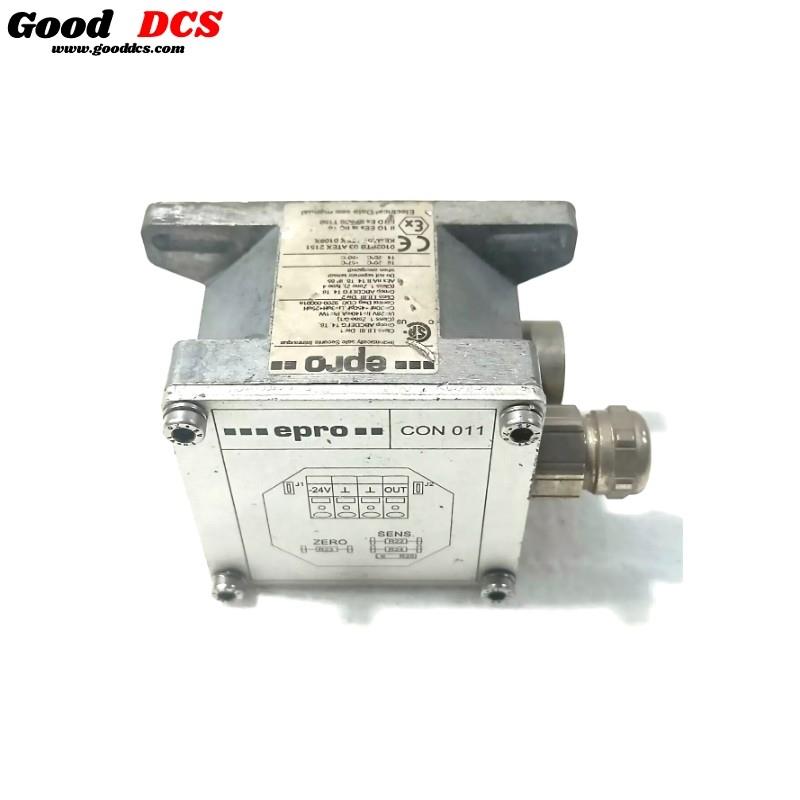

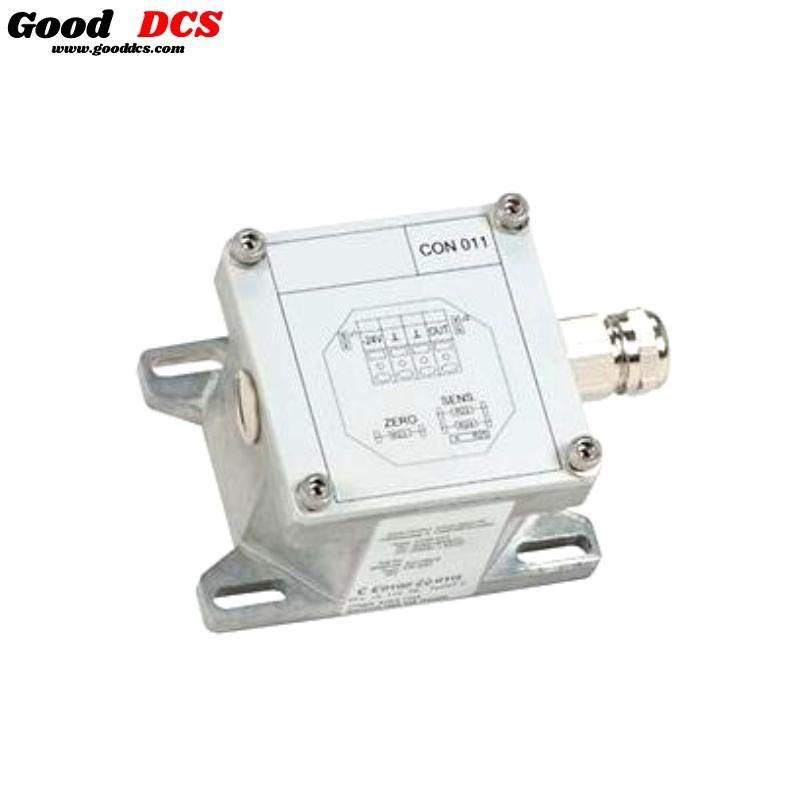

Epro CON011 Eddy Current Signal Converter
| Parameter | Specification |
|---|---|
| Input Sensor Types | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Response | 0 to 20 kHz (-3 dB) |
| Rise Time | < 15 μs |
| Output Voltage | -4V to -20V / -2V to -18V |
| Supply Voltage | -23V to -32V |
| Weight | 0.6 kg |
| Housing Material | GD-ALSi9Cu3 |
| Operating Temperature | -30°C to 100°C |
| Protection Class | IP65 |
| Mounting | 4 Screws (M5x20) |
Applications
The Epro PR6423 + CON011 system is widely used in industrial applications requiring high-precision vibration monitoring and shaft position detection. Typical applications include:
- Turbines – Steam, gas, and hydro turbines for power generation.
- Compressors – Used in refineries, chemical plants, and gas processing.
- Pumps – Monitoring critical pump systems in industrial facilities.
- Fans and Blowers – Ensuring balanced operation in HVAC and industrial air handling.
- Generators – Detecting rotor eccentricity and position.
- Large Motors – Monitoring bearing wear and shaft movement.
- Gearboxes – Detecting misalignment and vibration.
- Hydraulic Systems – Monitoring fluid machinery for early fault detection.
Product Advantages
- High Precision – Accurate measurement of shaft displacement with a sensitivity of 7.87mV/μm.
- Non-Contact Measurement – Minimizes wear and maintenance requirements.
- Wide Operating Range – Suitable for temperatures from -35°C to +180°C.
- Robust Construction – Stainless steel housing and IP65 protection for industrial environments.
- Fast Response Time – Rise time of <15 μs for high-speed machinery monitoring.
- ATEX Certified – Intrinsically safe for hazardous environments.
- Extended Measuring Ranges – Configurable with different converters (CON011 series).
- Seamless Integration – Compatible with various industrial monitoring systems.
- Reliable Performance – Designed for continuous operation in critical applications.
- Global Standards Compliance – Meets CE, IEC-Ex, ATEX, and CSA standards.
Latest Reports & News
- “Epro PR6423: Advancing Eddy Current Sensing for Industrial Applications” – 2024 Industry Review
- “Enhanced Turbomachinery Monitoring with the PR6423 Sensor System” – Journal of Vibration Analysis
- “New Developments in Non-Contact Displacement Sensing” – Sensor Technology Magazine
- “Epro PR6423 and CON011: Improving Reliability in Power Plants” – EnergyTech News
- “Vibration Monitoring Trends in 2024: The Role of Eddy Current Sensors” – Automation Insights
Recommended Models (Same Series or Related)
| Model | Description |
|---|---|
| PR6422 | Eddy Current Sensor with 5mm probe |
| PR6423/000-001 | Alternative PR6423 model with extended cable length |
| PR6424 | Eddy Current Sensor with 10mm probe |
| PR6425 | High-accuracy sensor for critical machinery |
| PR6426 | Large-range eddy current sensor (12mm) |
| CON011/912-015 | Extended range converter for PR6422 |
| CON011/913-030 | Extended range converter for PR6423 |
| CON011/914-080 | Extended range converter for PR6424 |
| CON011/915-060 | Extended range converter for PR6425 |
| CON011/916-200 | Extended range converter for PR6426 |
Top 10 Popular Epro Models
| Model | Description |
|---|---|
| PR6423/000-000 | Standard 8mm eddy current sensor |
| PR6422/10R-030 | Compact eddy current probe for tight spaces |
| PR9376/010-011 | High-frequency vibration sensor |
| PR9268/300-001 | Temperature and vibration monitoring sensor |
| MMS6210 | Machinery protection system module |
| MMS6350 | Advanced signal monitoring module |
| CON021 | Alternative signal converter for PR64XX series |
| PR9238/00 | Displacement and velocity sensor |
| PR9377/010-001 | Multi-parameter vibration sensor |
| PR6425/10R-040 | High-accuracy eddy current sensor |
