Product Overview

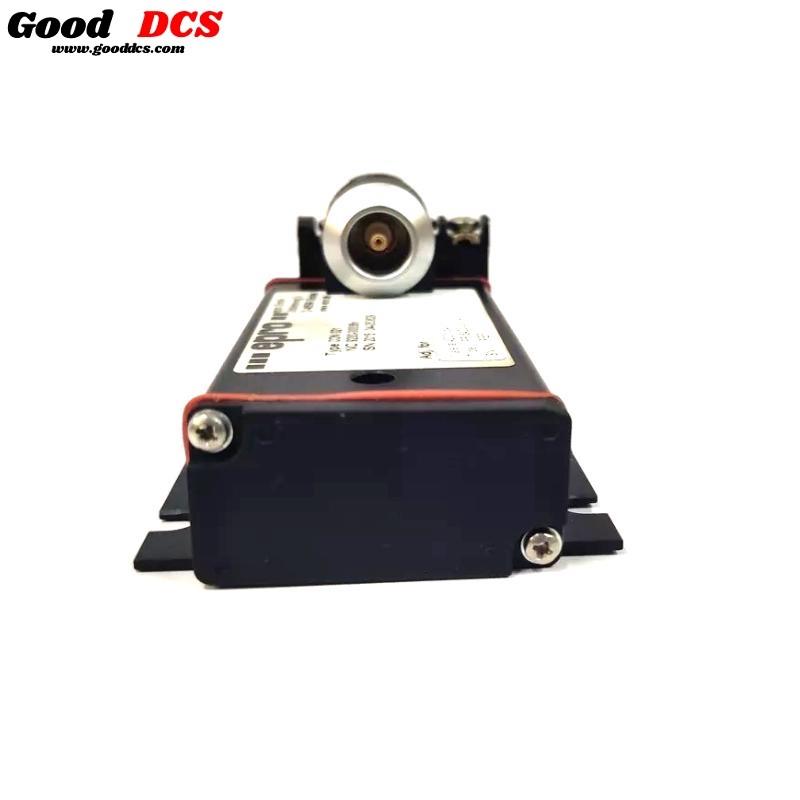

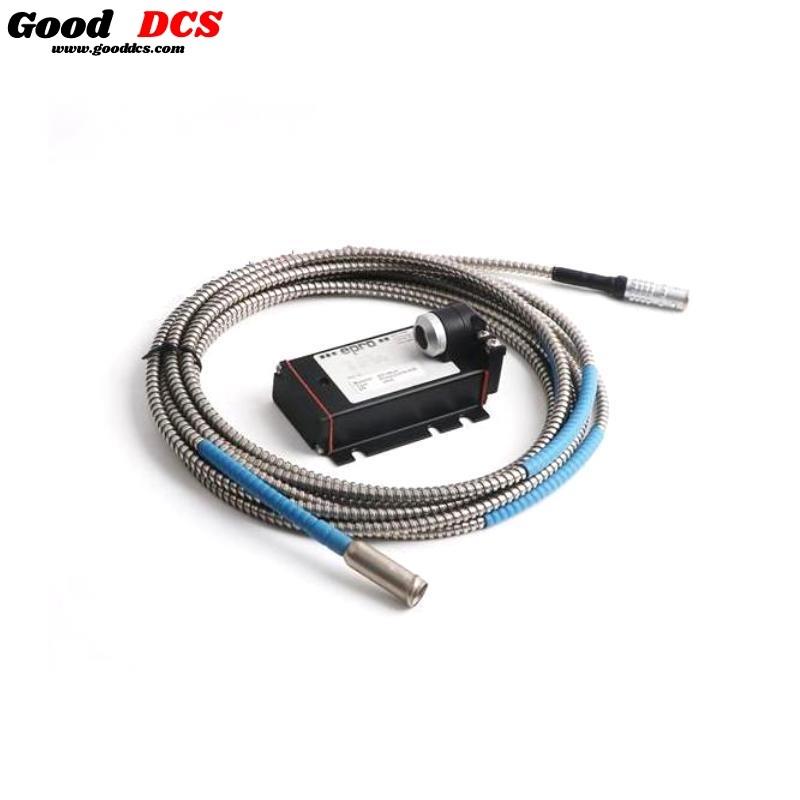

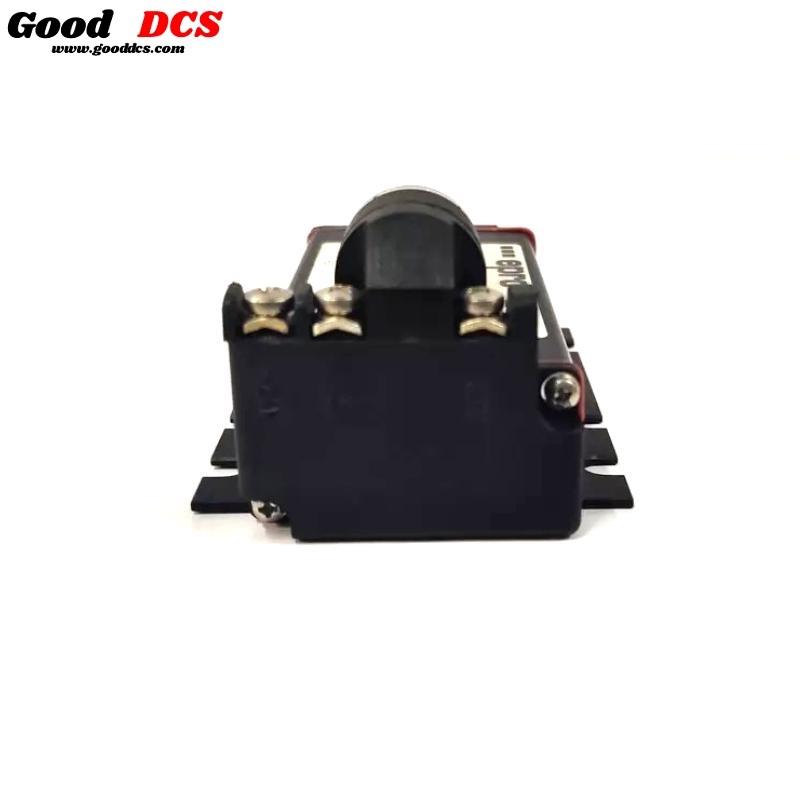

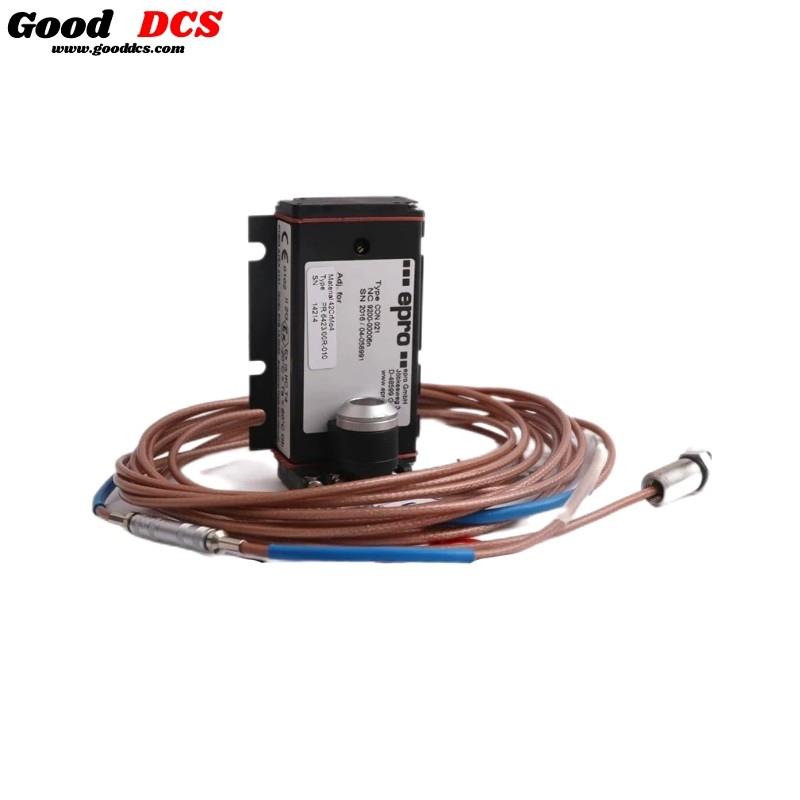

The Epro PR6423/002-000 is an 8mm Eddy Current Sensor, designed for non-contact measurement of radial and axial shaft dynamic displacement, position, eccentricity, and speed. It is widely used in turbomachinery applications such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. This sensor ensures high-precision monitoring in critical industrial environments.
Product Specifications
Below is a detailed specification table for the PR6423/002-000 sensor:
| Parameter | Specification |
|---|---|
| Measurement Principle | Eddy Current Displacement Measurement |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ± 5% (0-45°C) |
| Deviation from Best Fit Straight Line (DSL) | ± 0.025 mm (± 1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | Ferromagnetic Steel (42CrMo4, AISI/SAE 4140) |
| Operating Temperature (Sensor) | -35 to +180°C (-31 to 356°F) |
| Operating Temperature (Cable & Connector) | -35 to +150°C (-31 to 302°F) |
| Protection Class | IP66 (IEC 60529) |
| Material | – Sensor Tip: PEEK (Polyether Ether Ketone) |
| – Case: Stainless Steel | |
| – Cable: PTFE (Polytetrafluoroethylene) | |
| – Connector: Brass (Nickel-Plated) | |
| Hazardous Area Approvals | ATEX, IEC-Ex, CSA Certifications |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.1 kg (100 grams) |
| Cable Diameter | 2.8 mm (Standard), 6 mm (Armored) |
| Minimum Bending Radius (Standard Cable) | 25 mm (0.984 in) |
| Minimum Bending Radius (Armored Cable) | 35 mm (1.378 in) |
| Connector Type | Lemo Connector (Male) or Open Cable End |
Product Features
-
Non-Contact Measurement: Ensures accurate monitoring of shaft displacement, reducing mechanical wear.
-
High Precision & Stability: Provides reliable readings in harsh industrial environments.
-
Wide Operating Temperature Range: Functions effectively in extreme temperatures (-35°C to +180°C).
-
Robust Construction: Made from high-quality PEEK, Stainless Steel, and PTFE for durability.
-
IP66 Protection: Resistant to dust and water ingress, ensuring longevity.
-
Multiple Certifications: ATEX, IEC-Ex, and CSA approvals for hazardous area applications.
Product Advantages
-
Enhanced Reliability: Designed for continuous monitoring in critical applications such as turbines and compressors.
-
Wide Compatibility: Supports a variety of target materials, making it versatile.
-
Intrinsically Safe Design: Certified for hazardous environments.
-
Low Maintenance: Non-contact operation reduces the need for frequent servicing.
-
Multiple Mounting Options: Available in standard and reverse mount versions.
-
Flexible Cable Length Options: Available in 4m, 5m, 8m, 9m, and 10m configurations.
Product Applications
-
Turbomachinery Monitoring: Steam, gas, and hydro turbines.
-
Industrial Rotating Equipment: Compressors, gearboxes, pumps, and fans.
-
Machine Condition Monitoring: Detects early signs of failure, reducing downtime.
-
Aerospace & Power Generation: Essential for ensuring the stability of rotating components.
Latest Product News Headlines
-
“Epro PR6423: The Gold Standard for Eddy Current Sensing in Industrial Applications”
-
“New Advancements in Condition Monitoring: PR6423 Series from Epro”
-
“Improving Machine Health with Epro PR6423 – A Deep Dive into Its Performance”
-
“PR6423/002-000: Why It’s a Game-Changer for Turbine Monitoring”
-
“Eddy Current Sensors Market Growth – How Epro PR6423 is Leading the Way”
Related Models in the Same Series
| Model | Description | Measurement Range | Mounting Type |
|---|---|---|---|
| PR6423/000-000 | Standard 8mm Eddy Current Sensor | 2 mm (80 mils) | Standard Mount |
| PR6423/001-000 | 8mm Sensor with Different Cable Lengths | 2 mm (80 mils) | Standard Mount |
| PR6423/003-000 | 8mm Sensor with Armored Cable | 2 mm (80 mils) | Standard Mount |
| PR6423/010-000 | 8mm Sensor with 3/8”-24 UNF Thread | 2 mm (80 mils) | Standard Mount |
| PR6423/011-000 | 8mm Sensor with Armored Cable (3/8”-24 UNF) | 2 mm (80 mils) | Standard Mount |
| PR6423/020-000 | Reverse Mount 8mm Eddy Current Sensor | 2 mm (80 mils) | Reverse Mount |
Popular Epro Models
| Model | Description | Key Feature |
|---|---|---|
| PR6423/002-000 | 8mm Eddy Current Sensor | High Precision |
| PR6424/000-000 | 5mm Eddy Current Sensor | Compact Design |
| PR9268/200-000 | Velocity Sensor | Condition Monitoring |
| PR9376/010-011 | Piezoelectric Accelerometer | Vibration Monitoring |
| PR6425/010-140 | 12mm Eddy Current Sensor | Extended Measurement Range |
| PR6426/010-140 | 25mm Eddy Current Sensor | Large Shaft Monitoring |
