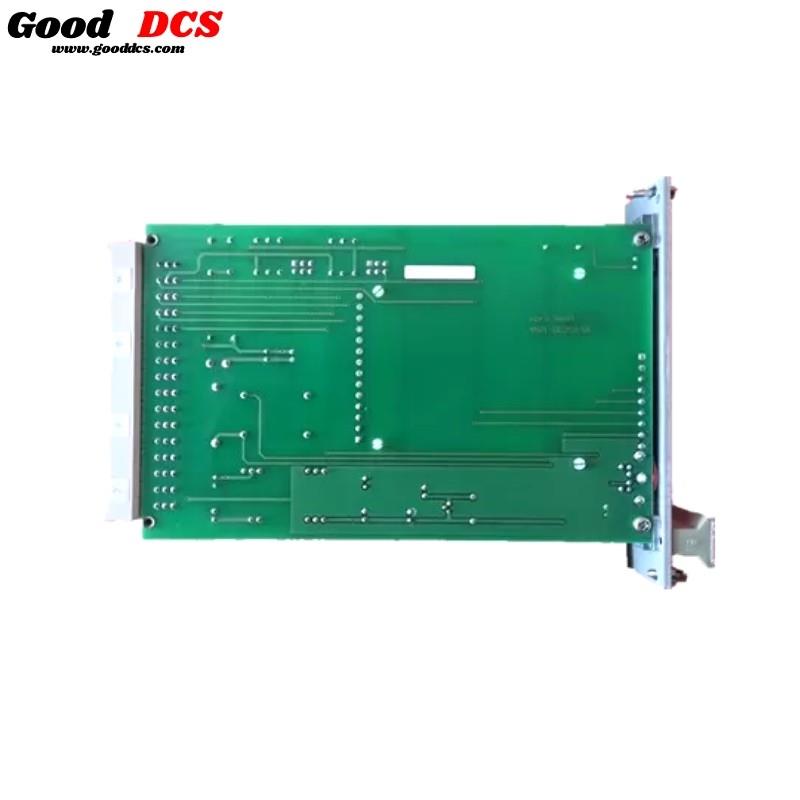

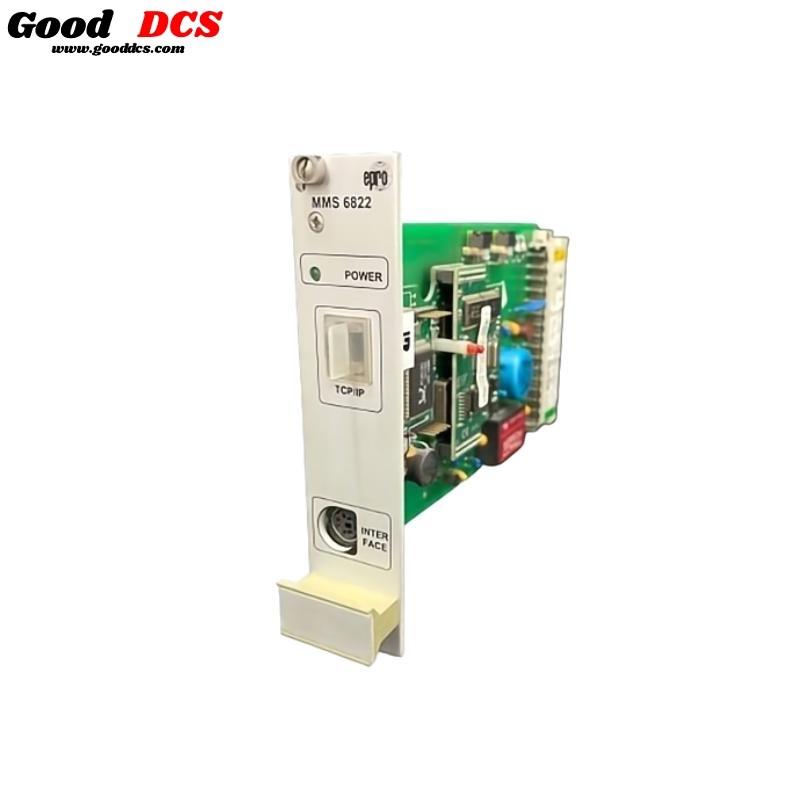

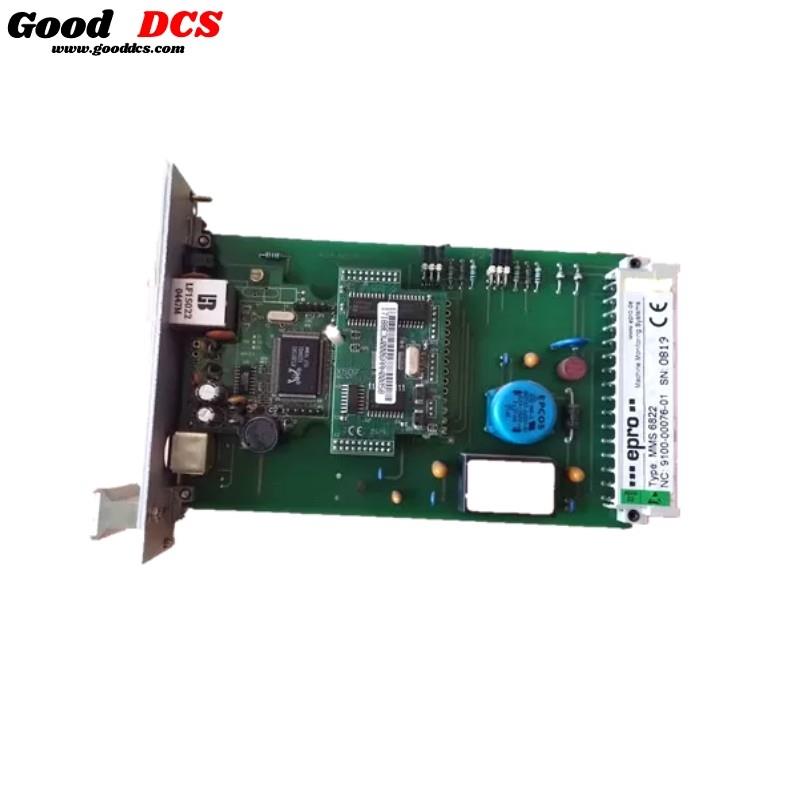

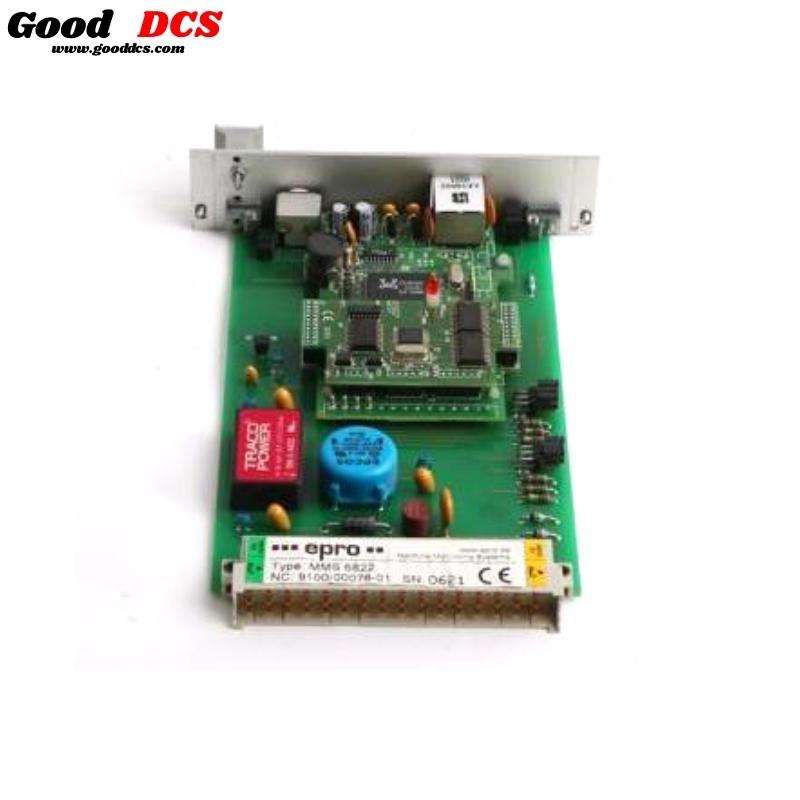

The Epro MMS6822 Interface Card is a versatile and robust interface solution designed for industrial applications. It facilitates data communication between various devices and systems, ensuring reliable and efficient data transfer. The card supports multiple communication protocols, including MODBUS RTU and MODBUS via ETHERNET TCP/IP, making it suitable for a wide range of industrial environments.
Key Parameters
| Parameter | Specification |
|---|---|
| Data Input | 48-pole terminal strip, RS 485 epro protocol |
| Data Output | MODBUS RTU, MODBUS via ETHERNET TCP/IP |
| Transmission Standard | ETHERNET 10 Base T |
| Supply Voltage | 18….24….31.2 V DC redundant |
| Power Consumption | Max. 3 W |
| Environmental Class | Module: IP 00, Frontplate: IP21 |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 68-2, Part 6 |
| Shock Resistance | IEC 68-2, Part 29, Peak acceleration: 98 m/s² |
| Dimensions | 30 x 128.4 x 160 mm |
| Weight | 0.25 kg |
Product Applications
The Epro MMS6822 Interface Card is widely used in industrial automation, energy management systems, and process control applications. It is particularly effective in environments requiring reliable data communication and robust performance under challenging conditions.
Product Advantages
- Versatility: Supports multiple communication protocols.
- Robustness: Designed to withstand harsh industrial environments.
- Efficiency: Low power consumption with high reliability.
- Compatibility: Easy integration with existing systems.
