Product Introduction

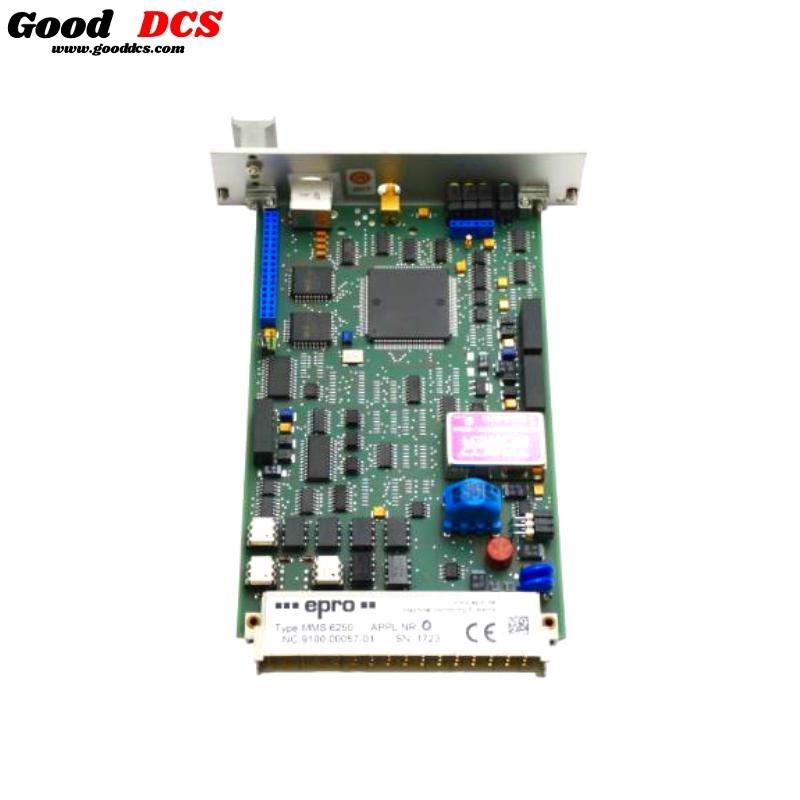

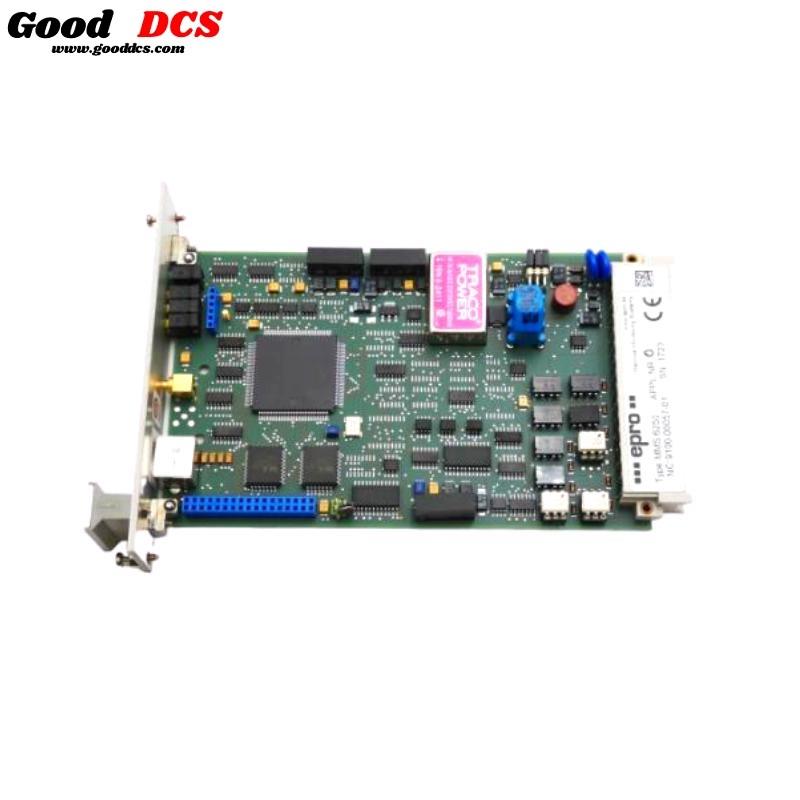

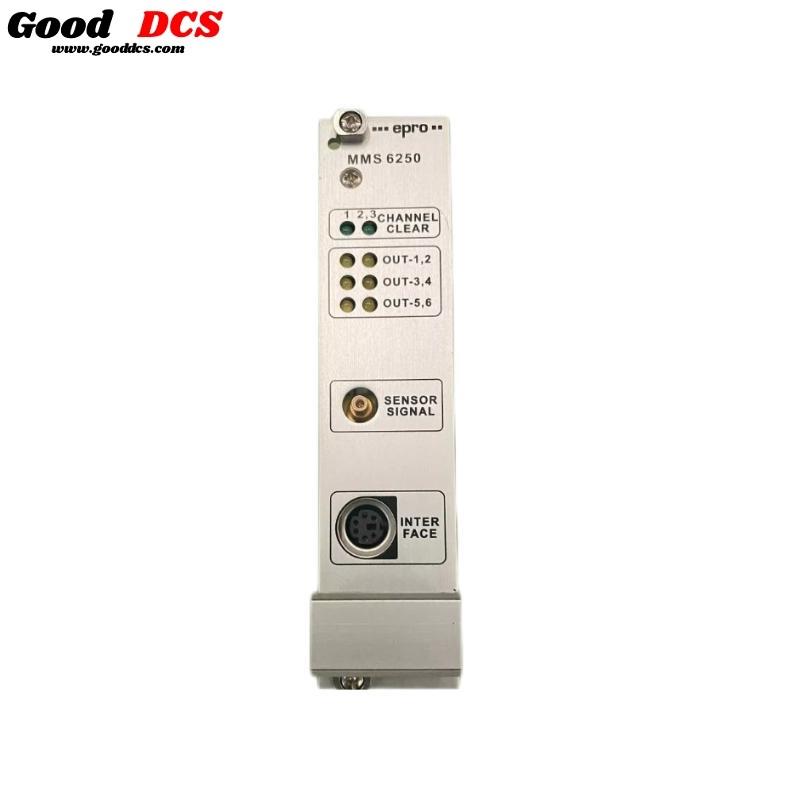

The Epro MMS6250 9100-00057 Shaft Position Monitor Card is a microcontroller-based 3-channel measurement system designed to monitor axial displacement in turbine shafts. It ensures high operational safety by implementing a triple-channel design for redundancy and accuracy. This device is widely used in power plants and industrial environments where precise shaft position monitoring is crucial for machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 30 x 128.4 x 160 mm |
| Weight | 0.32 kg |
| Input Voltage Range | 0 – 27.3 VDC |
| Limit Range | 0 – 30 VDC |
| Input Resistance | >100 kΩ |
| Sensor Signal Output | 0 – 4.1 V (Buffered, Short-Circuit Proof) |
| Max Measuring Range | ±1mm with PR 6423 sensor |
| Current Outputs | 0/4 – 20 mA or 20 – 4/0 mA (Electrically Isolated) |
| Accuracy | ±1% of full scale |
| Communication Interface | RS232, RS485, PROFIBUS-DP (Optional) |
| Power Supply | Redundant 24V DC |
| Alarm Outputs | 6 Function Outputs (24V Voltage Outputs) |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| Protection Class | IP00 (Module), IP21 (Front Plate) |
Product Applications
- Power Plants – Used for turbine shaft displacement monitoring to enhance system safety and efficiency.
- Industrial Machines – Ensures proper shaft alignment and prevents mechanical failure.
- Oil & Gas Industry – Helps in monitoring rotating machinery to avoid system breakdowns.
- Manufacturing Plants – Utilized in critical equipment that requires precise axial position monitoring.
- Aerospace Engineering – Used in testing and monitoring of engine components for accurate displacement readings.
Product Advantages
- High Safety Level – Password protection at each monitor prevents unauthorized modifications.
- Triple-Channel Redundancy – Ensures accurate measurement and system safety.
- Self-Test Functions – Continuously monitors the system for errors and reports in real-time.
- Hot-Swap Capability – Allows boards to be replaced without system shutdown.
- Extended Fault Detection – Immediate error detection and relay output for alarms.
- Flexible Communication – Supports RS232, RS485, and optional PROFIBUS-DP.
- Compact and Lightweight – Easily integrates into 19” cabinets for industrial applications.
- Highly Configurable – Multiple alarm and warning configurations for different applications.
- Electrical Isolation – Protection against voltage fluctuations ensures stable operation.
- Long Service Life – Built with industrial-grade components for durability.
Latest News & Reports on MMS6250
- “Epro MMS6250 Enhancing Power Plant Safety with Advanced Shaft Monitoring”
- “New Updates on MMS6250: PROFIBUS-DP Interface Integration”
- “How Epro MMS6250 is Revolutionizing Turbine Shaft Position Monitoring”
- “Industry Experts Recommend MMS6250 for Reliable Shaft Monitoring”
- “Case Study: Power Plant Efficiency Boosted with MMS6250”
Related Models in the Same Series
| Model | Description |
|---|---|
| MMS6250D | Shaft Position Monitor with Display |
| MMS6250DP | Shaft Position Monitor with PROFIBUS-DP Interface |
| MMS6253TS | Adapter Module for MMS6250 in Turloop System |
| MMS6351/00 | Backplane for MMS6250 |
| MMS6351/10 | Backplane for MMS6250 with Additional Relays |
| MMS6352 | 19” Mounting Frame |
| MMS6360 | Cable 3m for MMS6250 |
| MMS6362 | Cable 0.5m for MMS6250 |
| MMS6363 | PROFIBUS Cable for MMS6250 |
| MMS6950 | Configuration Kit for MMS6250 |
Popular Epro Models
| Model | Description |
|---|---|
| MMS6110 | Vibration Monitor Module |
| MMS6120 | Temperature Monitoring Module |
| MMS6210 | Speed Monitoring Module |
| MMS6220 | Rotational Speed Monitor |
| MMS6312 | Signal Conditioner Module |
| MMS6350 | Backplane Module for MMS Series |
| MMS6365 | Digital Input Module |
| MMS6400 | Machinery Protection System |
| MMS6700 | Advanced Monitoring System |
| PR6423 | Eddy Current Sensor for Shaft Displacement |
