Product Introduction

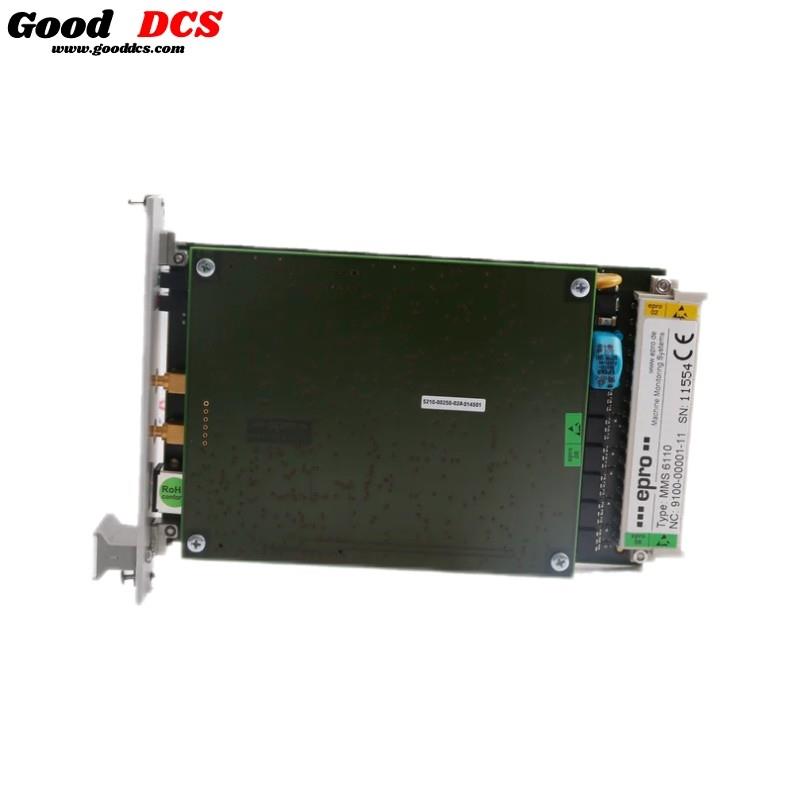

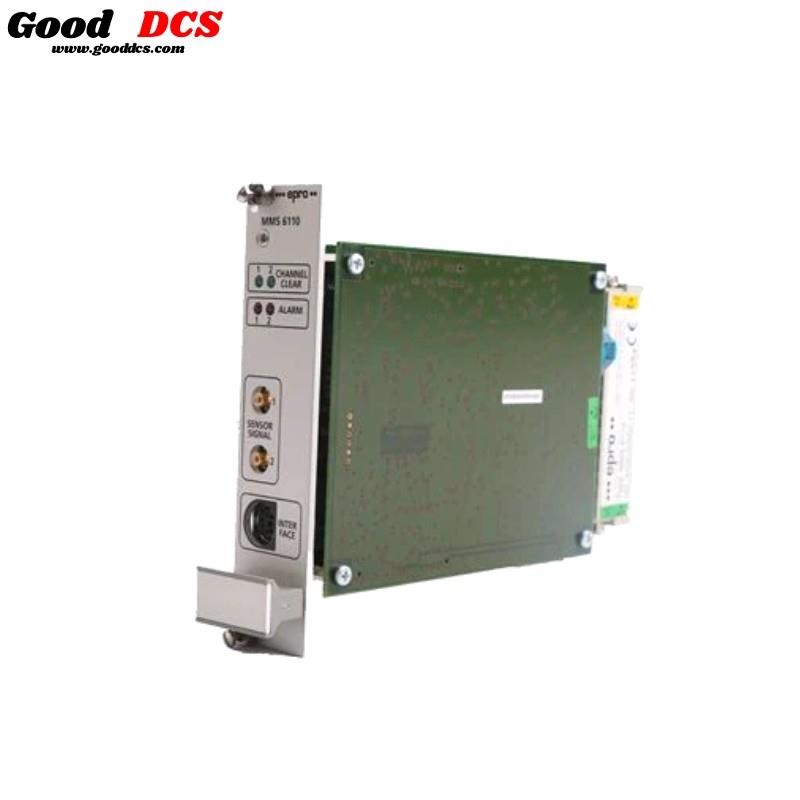

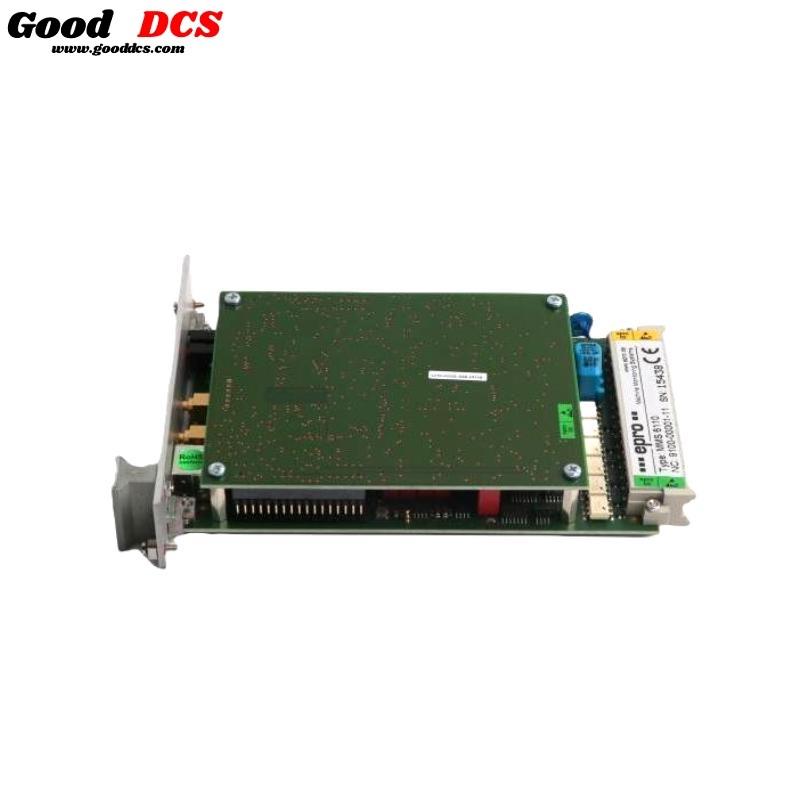

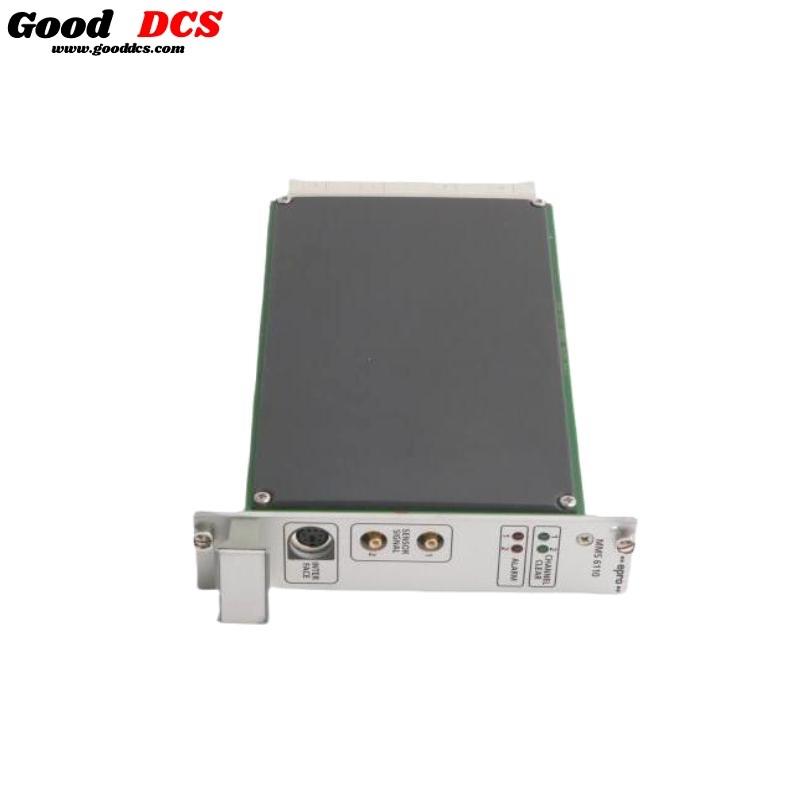

The Epro MMS6110 is a dual-channel shaft vibration monitor designed for machine monitoring applications. It provides real-time monitoring of shaft vibration levels, helping to ensure machinery operates within safe vibration limits. With its high precision and reliability, this monitor is commonly used in industries where equipment uptime and reliability are critical.
Technical Specifications
Below is a detailed table of the Epro MMS6110 specifications:
| Specification | Details |
|---|---|
| Power Supply | 18–31.2 V DC |
| Power Consumption | Max. 6 W (250 mA at 24V) |
| Measuring Modes | Configurable vibration monitoring |
| Limit Supervision | Programmable alarm thresholds |
| Communication Interface | RS 232 and RS 485 |
| Max Modules per RS 485 Bus | 31 modules (62 channels) |
| Protection Class | IP00 (Module), IP21 (Front Panel) |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -30°C to +85°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Vibration Resistance | 0.15 mm (10-55 Hz), 16.6 m/s² (55-150 Hz) |
| Shock Resistance | 98 m/s² (16 ms duration) |
| EMC Compliance | EN50081-1 / EN50082-2 |
| Module Dimensions | 100 x 160 mm |
| Width | 30 mm |
| Height | 128.4 mm |
| Length | 160 mm |
| Weight | 1.3 kg |
| Rack Space Requirements | 14 modules (28 channels) per 19” rack |
Product Applications
The Epro MMS6110 is ideal for use in various industrial applications, including:
- Rotating Machinery – Monitoring turbines, compressors, pumps, and motors.
- Power Plants – Used in both conventional and renewable energy facilities.
- Oil & Gas Industry – Ensures equipment stability and prevents costly failures.
- Chemical & Petrochemical Plants – Provides continuous vibration monitoring.
- Manufacturing & Processing Plants – Helps in predictive maintenance.
- Steel & Mining Industry – Detects vibration anomalies in heavy machinery.
Product Advantages
The Epro MMS6110 offers several key benefits:
- Dual-Channel Monitoring: Enables simultaneous measurement of two independent vibration sources.
- High Precision: Provides accurate and reliable vibration analysis.
- Configurable Alarms: Programmable alert and danger thresholds help prevent equipment failure.
- Flexible Communication: Supports RS 232 and RS 485 for integration with various systems.
- Compact & Modular Design: Easy to install in 19” racks with minimal space requirements.
- Robust Environmental Resistance: Operates efficiently in extreme industrial conditions.
- Low Power Consumption: Efficient energy usage reduces operational costs.
Latest News & Reports
Below are some of the latest headlines about Epro MMS6110:
- “Epro MMS6110 Enhances Vibration Monitoring in Power Plants”
- “Oil & Gas Sector Adopts Epro MMS6110 for Increased Reliability”
- “Predictive Maintenance Boosted by Epro MMS6110 Dual-Channel Monitoring”
- “New Upgrades to the Epro MMS6110 Improve Sensitivity and Accuracy”
- “Industry Leaders Recognize Epro MMS6110 as a Top Monitoring Solution”
Related Models in the Same Series
Here are 10 related models in the Epro MMS6000 series:
| Model | Description |
|---|---|
| MMS6120 | Multi-channel vibration monitor |
| MMS6130 | Vibration monitor with integrated relay outputs |
| MMS6140 | Shaft displacement monitor |
| MMS6150 | Axial position monitoring system |
| MMS6160 | Temperature monitoring module |
| MMS6170 | Speed monitoring system |
| MMS6180 | Combined vibration and displacement monitoring |
| MMS6190 | Advanced fault detection unit |
| MMS6200 | Machine condition monitoring system |
| MMS6210 | Portable vibration analysis unit |
Top 10 Popular Epro Models
These are some of the most popular models from Epro:
| Model | Type | Key Feature |
|---|---|---|
| MMS6110 | Shaft Vibration Monitor | Dual-channel monitoring |
| PR6423 | Proximity Sensor | High-precision vibration sensing |
| PR9268 | Accelerometer | Advanced shock and vibration measurement |
| MMS6312 | Condition Monitoring | Multi-channel system |
| MMS6220 | Temperature Monitor | High-temperature applications |
| MMS6615 | Speed Monitoring | High-speed machinery tracking |
| MMS6350 | Displacement Sensor | Shaft position measurement |
| MMS6420 | Portable Vibration Analyzer | Field testing and analysis |
| MMS6560 | Diagnostic Module | Predictive maintenance solution |
| MMS6120 | Multi-Vibration Monitor | Expanded channel capacity |
