Product Introduction

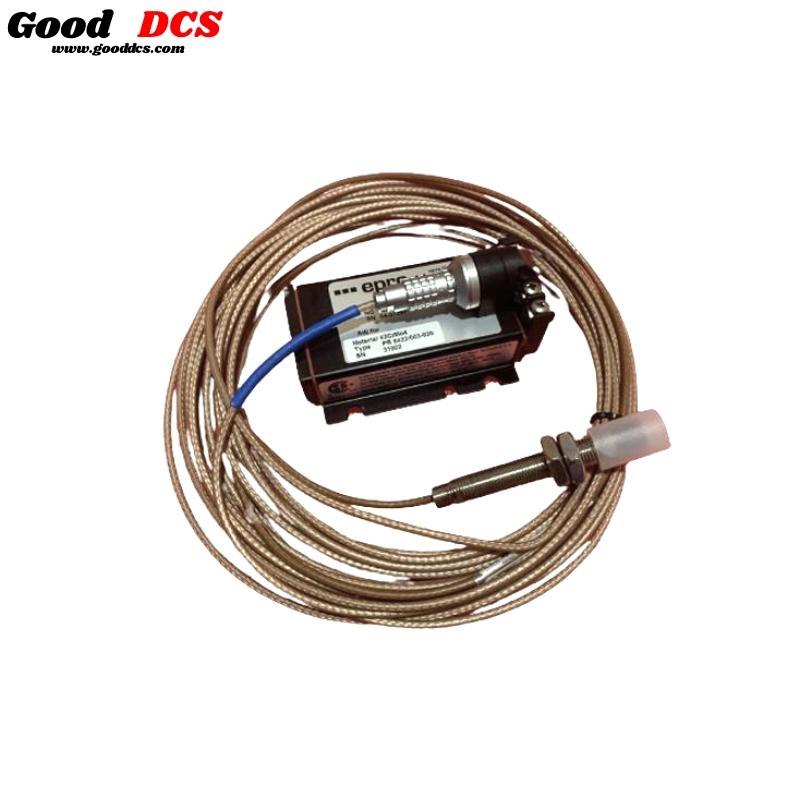

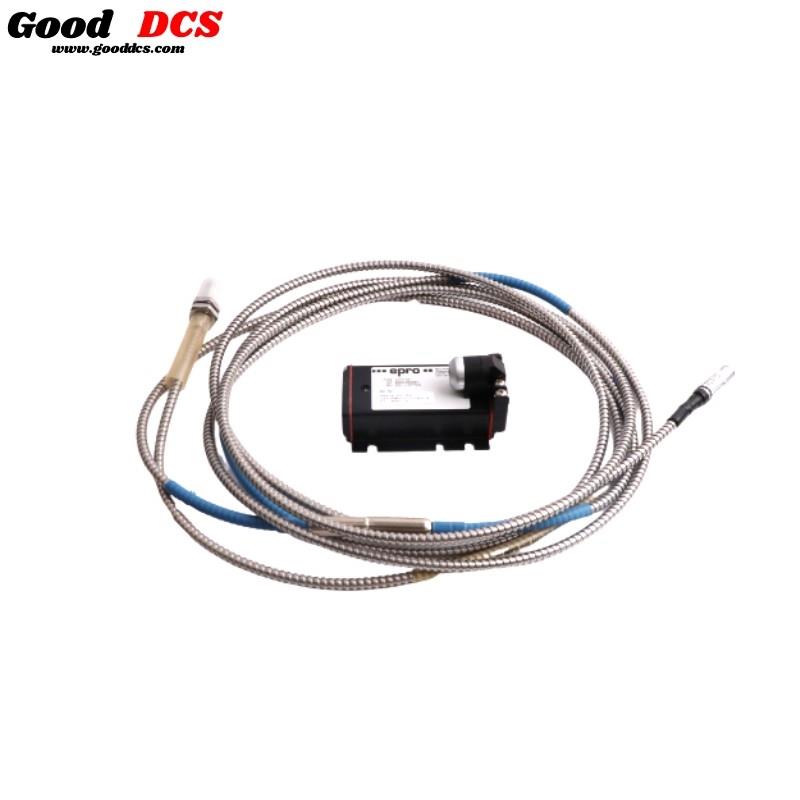

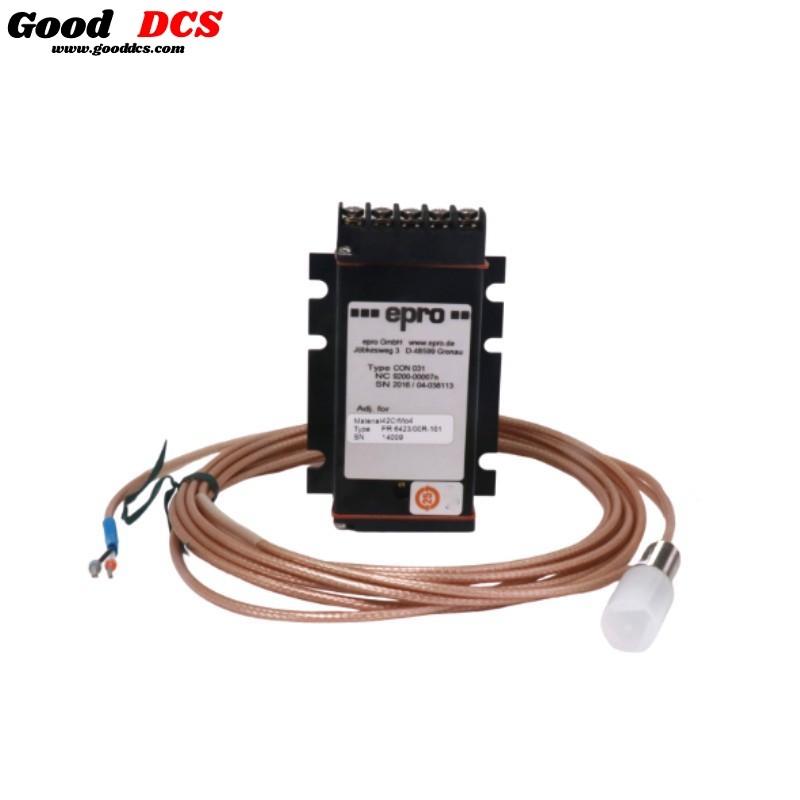

The Epro PR6423/00C-030 is a high-performance 8mm eddy current sensor designed for non-contact measurement of dynamic displacement, position, eccentricity, and speed in critical turbomachinery applications. It is widely used in industries such as power generation, oil & gas, and manufacturing for monitoring steam turbines, gas turbines, compressors, and other rotating equipment.
The sensor offers exceptional accuracy and reliability in harsh environments, featuring robust construction with a stainless steel case and PEEK sensor tip. Its compact design and flexible configuration options make it suitable for both standard and reverse mount installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor Head Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% |
| Deviation from Best Fit Straight Line (DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | 42CrMo4 (AISI/SAE 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | -35°C to +180°C (-31°F to +356°F) |
| Material | Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE |
| Weight | 0.1 kg (100 grams) |
| Cable Length | 5.0 m (as per PR6423/00C-030 configuration) |
| Connector Type | Lemo (male) or Open Cable End |
Product Features
- Non-Contact Measurement: Ensures no wear and tear on the sensor or target.
- High Accuracy: DSL deviation of ±0.025 mm for precise measurements.
- Robust Construction: Stainless steel case and PEEK tip for durability in harsh environments.
- Wide Temperature Range: Operates from -35°C to +180°C, suitable for extreme conditions.
- Flexible Configuration: Options for armored cable, reverse mount, and multiple cable lengths.

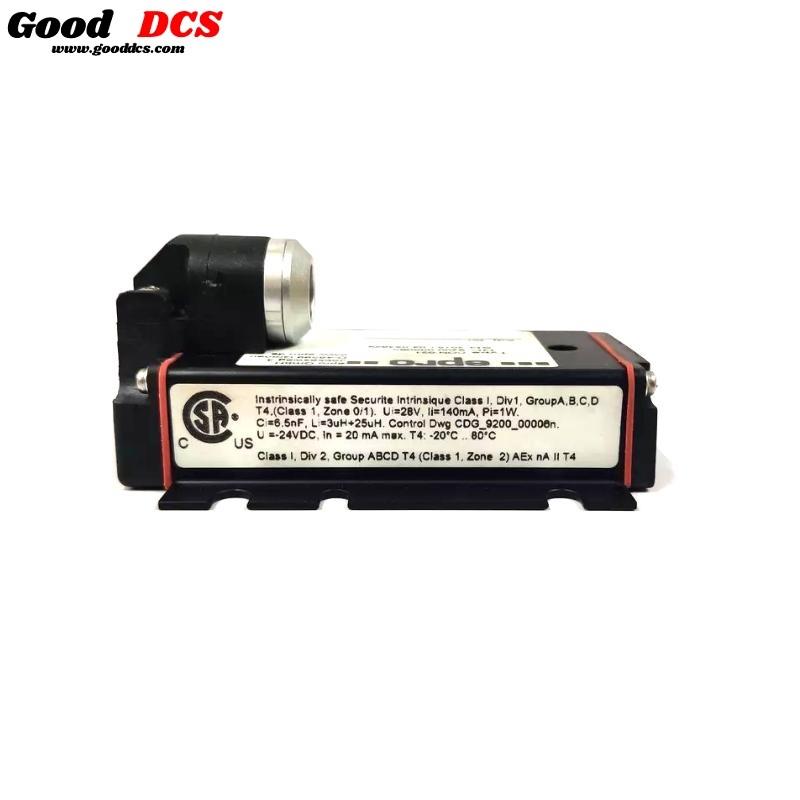

- Certified for Hazardous Areas: Compliant with ATEX, IEC-Ex, and CSA standards.
Product Advantages
- Reliability: Designed for critical applications with long-term stability.
- Versatility: Compatible with various shaft materials and diameters.
- Easy Integration: Standardized connectors and mounting options simplify installation.
- Low Maintenance: Non-contact design reduces downtime and servicing needs.
- Global Compliance: Meets international standards for safety and performance.
Product Applications
- Turbomachinery: Monitoring radial and axial displacement in steam/gas turbines.
- Compressors: Vibration and position measurement in industrial compressors.
- Pumps & Fans: Detection of eccentricity and speed variations.
- Gearboxes: Dynamic displacement monitoring for preventive maintenance.
- Hydro Turbines: Shaft runout and alignment checks.
Latest News Headline
“Emerson’s PR6423 Eddy Current Sensor Now Certified for Use in Explosive Environments with Enhanced ATEX/IEC-Ex Compliance”
Recommended Related Models
| Model No. | Key Parameters | Description |
|---|---|---|
| PR6423/01-000 | Armored Cable, M10x1 Thread, 4.0m Cable | Standard armored version for rugged environments. |
| PR6423/10-000 | 3/8″-24 UNF Thread, No Armor, 4.0m Cable | Alternative thread option for specific mounts. |
| PR6423/11-000 | 3/8″-24 UNF Thread, Armored Cable, 4.0m Cable | Armored version with UNF thread. |
| PR6423/00R-000 | Reverse Mount, M10x1 Thread, 4.0m Cable | Reverse configuration for space-constrained installations. |
| PR6423/xxx-xxx-RAD | Radiation-Resistant (80Mrad), Epoxy Tip | Special version for nuclear applications. |
| PR6423/03-000 | Extended Cable (8.0m), M10x1 Thread | Longer cable for remote installations. |
Popular Epro Sensor Models
| Model No. | Type | Key Parameters |
|---|---|---|
| PR6424 | 11mm Eddy Current | Larger diameter for heavy-duty applications. |
| PR6425 | 14mm Eddy Current | High-range displacement measurement. |
| PR9376 | Velocity Sensor | For vibration monitoring, 4-20mA output. |
| PR9268 | Accelerometer | High-frequency vibration analysis. |
| PR6600 | Proximity Sensor | General-purpose displacement measurement. |
| PR3000 | Pressure Sensor | For hydraulic and pneumatic systems. |
