Product Overview

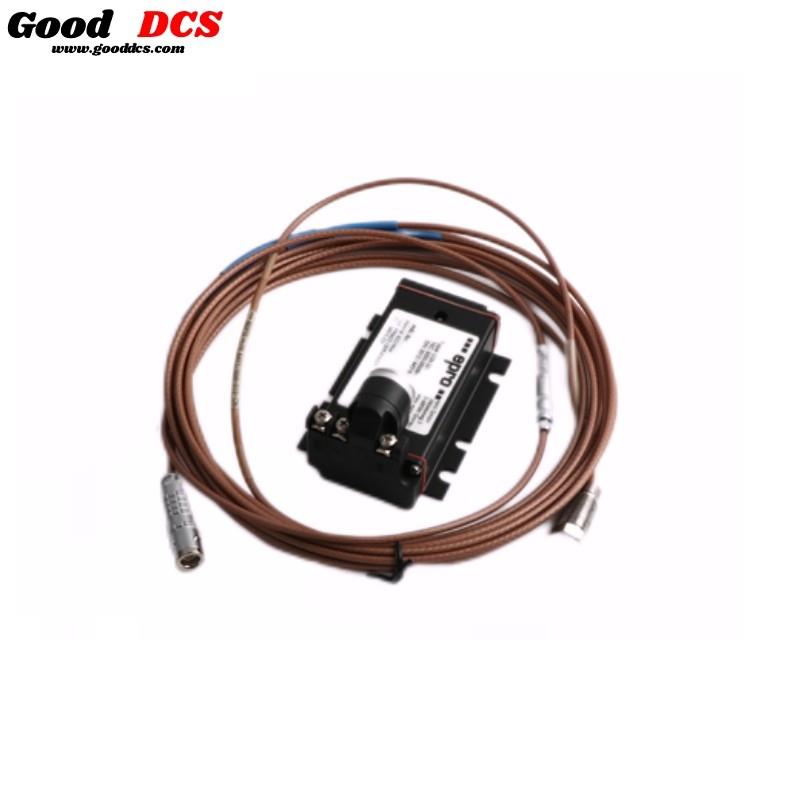

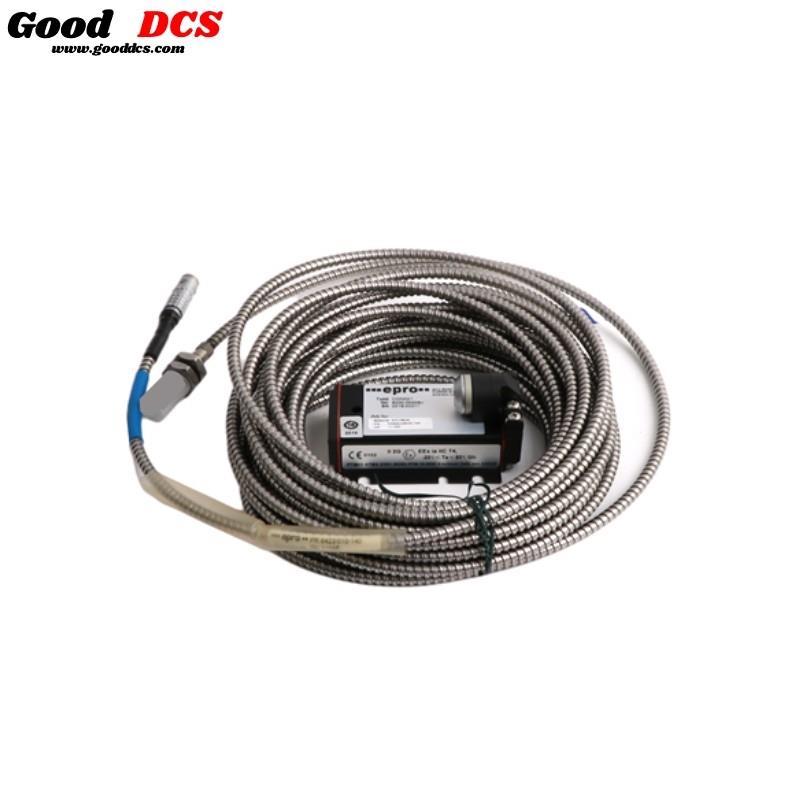

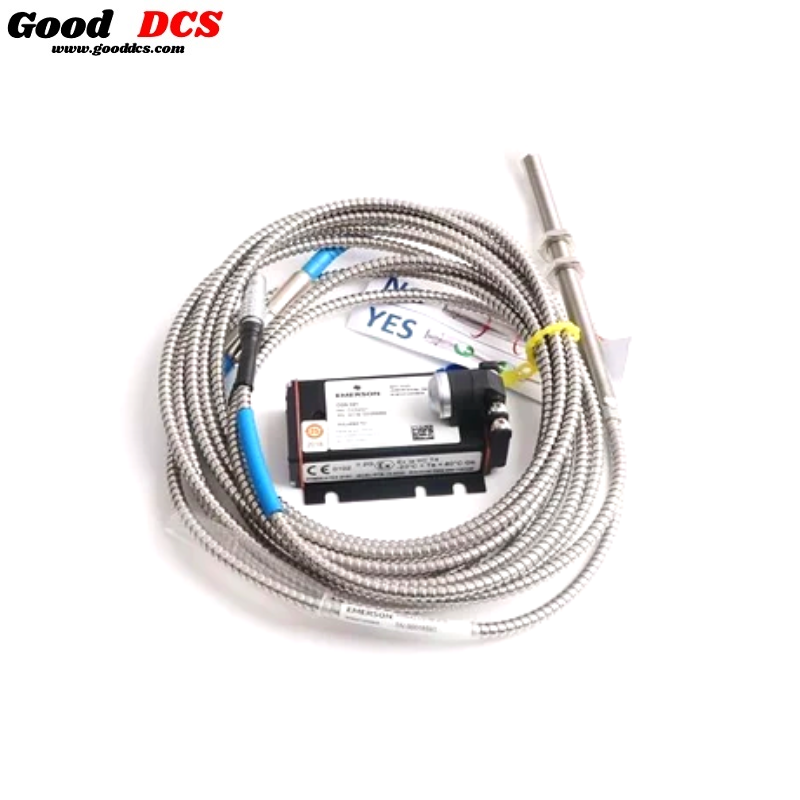

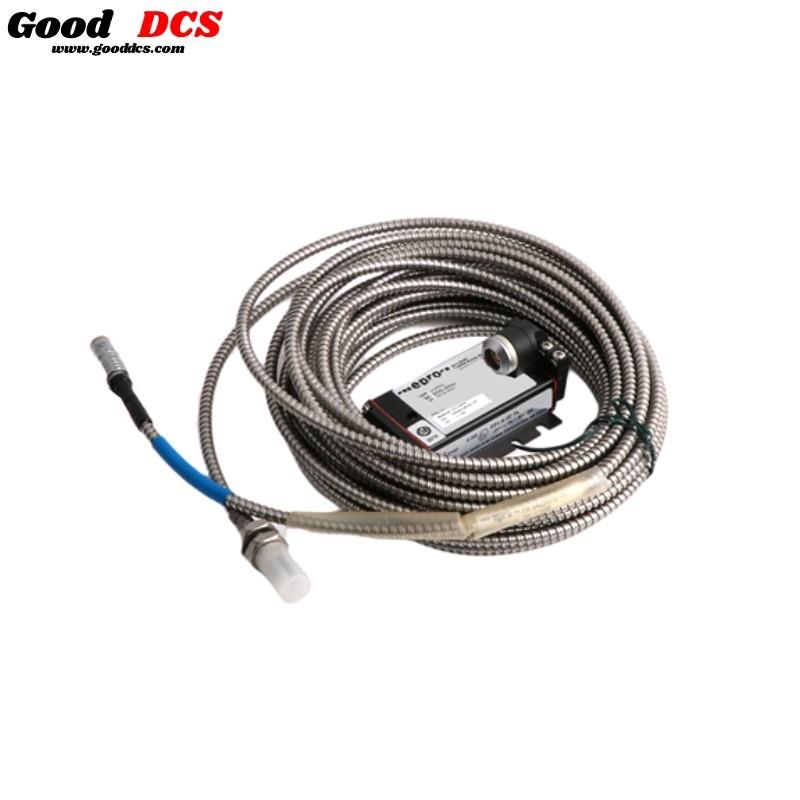

The Epro PR6423/000-131 is an 8mm eddy current sensor designed for non-contact measurement of radial and axial shaft displacement, position, eccentricity, and speed in critical turbomachinery applications. It is widely used in industries such as power generation, oil and gas, and manufacturing, where precise monitoring of rotating machinery is essential.
Key Parameters
| Parameter | Value |
|---|---|
| Sensor Tip Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ± 5% |
| Deviation from Best Fit Straight Line (DSL) | ± 0.025 mm (± 1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79″) |
| Target Material | 42CrMo4 (AISI/SAE 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | -35 to +180°C (-31 to 356°F) |
| Material | Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE, Connector: Brass, nickel-plated |
| Weight (Sensor with 1m Cable) | 0.1 kg (3.53 oz) |
Product Applications
- Steam, Gas, and Hydro Turbines: Monitoring shaft displacement and vibration.
- Compressors: Measuring axial and radial shaft positions.
- Gearboxes: Detecting eccentricity and speed variations.
- Pumps and Fans: Ensuring smooth operation by monitoring shaft dynamics.
Product Advantages
- High Precision: Offers accurate measurements with a deviation of only ± 0.025 mm.
- Durability: Constructed with high-quality materials like PEEK and stainless steel, ensuring long-term reliability.
- Wide Temperature Range: Operates effectively in extreme temperatures from -35°C to +180°C.
- Non-Contact Measurement: Reduces wear and tear, providing maintenance-free operation.
- Versatility: Suitable for various industrial applications, including hazardous areas with appropriate certifications.
Latest News Headline
“Epro PR6423/000-131 8mm Eddy Current Sensor Gains Popularity in Turbomachinery Monitoring Due to Its High Precision and Durability”
Recommended Related Models
| Model Number | Description | Key Parameters |
|---|---|---|
| PR6423/000-000 | 8mm Eddy Current Sensor, M10x1, No Armor, 25mm Sleeve, 4m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/010-000 | 8mm Eddy Current Sensor, 3/8″-24 UNF, No Armor, 25mm Sleeve, 4m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/000-131 | 8mm Eddy Current Sensor, M10x1, No Armor, 25mm Sleeve, 5m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/010-131 | 8mm Eddy Current Sensor, 3/8″-24 UNF, No Armor, 25mm Sleeve, 5m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/000-132 | 8mm Eddy Current Sensor, M10x1, No Armor, 25mm Sleeve, 8m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/010-132 | 8mm Eddy Current Sensor, 3/8″-24 UNF, No Armor, 25mm Sleeve, 8m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/000-133 | 8mm Eddy Current Sensor, M10x1, No Armor, 25mm Sleeve, 10m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/010-133 | 8mm Eddy Current Sensor, 3/8″-24 UNF, No Armor, 25mm Sleeve, 10m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/000-134 | 8mm Eddy Current Sensor, M10x1, No Armor, 25mm Sleeve, 15m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
| PR6423/010-134 | 8mm Eddy Current Sensor, 3/8″-24 UNF, No Armor, 25mm Sleeve, 15m Cable, Lemo | Sensor Tip: 8mm, Weight: 0.1 kg |
